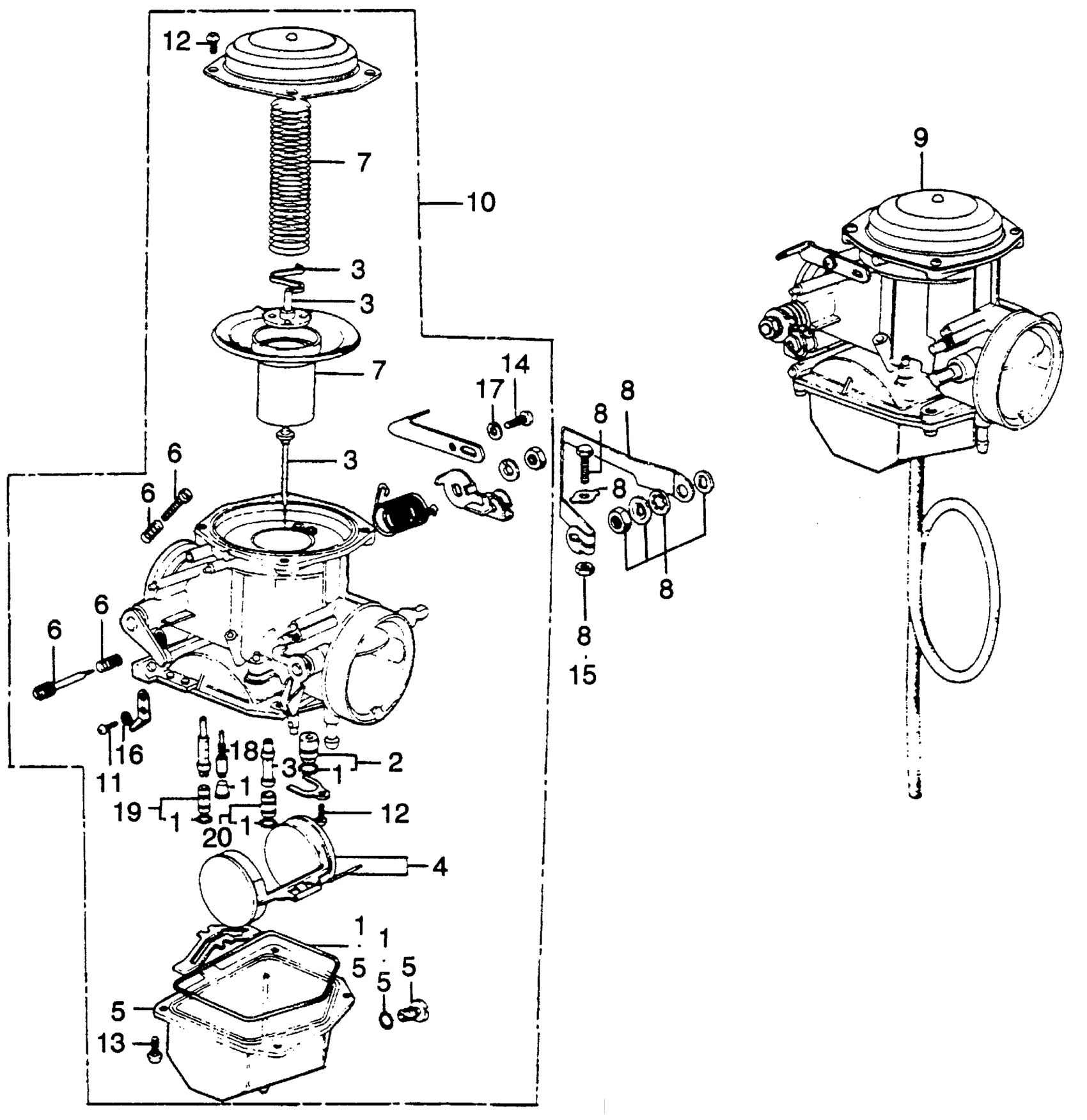

Honda CB350A MOTORCYCLE, JPN, VIN# CB350-1000001 CARBURETOR SET Diagram

#

Description
Price

1

GASKET SET | Use up to Engine SN 1065278

16010-286-004

Unavailable

1

GASKET SET | Use from Engine SN 1065279 This part replaces 16010-287-004.

16010-344-305

$18.37

1

GASKET SET | Use from Engine SN 1065279

16010-344-305

$18.37

2

VALVE SET, FLOAT

16011-287-004

Unavailable

3

NEEDLE SET, JET (NOT AVAILABLE) | Use up to Engine SN 1045164

16012-287-004

Unavailable

3

NEEDLE SET, JET (NOT AVAILABLE) | Use from Engine SN 1045165

16012-287-014

Unavailable

4

FLOAT SET (NOT AVAILABLE) | Use up to Engine SN 1065278 This part replaces 16013-286-004.

16013-551-004

Unavailable

4

FLOAT SET | Use from Engine SN 1065279

16013-286-014

$32.28

4

FLOAT SET (NOT AVAILABLE) | Use up to Engine SN 1065278

16013-551-004

Unavailable

5

CHAMBER SET, FLOAT (NOT AVAILABLE) | Use from Engine SN 1065279

16015-286-004

Unavailable

5

CHAMBER SET, FLOAT (NOT AVAILABLE) | Use up to Engine SN 1065278

16015-287-004

Unavailable

6

SCREW SET A (NOT AVAILABLE) | Use from Engine SN 1065279

16016-287-004

Unavailable

6

SCREW SET A | Use up to Engine SN 1065278

16016-287-610

Unavailable

7

PISTON SET, VACUUM (NOT AVAILABLE) | Use up to Engine SN 1045164

16022-287-004

Unavailable

7

PISTON SET, VACUUM (NOT AVAILABLE) | Use from Engine SN 1045165 to 1131734

16022-287-014

Unavailable

8

JOINT SET, CONNECTOR (NOT AVAILABLE)

16025-286-004

Unavailable

9

CARBURETOR ASSY., R. (NOT AVAILABLE) | Use up to Engine SN 1045164

16101-287-004

Unavailable

9

CARBURETOR ASSY., R. (NOT AVAILABLE) | Use from Engine SN 1045165 to 1065278 This part replaces 16101-287-014.

16101-287-054

Unavailable

9

CARBURETOR ASSY., R. (NOT AVAILABLE) This part replaces 16101-287-024.

16101-287-054

Unavailable

9

CARBURETOR ASSY., R. (NOT AVAILABLE) This part replaces 16101-287-034.

16101-287-054

Unavailable

9

CARBURETOR ASSY., R. (NOT AVAILABLE) This part replaces 16101-287-044.

16101-287-054

Unavailable

9

CARBURETOR ASSY., R. (NOT AVAILABLE)

16101-287-054

Unavailable

10

CARBURETOR ASSY., L. (NOT AVAILABLE) | Use up to Engine SN 1045164

16102-287-004

Unavailable

10

CARBURETOR ASSY., L. (NOT AVAILABLE) | Use from Engine SN 1045165 to 1065278 This part replaces 16102-287-014.

16102-287-054

Unavailable

10

CARBURETOR ASSY., L. (NOT AVAILABLE) This part replaces 16102-287-024.

16102-287-054

Unavailable

10

CARBURETOR ASSY., L. (NOT AVAILABLE) This part replaces 16102-287-034.

16102-287-054

Unavailable

10

CARBURETOR ASSY., L. (NOT AVAILABLE) This part replaces 16102-287-044.

16102-287-054

Unavailable

10

CARBURETOR ASSY., L. (NOT AVAILABLE)

16102-287-054

Unavailable

11

SCREW, PAN (3X7) (NOT AVAILABLE)

93500-03007-0A

Unavailable

12

SCREW, PAN (4X8)

93500-04008-0A

$1.49

13

SCREW, PAN (4X10)

93500-04010-0A

$1.49

14

SCREW, PAN (5X12)

93500-05012-0A

$1.49

15

NUT, HEX. (5MM)

94001-05000-0S

$2.74

16

WASHER, SPRING (3MM)

94111-03000

$1.49

17

WASHER, SPRING (5MM)

94111-05000

$1.49

18

JET, SLOW (#35) | Use from Engine SN 1045165

99124-286-0351

Unavailable

18

JET, SLOW (#38) | Use up to Engine SN 1045164

99124-286-0380

Unavailable

19

JET SET, MAIN (#60) | Use up to Engine SN 1045164

99201-601-0600

Unavailable

19

JET SET, MAIN (#70) | Use from Engine SN 1045165

99201-601-0700

Unavailable

20

JET SET, SECONDARY MAIN (#100) | Use from Engine SN 1045165 to 1065278

99202-601-1000

Unavailable

20

JET SET, SECONDARY MAIN (#105) | Use from Engine SN 1065279

99202-601-1050

$4.70

20

JET SET, SECONDARY MAIN (#115) (NOT AVAILABLE) | Use up to Engine SN 1045164

99202-601-1150

Unavailable
