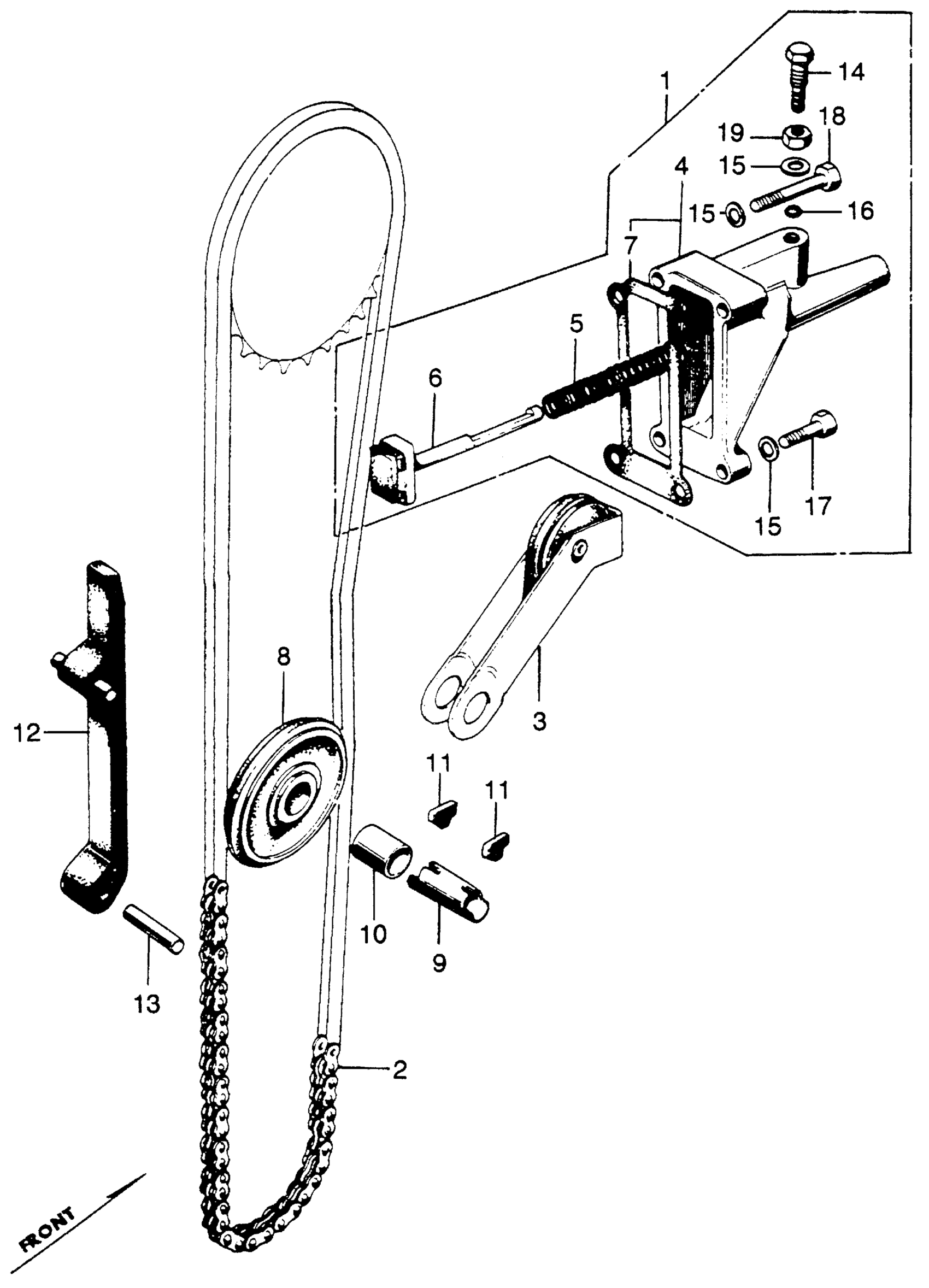

Honda CB350A MOTORCYCLE, JPN, VIN# CB350-1000001 CAM CHAIN TENSIONER Diagram

#

Description
Price

1

CHAIN KIT, CAM (NOT AVAILABLE) | Use from Engine SN 1079079

06141-286-000

Unavailable

2

CHAIN, CAM This part replaces 14401-286-003.

14401-410-003

Unavailable

2

CHAIN, CAM

14401-410-003

Unavailable

3

TENSIONER, CAM CHAIN | Use up to Engine SN 1089815 This part replaces 14500-286-030.

14500-312-000

Unavailable

3

TENSIONER, CAM CHAIN | Use up to Engine SN 1089815 This part replaces 14500-286-040.

14500-312-000

Unavailable

3

TENSIONER, CAM CHAIN | Use up to Engine SN 1131116 This part replaces 14500-286-040.

14500-312-000

Unavailable

3

TENSIONER, CAM CHAIN | Use up to Engine SN 1089815

14500-312-000

Unavailable

3

TENSIONER, CAM CHAIN | Use up to Engine SN 1131116

14500-312-000

Unavailable

4

HOLDER, CAM CHAIN TENSIONER | Use up to Engine SN 1079078

14530-286-040

Unavailable

5

SPRING, CAM CHAIN TENSIONER (NOT AVAILABLE) | Use up to Engine SN 1031509 This part replaces 14541-286-010.

14541-286-040

Unavailable

5

SPRING, CAM CHAIN TENSIONER (NOT AVAILABLE) | Use up to Engine SN 1079078 This part replaces 14541-286-020.

14541-286-040

Unavailable

5

SPRING, CAM CHAIN TENSIONER (NOT AVAILABLE)

14541-286-040

Unavailable

6

BAR, CAM CHAIN TENSIONER PUSH (NOT AVAILABLE)

14550-286-000

Unavailable

7

GASKET This part replaces 14592-286-310.

14592-286-306

Unavailable

8

ROLLER, CAM CHAIN GUIDE | Use up to Engine SN 1131116 This part replaces 14601-286-010.

14601-312-000

$35.03

8

ROLLER, CAM CHAIN GUIDE | Use up to Engine SN 1131116

14601-312-000

$35.03

9

PIN, CAM CHAIN ROLLER (NOT AVAILABLE)

14605-286-020

Unavailable

10

COLLAR, CAM CHAIN ROLLER (NOT AVAILABLE)

14606-286-000

Unavailable

11

RUBBER, CAM CHAIN ROLLER PIN

14607-286-000

$13.44

12

GUIDE, CAM CHAIN | Use up to Engine SN 1092261 This part replaces 14611-286-020.

14611-312-000

Unavailable

12

GUIDE, CAM CHAIN | Use up to Engine SN 1092261 This part replaces 14611-286-030.

14611-312-000

Unavailable

12

GUIDE, CAM CHAIN | Use up to Engine SN 1131119 This part replaces 14611-286-030.

14611-312-000

Unavailable

12

GUIDE, CAM CHAIN | Use up to Engine SN 1092261

14611-312-000

Unavailable

12

GUIDE, CAM CHAIN | Use up to Engine SN 1131119

14611-312-000

Unavailable

13

PIN, CAM CHAIN GUIDE (NOT AVAILABLE) | Use up to Engine SN 1092261

14612-286-000

Unavailable

14

BOLT, TENSIONER ADJUSTING (NOT AVAILABLE) | Use from Engine SN 1079079

90016-286-000

Unavailable

15

WASHER A (6MM) | Use up to Engine SN 1079078

90478-700-000

$1.49

15

WASHER, PLAIN (6MM) | Use up to Engine SN 1079078 This part replaces 94101-06000.

94101-06800

$1.49

15

WASHER, PLAIN (6MM) | Use from Engine SN 1079079 This part replaces 94101-06000.

94101-06800

$1.49

15

WASHER, PLAIN (6MM) | Use up to Engine SN 1079078 This part replaces 94101-06080.

94101-06800

$1.49

15

WASHER, PLAIN (6MM) | Use from Engine SN 1079079 This part replaces 94101-06080.

94101-06800

$1.49

15

WASHER, PLAIN (6MM) | Use up to Engine SN 1079078

94101-06800

$1.49

15

WASHER, PLAIN (6MM) | Use from Engine SN 1079079

94101-06800

$1.49

16

O-RING (6X1.7) | Use from Engine SN 1079079

91317-171-003

$2.92

16

O-RING (6X1.7) (ARAI) | Use from Engine SN 1079079 This part replaces 91317-703-000.

91317-171-003

$2.92

17

BOLT, HEX. (6X25) | Use up to Engine SN 1079078 This part replaces 92000-06025.

92101-06025-0A

$1.62

17

BOLT, HEX. (6X25) | Use from Engine SN 1079079 This part replaces 92000-06025.

92101-06025-0A

$1.62

17

BOLT, HEX. (6X25) | Use up to Engine SN 1079078

92101-06025-0A

$1.62

17

BOLT, HEX. (6X25) | Use from Engine SN 1079079

92101-06025-0A

$1.62

18

BOLT, HEX. (6X35) | Use from Engine SN 1079079 This part replaces 92000-06036.

92201-06035-0A

$1.75

18

BOLT, HEX. (6X35) | Use from Engine SN 1079079 This part replaces 92200-06035.

92201-06035-0A

$1.75

18

BOLT, HEX. (6X35) | Use from Engine SN 1079079

92201-06035-0A

$1.75

19

NUT, HEX. (8MM) | Use from Engine SN 1079079

94002-08000-0S

$1.49
