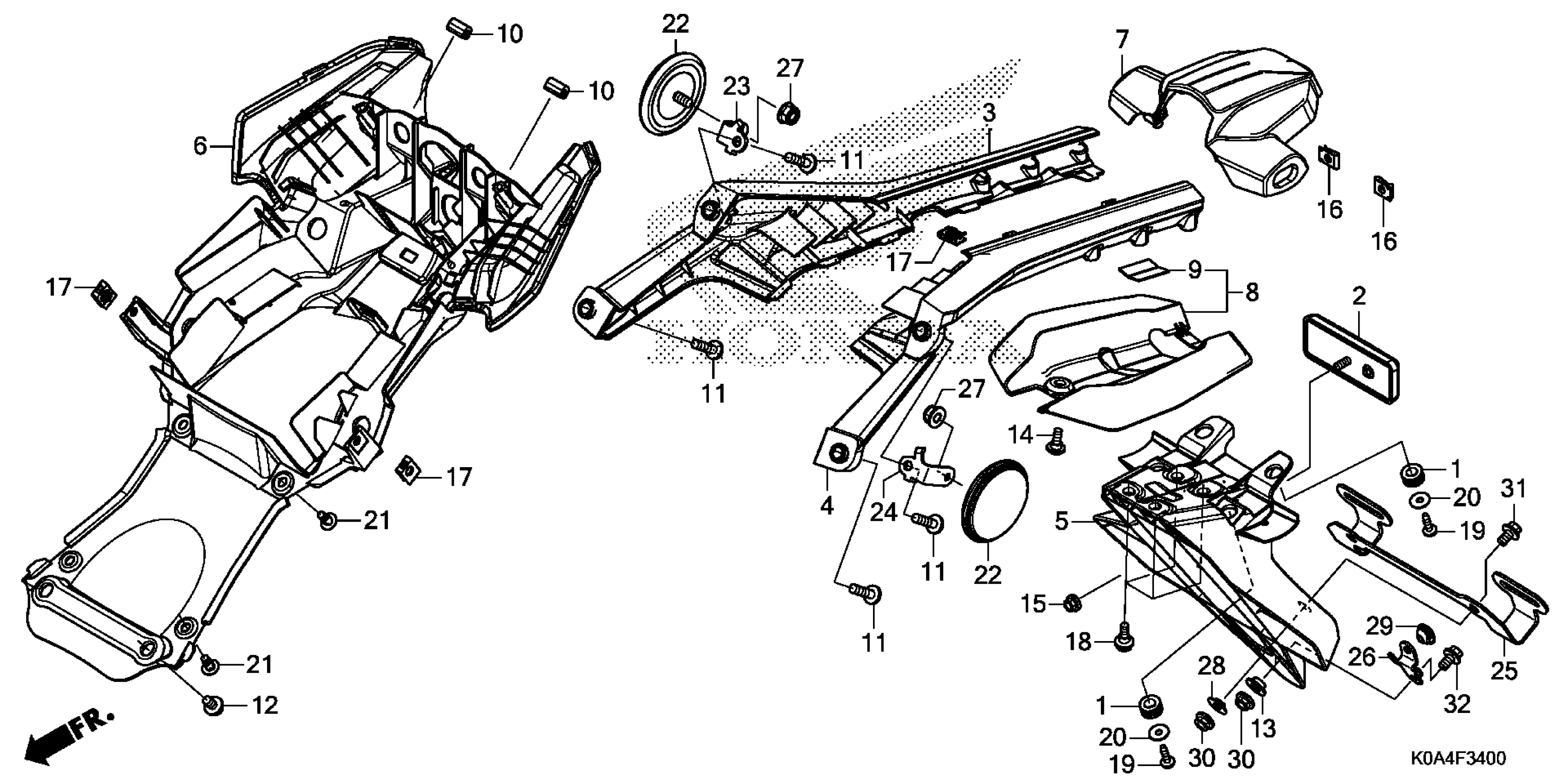

Honda CB300RAC (19) MOTORCYCLE, THA, VIN# MLHNC550-K5000001 TO MLHNC550-K5099999 REAR FENDER Diagram

RUBBER, MOUNTING

19639-GBL-000

$0.99

REFLECTOR, REFLEX

33741-KWN-901

$9.16

STAY, R. RR. FENDER

80111-K94-T00

$80.41

STAY, L. RR. FENDER

80112-K94-T00

$81.99

FENDER A, RR.

80121-K94-T00

$10.72

FENDER B, RR.

80131-K0A-E10

$40.31

COVER, LICENSE LIGHT

80141-K94-T00

$8.19

COVER SET, RR. FENDER (LOWER)

80150-K0A-E10

$13.84

RUBBER, CUSHION

80152-K0A-E10

$2.34

RUBBER, TAIL COVER

83515-KPH-700

$1.56

BOLT, SPECIAL (6X25)

90120-K26-900

$0.85

SCREW, PAN (6X10)

90132-KPP-T00

$0.79

SCREW, PAN (5X14)

90134-KPP-T00

Unavailable

NUT, U (5MM)

90301-KWN-901

$0.62

NUT, SPRING (4MM)

90302-SA4-003

$5.04

NUT, CLIP (5MM)

90677-KAN-T00

Unavailable

SCREW, PAN (5X13.5)

91509-KWA-940

$1.24

SCREW, TAPPING (4X16)

93903-24480

$0.84

WASHER, PLAIN (4MM)

94103-04700

$0.87

RIVET, PUSH (6MM)

90116-K0A-E11

$1.19

REFLECTOR, RR. REFLEX (RED)

33741-HB9-641

$12.18

STAY, R. REFLECTOR

80101-K0A-A00

$13.82

STAY, L. REFLECTOR

80102-K0A-A00

$13.82

NUT, U (6MM) NUT, FLANGE (6MM)

90301-473-003

$3.89
