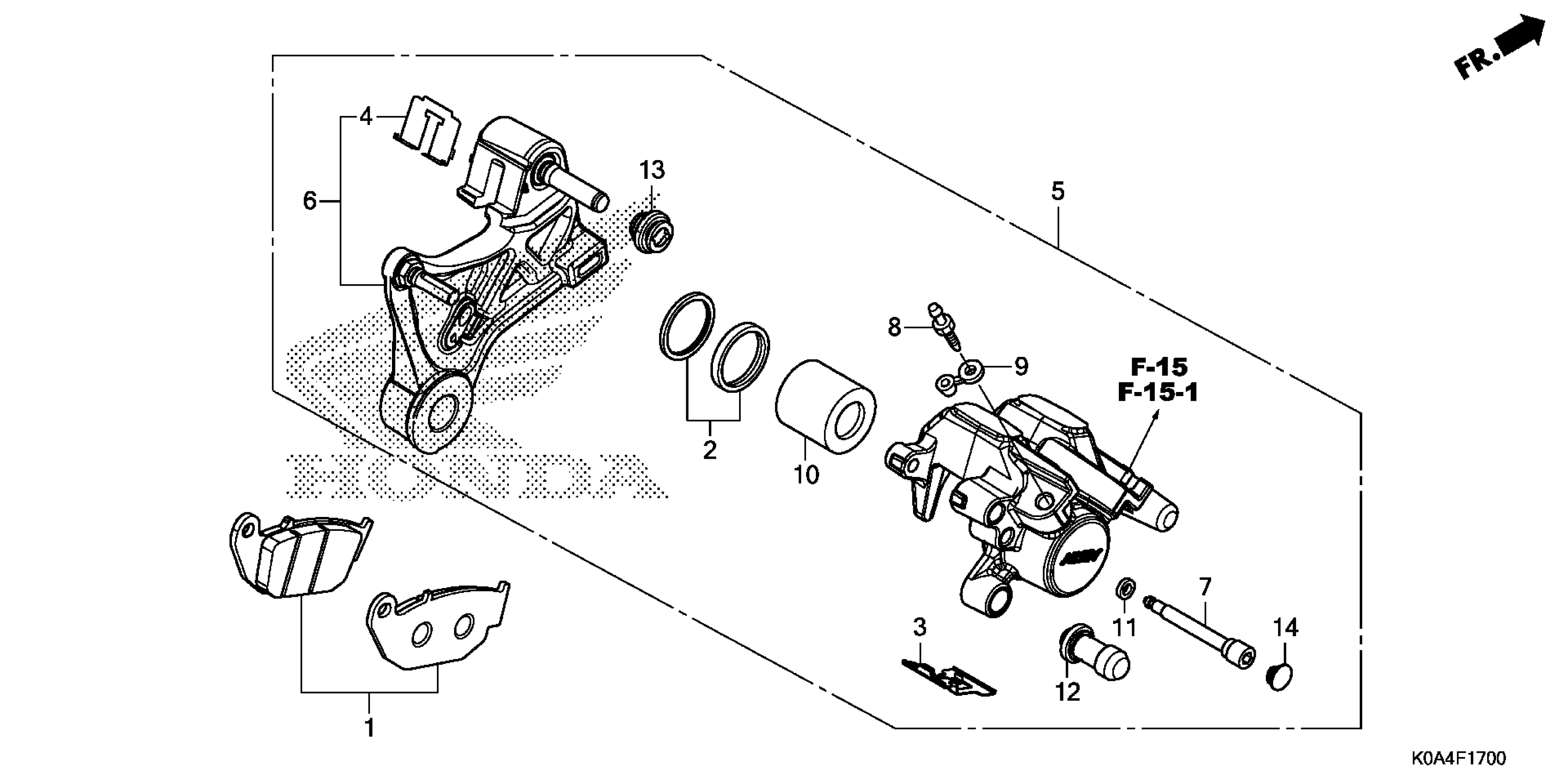

Honda CB300RAC (19) MOTORCYCLE, THA, VIN# MLHNC550-K5000001 TO MLHNC550-K5099999 REAR BRAKE CALIPER Diagram

#

Description
Price

1

PAD SET, RR.

06435-KSP-B02

$16.18

2

SEAL SET, PISTON

06451-961-405

$6.56

3

SPRING, PAD (NISSIN)

43108-KSP-B51

$4.68

4

RETAINER

43112-KZZ-901

$7.54

5

CALIPER SUB-ASSY., RR. (NISSIN)

43150-K94-T01

$129.39

6

BRACKET SUB-ASSY., RR.

43190-K94-T01

$66.23

7

PIN, HANGER

43215-KGH-901

$2.92

8

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

9

CAP, BLEEDER

43353-461-771

$5.05

10

PISTON

45107-MA6-006

$41.70

11

RING, STOPPER

45111-MAJ-G41

$3.80

12

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

13

BOOT B

45133-MA3-006

$5.46

14

PLUG, PIN

45203-MCC-006

$2.89
