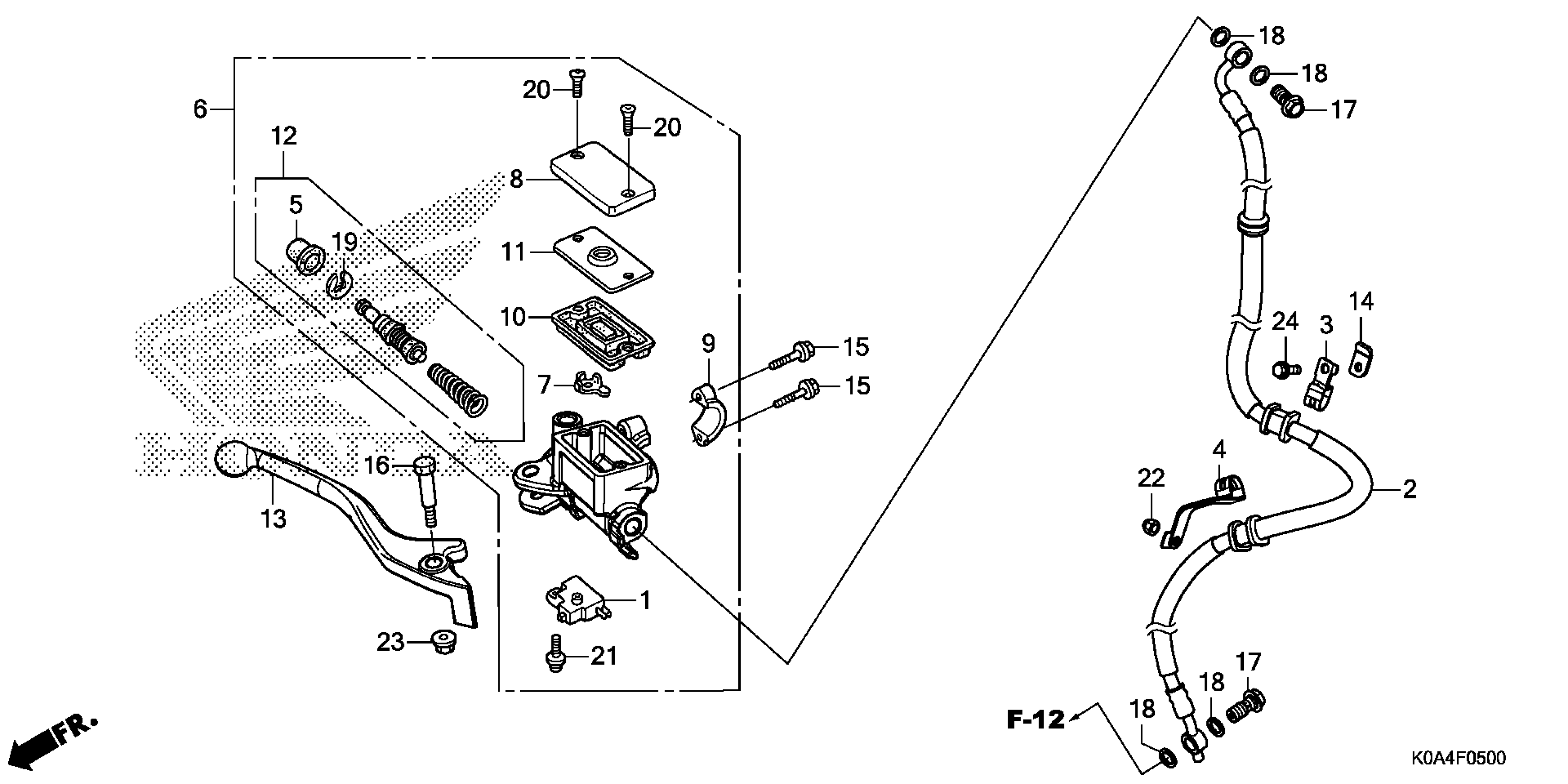

Honda CB300RAC (19) MOTORCYCLE, THA, VIN# MLHNC550-K5000001 TO MLHNC550-K5099999 FRONT BRAKE MASTER CYLINDER (1) Diagram

SWITCH ASSY., FR. STOP

35340-MGS-D31

$16.99

HOSE, FR. BRAKE

45126-K0A-A01

$27.97

CLAMP, FR. BRAKE HOSE

45155-K94-T00

$3.09

CLAMP, FR. BRAKE HOSE (LOWER)

45156-K94-T00

$3.19

BOOT

45504-410-003

$11.17

MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) (NISSIN)

45510-K26-305

$100.43

MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) (NISSIN) This part replaces 45510-K26-901.

45510-K26-305

$100.43

PROTECTOR

45512-MA6-006

$4.09

CAP, MASTER CYLINDER

45513-HA2-006

$25.29

HOLDER, MASTER CYLINDER

45517-166-006

$12.44

DIAPHRAGM

45520-GE2-006

$8.57

PLATE, DIAPHRAGM

45521-K21-901

$2.10

MASTER CYLINDER SET

45530-471-831

Unavailable

LEVER, R. HANDLEBAR (COO)

53175-K26-305

Unavailable

LEVER, R. HANDLEBAR (COO) This part replaces 53175-K26-901.

53175-K26-305

Unavailable

STAY, HEADLIGHT

61361-K94-T00

$2.35

BOLT, FLANGE (6X22)

90013-GHB-660

$2.15

BOLT, HANDLE LEVER PIVOT

90114-KGH-900

$0.90

BOLT, OIL (10X22) (NISSIN)

90145-KPH-B30

$1.66

WASHER, OIL BOLT

90545-300-000

$6.56

CIRCLIP

90651-MA5-671

$2.38

SCREW, FLAT (4X12)

93600-04012-0G

$0.84

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.84

SCREW-WASHER (4X12)

93893-04012-07

$1.24

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.24

NUT, CAP (6MM)

94021-06070-0S

$1.50

NUT, FLANGE (6MM)

94050-06000

$0.60

BOLT, FLANGE (6X14)

96001-06014-07

$1.10
