Description

Price

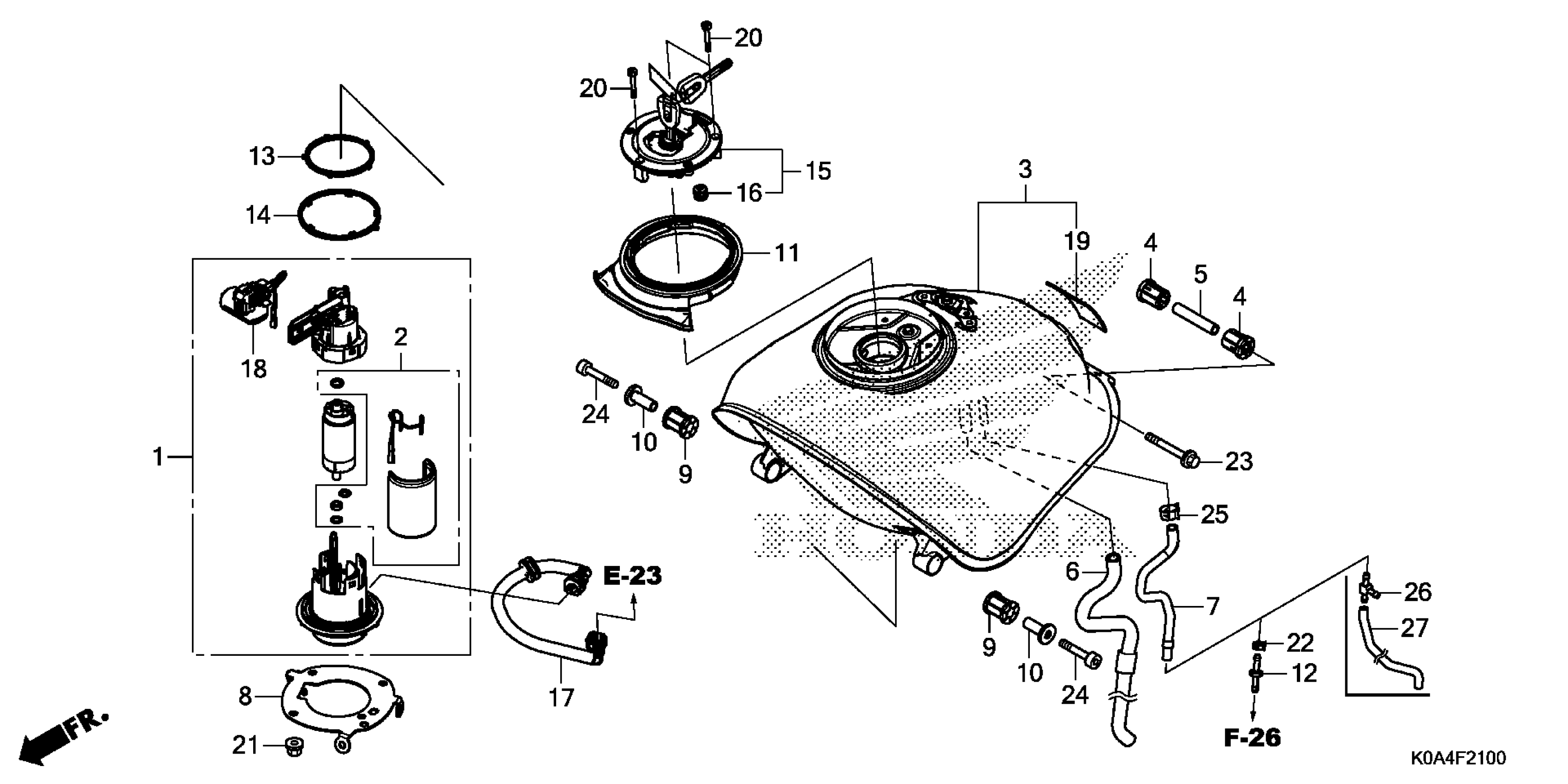

1

PUMP ASSY., FUEL (MSDS)

16700-K94-T01

$144.65

2

FILTER SET

16707-K94-T01

$22.94

3

TANK ASSY., FUEL

17500-K0A-E10

$382.74

4

CUSHION, RR. FUEL TANK PIVOT

17506-K94-T00

$2.47

5

COLLAR, TANK SET

17507-KZZ-900

$1.43

6

TUBE, FUEL DRAIN

17525-K94-T00

$11.46

7

TUBE A, CHARGE

17526-K0A-A00

$23.47

8

PLATE, SETTING

17527-K0A-E10

$9.04

9

RUBBER, FR. TANK MOUNTING

17534-K94-T00

$2.47

10

COLLAR

17538-KZZ-900

$2.16

11

SEAL, FUEL TANK

17545-K94-T00

$8.06

12

JOINT, FUEL TUBE

17561-K98-E00

$2.24

13

GASKET, FUEL PUMP

17572-GHB-613

$15.65

14

DUST SEAL

17573-KPN-A71

$11.49

15

CAP COMP This part replaces 17620-MJE-D02.

17620-MJE-D04

$205.01

16

SEAL, BREATHER This part replaces 17621-MGP-D61.

17621-MGP-D62

$4.90

17

HOSE, FUEL FEED

17650-K0A-E11

$39.07

18

FUEL UNIT

37800-K94-T01

$37.19

19

RUBBER, PROTECTOR

81257-K26-B00

$2.21

20

BOLT, SOCKET (4X24) (SUS)

90110-MGP-D60

$3.11

21

NUT, FLANGE (6MM)

94050-06000

$0.60

22

CLAMP, TUBE (D8)

95002-40800-08

$2.07

23

BOLT, FLANGE (6X65)

96001-06065-00

Unavailable

24

BOLT, SOCKET (6X40)

96600-06040-08

$1.18

25

CLAMP, TUBE (D10)

95002-41000-08
