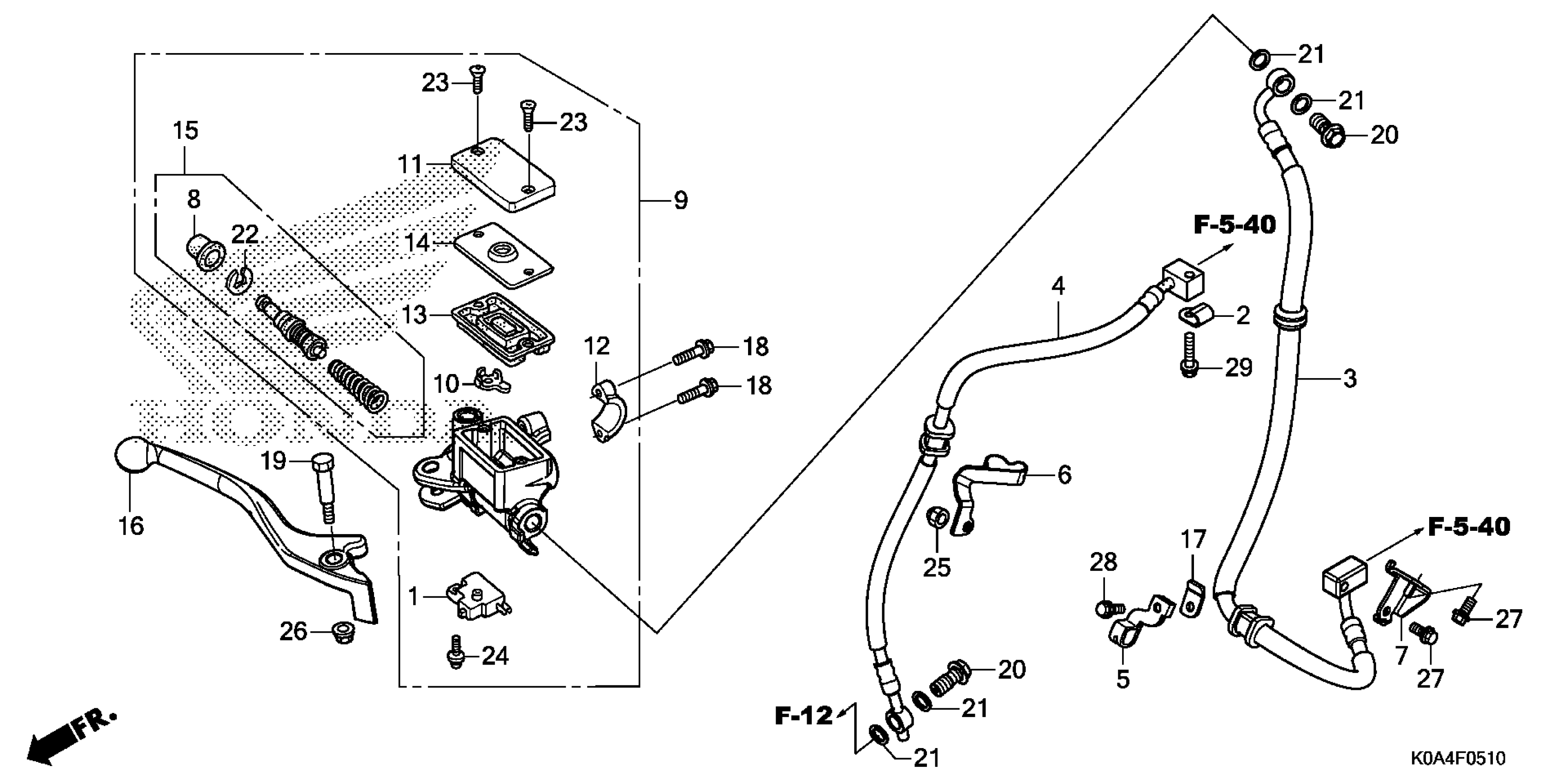

Honda CB300RAAC (20) MOTORCYCLE, THA, VIN# MLHNC555-L5000001 FRONT BRAKE MASTER CYLINDER (2) Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MGS-D31

$18.50

2

CLAMP, SENSOR WIRE

38515-K94-T10

$1.49

3

HOSE A, FR. BRAKE

45125-K0A-E11

$39.36

4

HOSE B, FR. BRAKE

45126-K94-T11

$45.44

5

CLAMP, FR. BRAKE HOSE

45155-K94-T10

$4.51

6

CLAMP, FR. BRAKE HOSE (LOWER)

45156-K94-T10

$5.20

7

STAY, FR. BRAKE HOSE

45157-K94-T10

$6.33

8

BOOT

45504-410-003

$12.16

9

MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) (NISSIN)

45510-K26-305

$112.68

9

MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) (NISSIN) This part replaces 45510-K26-901.

45510-K26-305

$112.68

10

PROTECTOR

45512-MA6-006

$4.28

11

CAP, MASTER CYLINDER

45513-HA2-006

$27.55

12

HOLDER, MASTER CYLINDER

45517-166-006

$13.55

13

DIAPHRAGM

45520-GE2-006

$9.58

14

PLATE, DIAPHRAGM

45521-K21-901

$2.34

15

MASTER CYLINDER SET

45530-471-831

$40.86

16

LEVER, R. HANDLEBAR (COO)

53175-K26-305

$16.98

16

LEVER, R. HANDLEBAR (COO) This part replaces 53175-K26-901.

53175-K26-305

$16.98

17

STAY, HEADLIGHT

61361-K94-T00

$2.62

18

BOLT, FLANGE (6X22)

90013-GHB-660

$2.33

19

BOLT, HANDLE LEVER PIVOT

90114-KGH-900

$1.49

20

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.54

21

WASHER, OIL BOLT

90545-300-000

$3.99

22

CIRCLIP

90651-MA5-671

$2.66

23

SCREW, FLAT (4X12)

93600-04012-0G

$1.49

23

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$1.49

24

SCREW-WASHER (4X12)

93893-04012-07

$1.49

24

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.49

25

NUT, CAP (6MM)

94021-06070-0S

$1.62

26

NUT, FLANGE (6MM)

94050-06000

$1.49

27

BOLT, FLANGE (6X12) (L. SIDE ONLY)

96001-06012-07

$1.72

28

BOLT, FLANGE (6X14)

96001-06014-07

$1.49

29

BOLT, FLANGE (6X25) BOLT, FLANGE (6X22)

96001-06025-07

$1.49
