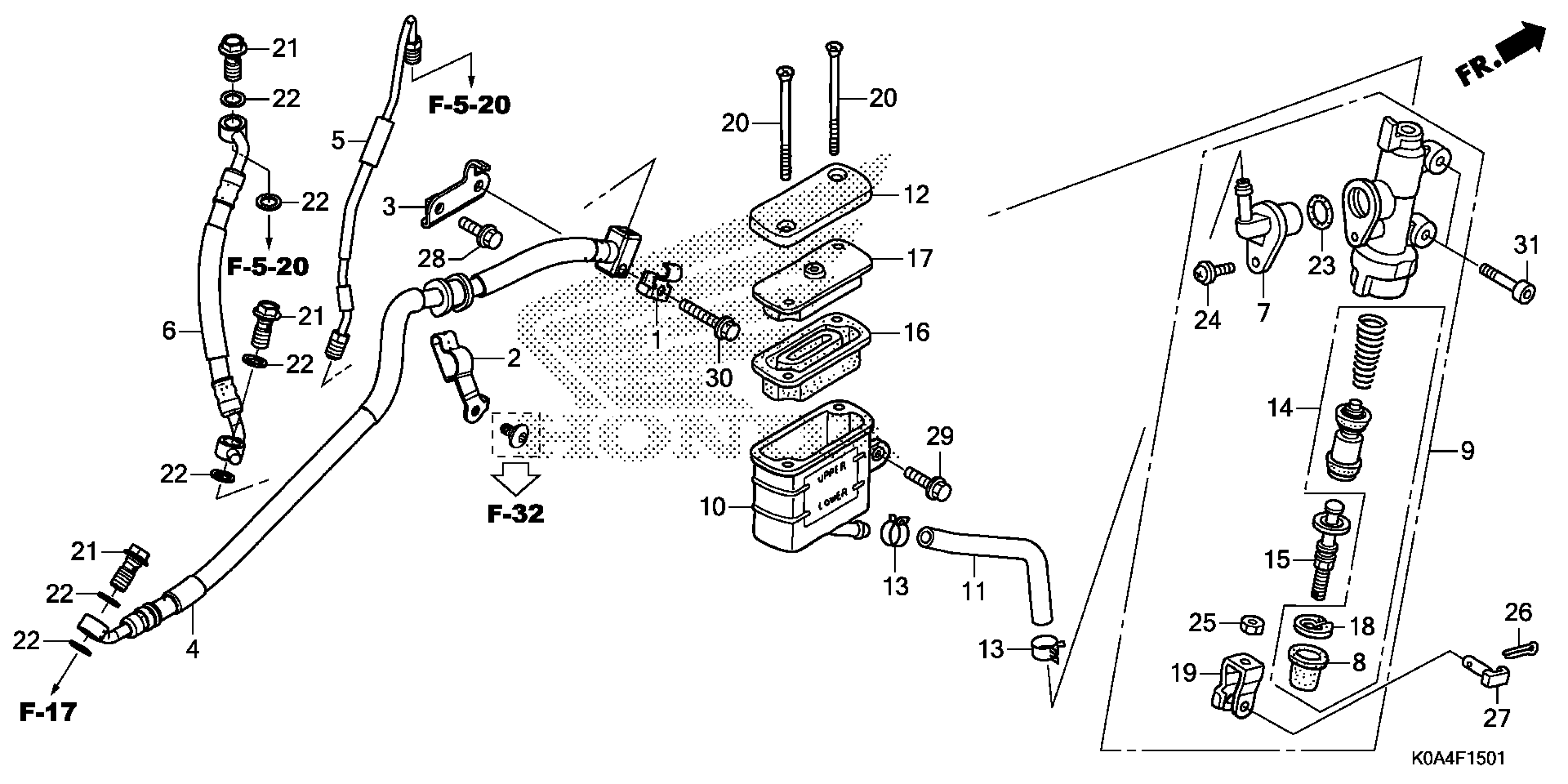

Honda CB300RAAC (19) MOTORCYCLE, THA, VIN# MLHNC554-K5000001 TO MLHNC554-K5099999 REAR BRAKE MASTER CYLINDER (2) Diagram

#

Description
Price

1

CLAMP B, SENSOR WIRE

38516-K94-T10

$1.87

2

CLAMP A, RR. BRAKE HOSE

43156-K94-T10

$3.26

3

STAY, RR. BRAKE HOSE

43159-K94-T10

$4.71

4

HOSE A, RR. BRAKE

43310-K0A-E11

$31.93

5

PIPE, RR. BRAKE

43312-K0A-E10

$12.78

6

HOSE B, RR. BRAKE

43314-K0A-E11

$18.57

7

CONNECTOR

43503-MR7-006

$12.51

8

BOOT

43504-MB2-006

$9.01

9

MASTER CYLINDER SUB-ASSY., RR. BRAKE (NISSIN)

43510-K45-N01

$92.58

10

CUP, OIL

43511-KVS-F31

$6.64

11

HOSE, RR. MASTER CYLINDER

43512-K94-T01

$11.43

12

CAP, MASTER CYLINDER

43513-KTY-C01

$5.46

13

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$11.77

14

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MJ6-315

$40.74

15

ROD, PUSH

43530-KV3-701

$18.06

16

DIAPHRAGM

45520-GW0-911

$6.78

17

PLATE, DIAPHRAGM

45521-GW0-911

$5.34

18

CIRCLIP

46182-MEL-D21

$1.77

19

JOINT, BRAKE ROD

46504-KV6-702

$7.30

20

SCREW, FLAT (4X45)

90140-KZZ-901

$5.67

21

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.82

22

WASHER, OIL BOLT

90545-300-000

$3.72

23

O-RING (14.8X2.4)

91212-422-006

Unavailable

24

SCREW-WASHER (4X12)

93893-04012-07

$1.22

24

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.22

25

NUT, HEX. (8MM)

94002-08000-0S

$1.19

26

PIN, SPLIT (2.0)

94201-20151

$0.48

27

PIN D, JOINT

95015-54000

$3.95

28

BOLT, FLANGE (6X12) (L. SIDE ONLY)

96001-06012-07

Unavailable

29

BOLT, FLANGE (6X14)

96001-06014-00

$1.64

30

BOLT, FLANGE (6X25) BOLT, FLANGE (6X22)

96001-06025-07

Unavailable

31

BOLT, SOCKET (6X20)

96600-06020-08

$11.06
