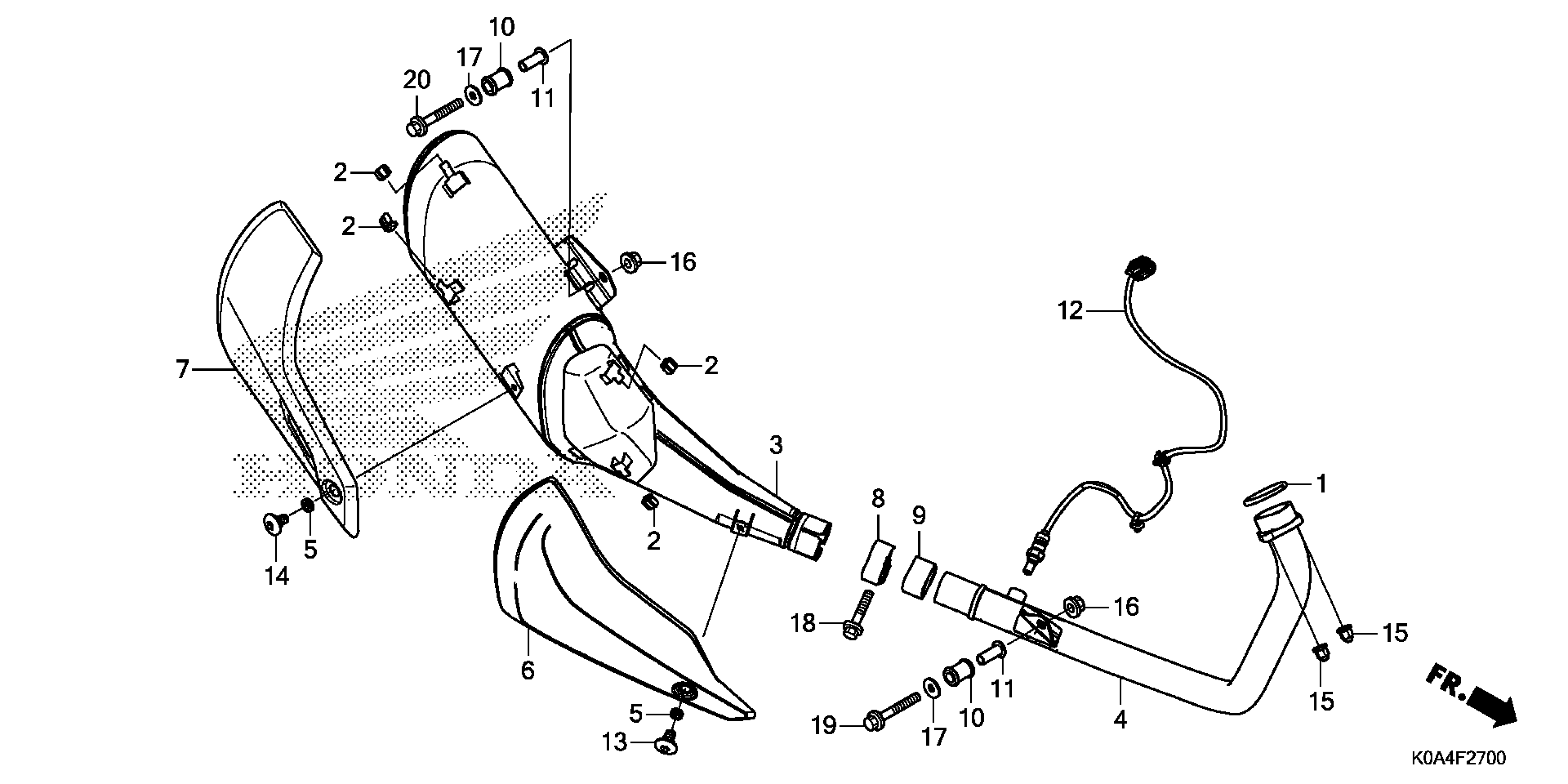

Honda CB300RAAC (19) MOTORCYCLE, THA, VIN# MLHNC554-K5000001 TO MLHNC554-K5099999 MUFFLER Diagram

GASKET, EX. PIPE

18291-MEB-670

$4.92

RUBBER, PROTECTOR GASKET

18293-MCA-A20

$2.05

MUFFLER

18310-K0A-E10

$1,213.97

PIPE, EX.

18320-K0A-E10

$126.74

RUBBER, PROTECTOR MOUNTING

18345-MBT-610

$2.18

COVER A, MUFFLER

18355-K0A-E10

$153.79

COVER B, MUFFLER

18356-K0A-E10

$73.49

BAND, MUFFLER

18373-K33-D00

$19.75

GASKET, MUFFLER

18392-KYJ-901

$7.01

RUBBER, MUFFLER MOUNTING

18421-K75-A50

$6.30

COLLAR, MUFFLER MOUNTING This part replaces 18422-KAF-700.

18422-MAL-600

$5.92

COLLAR, MUFFLER MOUNTING

18422-MAL-600

$5.92

SENSOR, OXYGEN

36532-K0A-E11

$144.25

SCREW, PAN (6X12)

90113-KTA-920

$2.20

SCREW, PAN (6X12)

90115-K87-A00

$1.49

NUT, HEX. CAP (8MM)

90304-KPH-700

$1.75

NUT, FLANGE (8MM) NUT, FLANGE (10MM)

94050-08000

$1.49

WASHER, PLAIN (8MM)

94103-08000

$1.49

BOLT, FLANGE (8X38)

95701-08038-02

$4.37

BOLT, FLANGE (8X50)

95701-08050-00

$2.28

BOLT, FLANGE (8X50)

95801-08050-00

$2.98
