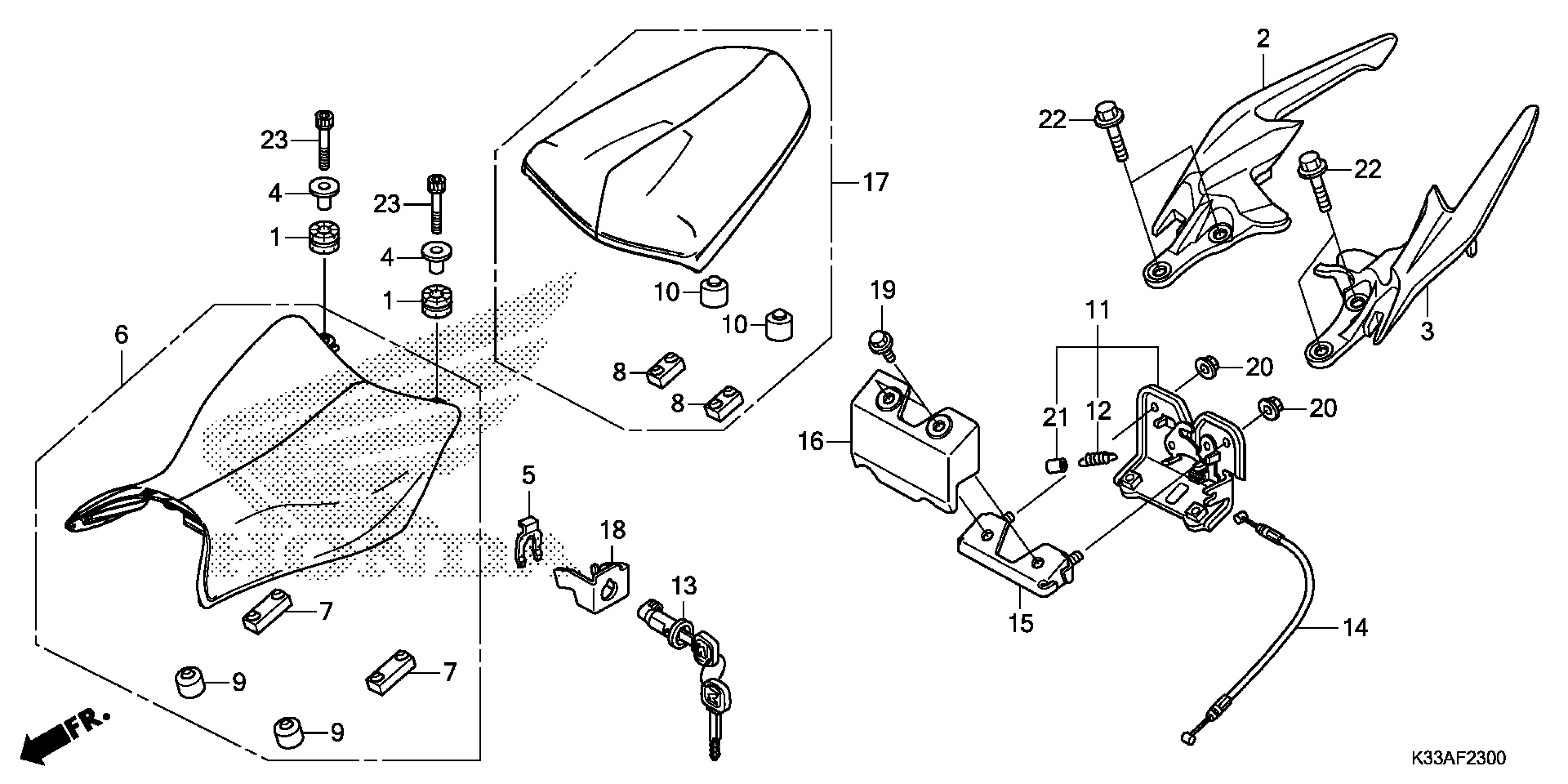

Honda CB300FAC (17) MOTORCYCLE, THA, VIN# MLHNC521-H5300001 TO MLHNC521-H5399999 SEAT Diagram

#

Description
Price

1

RUBBER A, TAILLIGHT MOUNTING

33705-KW7-900

$2.20

2

GRIP, R. RR. *NH303M* (MAT AXIS GRAY METALLIC)

50315-K33-D00ZA

$34.03

3

GRIP, L. RR. *NH303M* (MAT AXIS GRAY METALLIC)

50325-K33-D00ZA

$34.29

4

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.22

4

COLLAR, FR. FENDER (WHITE) (FOR RR.)

61104-428-010

$4.22

4

COLLAR, FR. FENDER (BLACK) (FOR RR.)

61104-428-730

$3.90

5

SPRING, LOCK KEY SETTING

75581-GN8-920

$4.47

6

SEAT, SINGLE (TYPE1)

77100-K33-D00ZA

$75.65

7

RUBBER B, SEAT SETTING

77205-286-000

$4.92

8

RUBBER, SEAT SETTING

77205-KPP-T00

$1.88

9

RUBBER, SEAT CUSHION

77206-KPP-T00

$3.12

10

RUBBER, SEAT CUSHION

77207-KYJ-900

$3.96

11

LOCK, SEAT

77220-K33-D00

$17.23

12

SPRING, SEAT LOCK

77234-GN2-000

$3.66

13

KEY, SEAT LOCK

77239-KVB-900

$42.85

14

CABLE, SEAT LOCK

77240-KYJ-900

$3.10

15

COVER, SEAT LOCK

77250-K33-D01

$17.28

16

GUARD, SEAT LOCK

77260-K33-D00

$6.59

17

SEAT, PILLION

77300-K33-D00

$75.14

18

STAY, SEAT LOCK CABLE

77582-KPP-T00

$2.70

19

PIVOT, SHIFT DRUM STOPPER ARM

90023-MGZ-J00

$0.54

20

NUT, FLANGE (6MM)

94050-06080

$0.59

21

TUBE, VINYL (8X9X20) (95003-21001-10M)

95003-21002-10

$0.61

22

BOLT, FLANGE (8X20)

95701-08020-00

$1.70

23

BOLT, SOCKET (6X25)

96600-06025-08

$1.26
