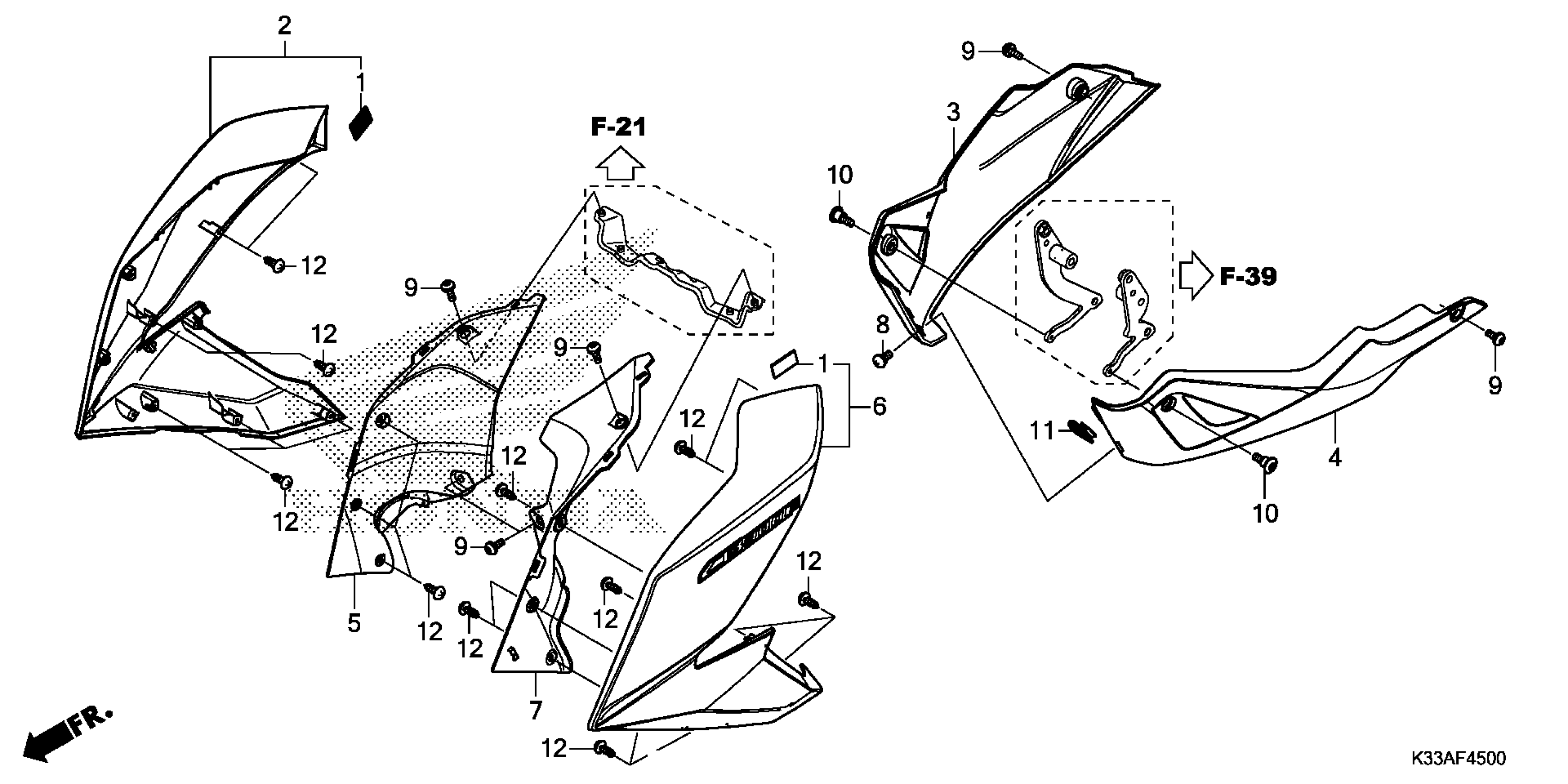

Honda CB300FAC (16) MOTORCYCLE, THA, VIN# MLHNC521-G5200001 TO MLHNC521-G5299999 SHROUD@UNDER COWL Diagram

FASTENER, DUAL LOCK (10X20) (A)

17580-K33-700

$1.26

SHROUD SET, R. *NH436M* (WL) (MAT GUNPOWDER BLACK METALLIC)

64300-K33-950ZC

$90.62

COWL, R. (LOWER)

64310-K33-700

$29.25

COWL, L. (LOWER)

64320-K33-700

$26.72

SHROUD, R. (INNER)

64336-K33-700

$25.86

SHROUD SET, L. *NH436M* (WL) (MAT GUNPOWDER BLACK METALLIC)

64400-K33-950ZC

$90.93

SHROUD, L. (INNER)

64436-K33-700

$25.32

SCREW, VISOR SPECIAL SETTING

90115-KPP-860

$0.62

SCREW, PAN (6X10)

90132-KPP-T00

$0.78

SCREW, PAN (5X14)

90134-KPP-T00

Unavailable

NUT, CLIP (5MM)

90677-KAN-T00

Unavailable

SCREW, TAPPING (4X12)

93903-24380

Unavailable
