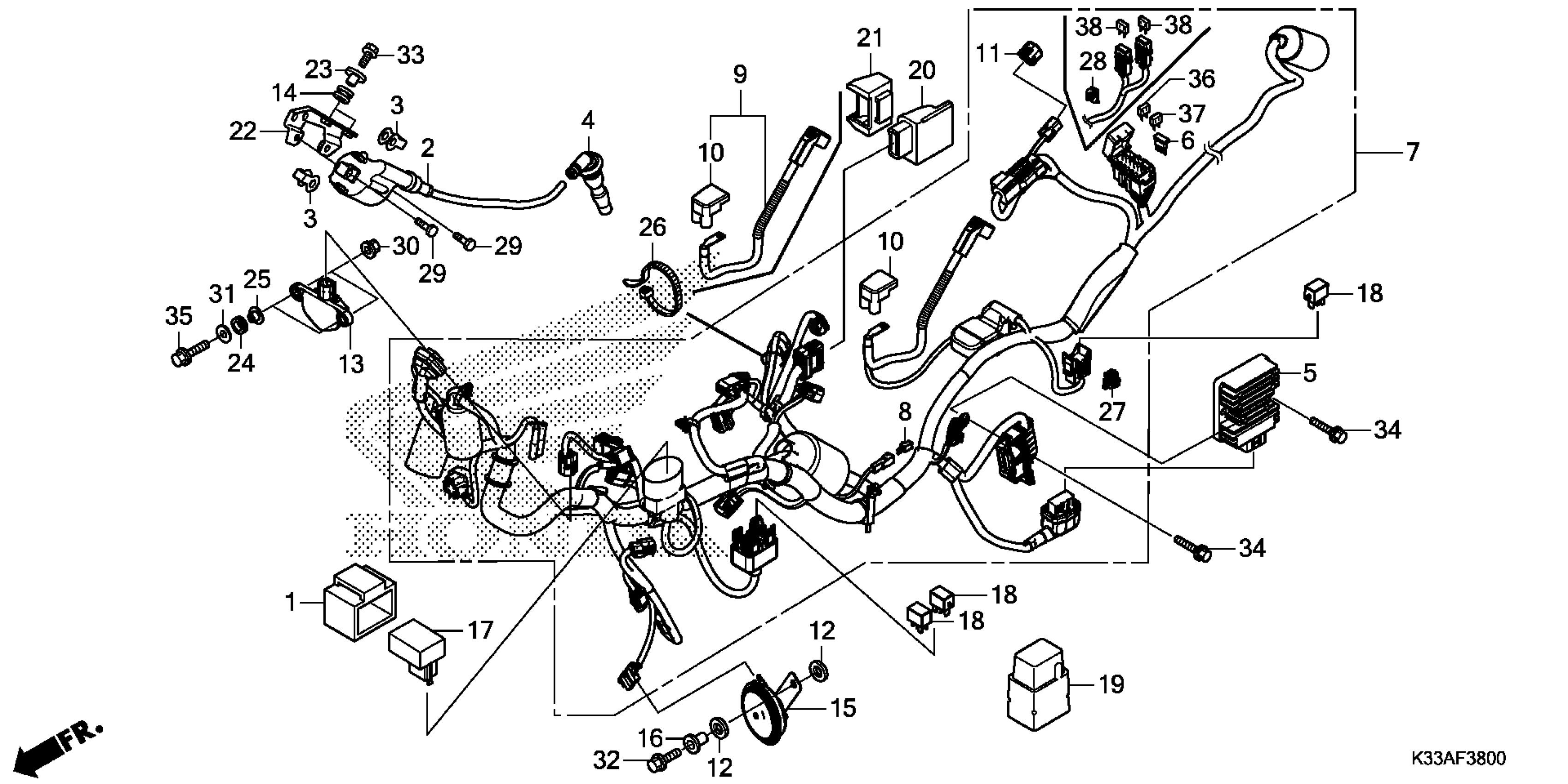

Honda CB300FAAC (18) MOTORCYCLE, THA, VIN# MLHNC525-J5100001 WIRE HARNESS Diagram

CUSHION, IGNITION CONTROL MODULE (CDI) (NOT AVAILABLE)

30401-KF0-010

$6.31

COIL, IGNITION

30510-K33-D01

$37.49

SPACER, IGNITION COIL

30520-GFM-900

$2.61

CAP ASSY., NOISE SUPPRESSOR

30700-MGZ-J01

$82.10

RECTIFIER ASSY., REGULATOR

31600-KVK-901

$213.83

DIODE ASSY., THREE WAY (SUMITOMO)

31730-MAS-601

$10.81

WIRE HARNESS

32100-K75-LA0

$774.69

CONNECTOR, DIODE (2P) (3A)

32146-S84-003

$15.33

COVER, STARTER MAGNETIC TERMINAL

32406-KAZ-010

$6.56

CAP, DUMMY (4P) (RED) (Honda Code 7679160)

32606-GEV-761

$4.52

RUBBER, TAILLIGHT BRACKET

33714-KL3-620

$2.51

SENSOR ASSY., BANK ANGLE

35160-MGS-D31

$150.05

GROMMET A, TUBE

36037-657-000

$6.16

GROMMET A, TUBE This part replaces 36043-657-000.

36037-657-000

$6.16

HORN (HIGH)

38110-KYJ-901

$28.56

COLLAR, HORN SETTING

38117-KFE-701

$1.49

RELAY, TURN SIGNAL POSITION

38301-KYJ-941

$159.29

RELAY, POWER (MICRO ISO 4P) (OMRON)

38501-KWN-901

$6.31

COVER, RELAY (2P)

38506-KZZ-900

$3.72

PGM-FI UNIT

38770-K75-L61

$165.70

SUSPENSION, ENGINE CONTROL UNIT

38771-GFM-900

$2.51

STAY, IGNITION COIL

50204-KYJ-900

$5.08

COLLAR, IGNITION COIL MOUNTING

50214-KYJ-900

$1.49

RUBBER, SIDE COVER

64535-MFJ-D00

$1.93

COLLAR, BANK ANGLE SENSOR

90129-MGZ-J00

$2.36

BAND, WIRE (165MM) (BLACK)

90651-KV6-003

$2.92

CLIP, RELAY HOLDER (NATURAL)

91536-STK-003

$1.49

CLIP, CONNECTOR (BROWN)

91556-SP0-003

$5.03

BOLT, HEX. (6X20)

92101-06020-4J

$1.49

NUT, FLANGE (6MM)

94050-06080

$1.49

WASHER, PLAIN (6MM)

94103-06800

$1.49

BOLT, FLANGE (6X16) (Honda Code 2410892)

95701-06016-00

$1.55

BOLT, FLANGE (6X16)

95701-06016-08

$1.49

BOLT, FLANGE (6X22)

95701-06022-00

$1.80

BOLT, FLANGE (6X22)

95701-06022-08

$1.72

FUSE, MINI (10A)

98200-41000

$1.49

FUSE, MINI (15A) (Honda Code 4853438)

98200-41500

$1.49

FUSE, MINI (30A) (Honda Code 5359666)

98200-43000

$1.67
