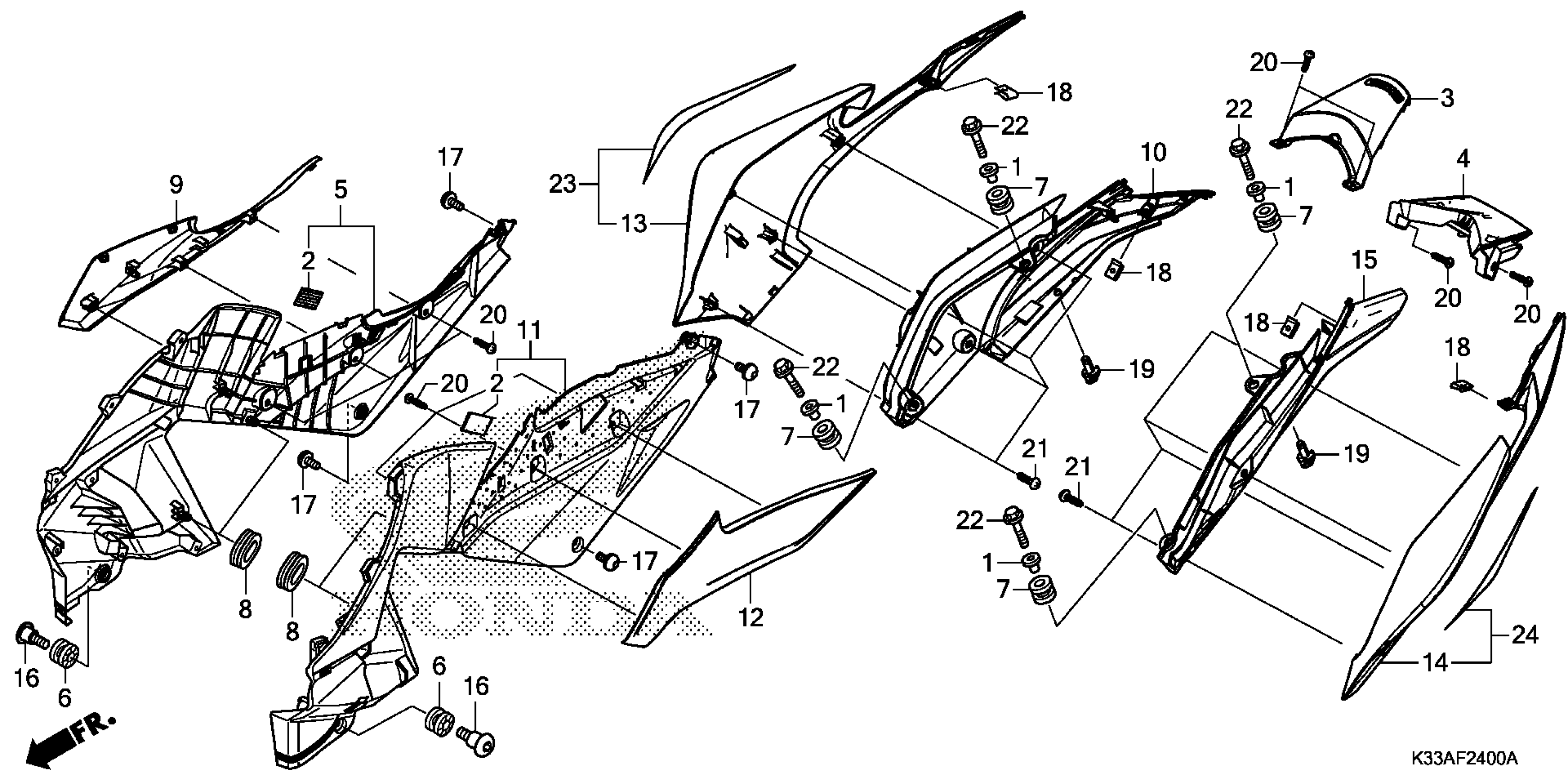

Honda CB300FAAC (18) MOTORCYCLE, THA, VIN# MLHNC525-J5100001 SIDE COVER@REAR COWL Diagram

#

Description
Price

1

COLLAR, AIR CLEANER MOUNTING

17232-KYJ-900

$0.80

2

FASTENER B, DUAL LOCK (20X30)

17581-MGZ-J00

$2.16

3

COWL SET, RR. CENTER (UPPER) (TYPE2) (WL)

83450-K75-TB0ZA

$30.17

4

COWL, RR. CENTER (LOWER)

83501-K33-D00

$7.38

5

COVER ASSY., R. SIDE

83505-K33-700

$95.16

6

RUBBER, SIDE COVER

83545-K33-700

$1.71

7

RUBBER, SIDE COVER

83545-KCJ-690

$1.28

8

GROMMET, AIR CLEANER HOUSING

83551-240-300

$3.01

9

PANEL, R. SIDE *R381C* (CANDY CHROMOSPHERE RED)

83560-K33-700ZG

$16.97

10

COWL, R. RR.

83600-K33-D00

$18.68

11

COVER ASSY., L.

83605-K33-700

Unavailable

12

PANEL, L. SIDE *R381C* (CANDY CHROMOSPHERE RED)

83660-K33-700ZG

$35.09

15

COWL, L. RR.

83700-K33-D00

$18.68

16

SCREW, PAN (6X18.5)

90132-K33-D00

$2.28

17

SCREW, PAN (6X10)

90132-KPP-T00

$0.78

18

NUT, CLIP (4MM)

90344-KTE-910

$0.86

19

CLIP, TRIM (Honda Code 4529715)

90683-GAZ-003

$3.54

20

SCREW, TAPPING (4X12)

93903-24380

Unavailable

21

SCREW, TAPPING (5X12)

93903-25280

$1.23

22

BOLT, FLANGE (6X20)

95701-06020-08

$0.35

23

COVER SET, R. RR. (TYPE1) (WL)

83620-K75-LE0ZA

$30.00

24

COVER SET, L. RR. (TYPE1) (WL)

83630-K75-LE0ZA

$26.78
