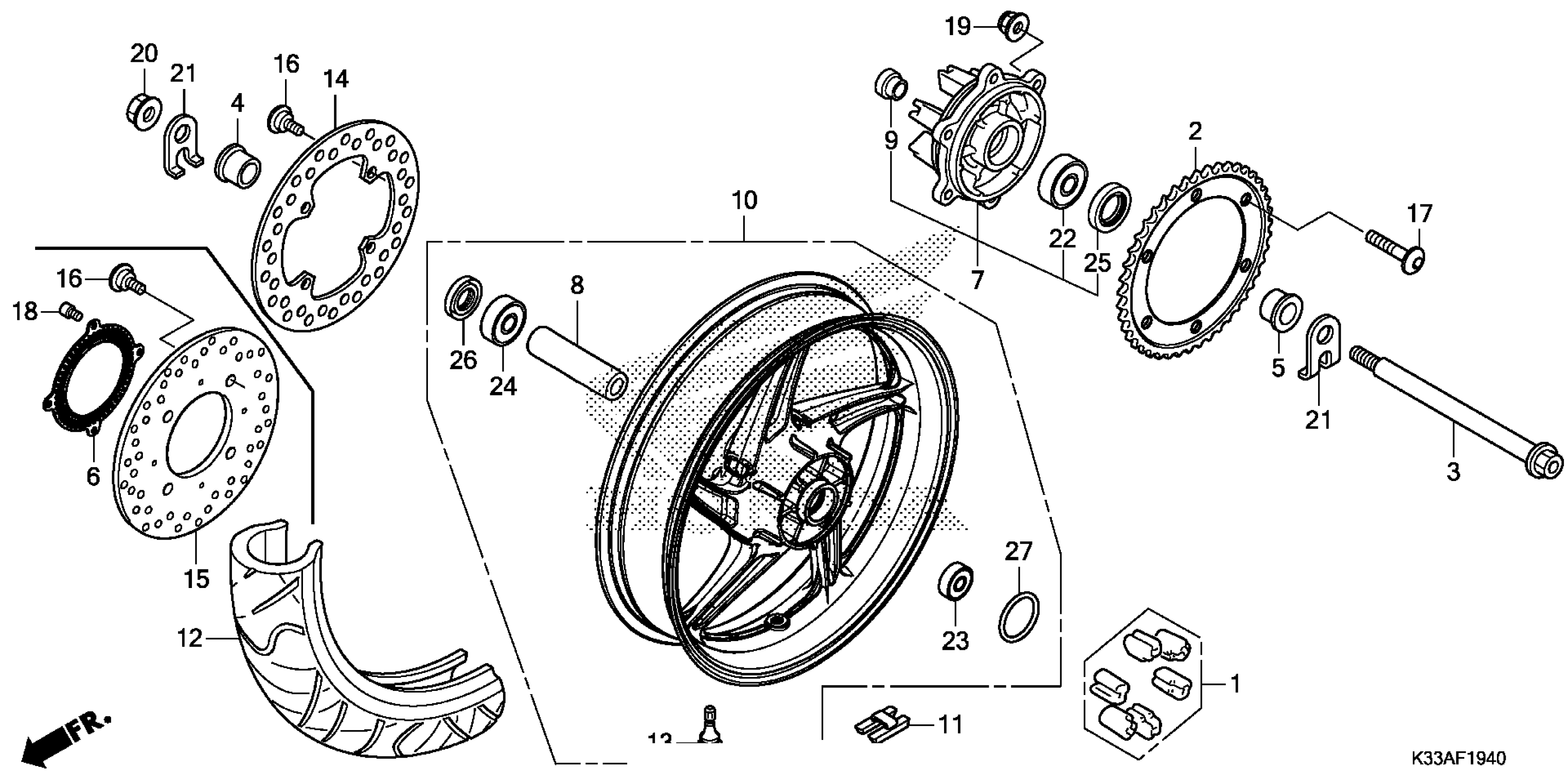

Honda CB300FAAC (18) MOTORCYCLE, THA, VIN# MLHNC525-J5100001 REAR WHEEL Diagram

#

Description
Price

1

DAMPER SET, WHEEL

06410-KEA-750

$41.19

2

SPROCKET, FINAL DRIVEN (36T)

41201-K33-D00

$41.42

3

AXLE, RR. WHEEL

42301-KYJ-900

$17.24

4

COLLAR, R. RR. WHEEL SIDE

42312-KYJ-900

$16.71

5

COLLAR, L. RR. WHEEL SIDE

42313-KYJ-900

$11.35

6

RING, RR. PULSER

42515-KYJ-910

$53.62

7

FLANGE SUB-ASSY., RR. DRIVEN *NH303M* (MAT AXIS GRAY METALLIC)

42615-K33-D00ZA

$100.63

8

COLLAR, RR. WHEEL DISTANCE

42620-KYJ-900

$6.56

9

COLLAR B, RR. AXLE DISTANCE This part replaces 42625-MC4-000.

42625-MAN-620

$18.15

10

WHEEL SUB-ASSY., RR. *NH303M* (MAT AXIS GRAY METALLIC)

42650-K33-D01ZA

$374.44

11

WEIGHT, BALANCE (10G)

42704-MER-D00

$9.15

11

WEIGHT, BALANCE (20G)

42705-MER-D00

$16.09

11

WEIGHT, BALANCE (30G)

42706-MER-D00

$15.85

12

TIRE, RR. (140/70-17M/C 66S) (IRC) This part replaces 42711-KYJ-904.

42711-KYJ-905

$106.50

12

TIRE, RR. (140/70-17M/C 66S) (IRC)

42711-KYJ-905

$106.50

13

VALVE, RIM This part replaces 42753-KWF-901.

42753-K38-901

$0.51

13

VALVE, RIM

42753-K38-901

$0.51

15

DISK, RR. BRAKE

43251-KYJ-911

$66.97

16

BOLT, BRAKE DISK (8X24)

90105-KGH-900

$1.76

17

BOLT, SPROCKET FIXING

90128-KYJ-900

$1.25

18

BOLT, HEX. (5X8)

90131-KYJ-910

$6.41

19

NUT, U (10MM)

90304-KGH-901

Unavailable

20

NUT, U FLANGE (16MM)

90306-MGZ-J01

$6.59

21

WASHER, RR. SWINGARM

90559-K33-700

$6.47

22

BEARING, RADIAL BALL (6204) (UU) (FUJIKOSHI)

91013-MCG-901

$12.29

23

BEARING, RADIAL BALL (6203UU) (FUJIKOSHI)

91051-KVK-901

$8.58

24

BEARING, RADIAL BALL (6303UU) (FUJIKOSHI)

91051-MGZ-J01

$18.32

25

DUST SEAL (30X47X8) (NOK) This part replaces 91253-443-761.

91253-443-762

$11.13

25

DUST SEAL (30X47X8) (NOK)

91253-443-762

$11.13

26

DUST SEAL (30X47X8) (NOK) This part replaces 91253-443-761.

91253-443-762

$11.13

26

DUST SEAL (30X47X8) (NOK)

91253-443-762

$11.13

27

O-RING (54X2) This part replaces 91302-317-700.

91307-MB0-003

$3.08

27

O-RING (54X2) This part replaces 91307-MB0-000.

91307-MB0-003

$3.08

27

O-RING (54X2) (ARAI)

91307-MB0-003

$3.08
