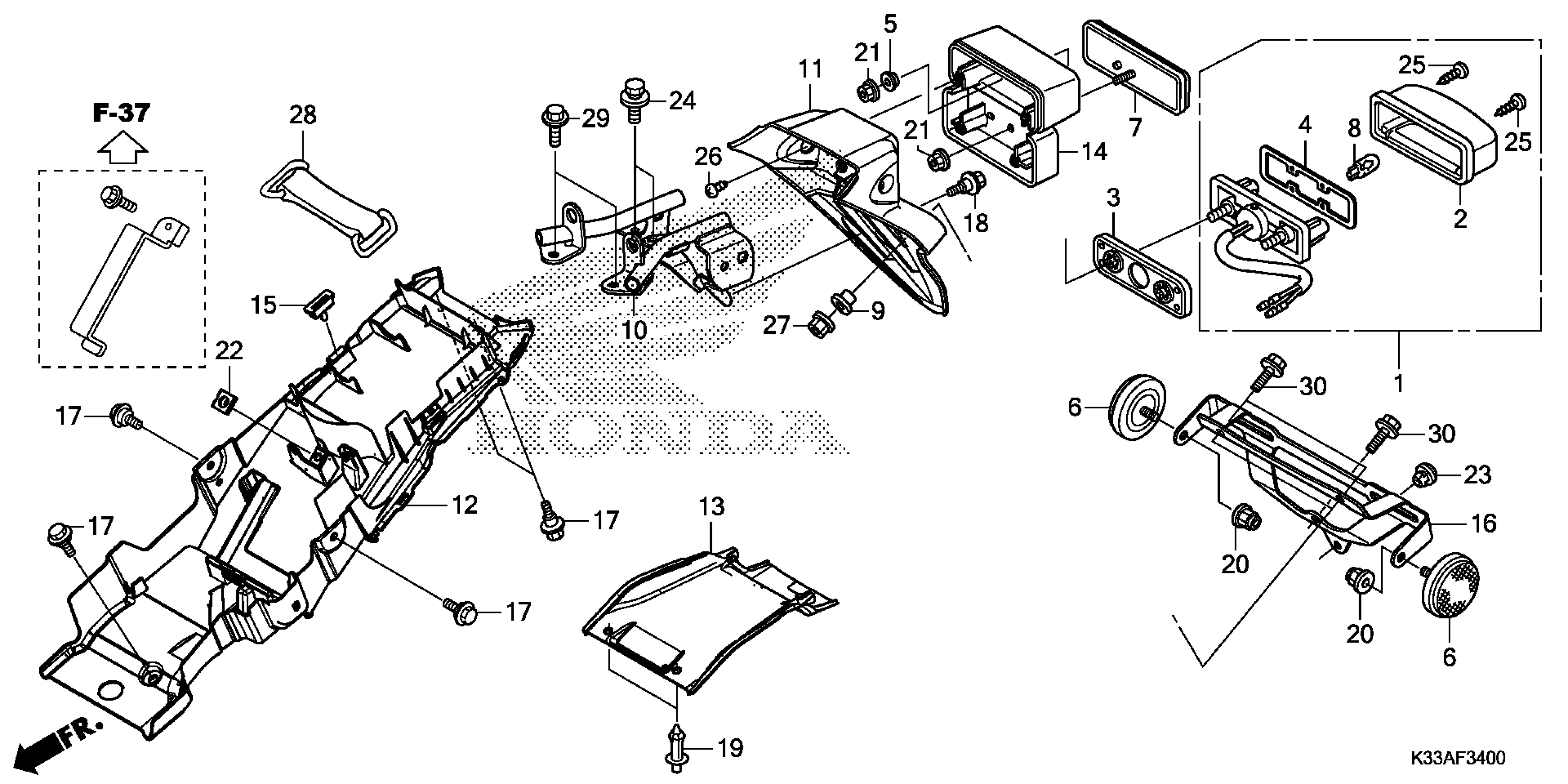

Honda CB300FAAC (18) MOTORCYCLE, THA, VIN# MLHNC525-J5100001 REAR FENDER Diagram

#

Description
Price

1

LIGHT ASSY., LICENSE (12V 5W) (COO) This part replaces 33720-K33-A01.

33720-K33-305

$30.79

1

LIGHT ASSY., LICENSE (12V 5W) (COO)

33720-K33-305

$30.79

2

COVER

33723-KYJ-901

$18.93

3

RUBBER, LICENSE LIGHT

33728-KPP-T00

$3.96

4

GASKET, LENS

33729-KSP-B01

$2.99

5

COLLAR, REGULATOR MOUNTING

33731-MJ0-940

Unavailable

6

REFLECTOR, RR. REFLEX (RED)

33741-HB9-641

$12.18

7

REFLECTOR, REFLEX

33741-KPL-902

$7.03

8

BULB, LICENSE LIGHT (12V 5W) (W5W) (LIFE ELEX)

34903-K29-902

$2.01

9

COLLAR, FR. WHEEL COVER (FOR RR.)

44125-MN5-000

$4.88

10

STAY, RR. FENDER

50186-K33-D00

$61.10

11

FENDER, RR.

80100-KPP-T00

$20.13

12

FENDER B, RR.

80101-K33-D00

$18.62

13

COVER, RR. (LOWER)

80140-K33-D00

$4.24

14

BRACKET, LICENSE LIGHT

80201-KYJ-920

$7.84

15

PLUG, RUBBER

83705-K33-D00

$2.10

16

BRACKET, NUMBER PLATE

84700-KYJ-920

$15.46

17

BOLT, FLANGE (6MM)

90111-162-000

$2.66

18

BOLT, FLANGE (6MM)

90111-187-000

$7.39

19

CLIP, BUMPER SEAL

90116-SP0-003

$4.50

20

NUT, U (6MM) (FUJI SEIMITSU)

90301-KGH-901

$1.28

21

NUT, U (5MM)

90301-KWN-901

$0.62

22

NUT, SPRING (6MM)

90320-MM5-000

$2.62

23

PLUG, HOLE

90852-446-630

$2.37

24

BOLT-WASHER (6X14)

93404-06014-00

$0.87

25

SCREW, TAPPING (4X16)

93901-24480

$0.82

26

SCREW, TAPPING (4X12)

93903-44380

$0.90

27

NUT, FLANGE (6MM)

94050-06000

$0.60

28

BAND, BATTERY

95012-15001

$6.02

29

BOLT, FLANGE (8X12)

95701-08012-00

$1.04

30

BOLT, FLANGE (6X14)

96001-06014-07

$1.10
