Description

Price

1

CLAMP, SPEED SENSOR WIRE

38516-KYJ-910

$6.29

2

HOSE A, RR. BRAKE

43310-K33-D51

$30.84

4

HOSE B, RR. BRAKE

43314-K33-D51

$23.52

6

GUIDE, RR. BRAKE HOSE

43468-KFK-630

$6.07

7

CONNECTOR

43503-MR7-006

$12.51

8

BOOT

43504-MB2-006

$9.01

9

MASTER CYLINDER SUB-ASSY., RR. BRAKE (COO) (NISSIN)

43510-KYJ-305

$106.87

9

MASTER CYLINDER SUB-ASSY., RR. BRAKE (COO) (NISSIN) This part replaces 43510-KYJ-901.

43510-KYJ-305

$106.87

10

CUP, MASTER CYLINDER OIL

43511-KYJ-901

$5.64

11

HOSE, RR. MASTER CYLINDER

43512-KYJ-901

$5.39

12

CLAMP, MASTER CYLINDER OIL HOSE

43514-KS6-701

$11.77

13

SCREW, FLAT (4X60)

43516-KYJ-901

$0.83

14

PISTON SET, MASTER CYLINDER (NISSIN)

43520-MB2-315

$41.76

15

ROD, PUSH

43530-KV3-701

$18.06

16

CAP, MASTER CYLINDER

45513-K33-D01

$15.00

17

DIAPHRAGM

45520-GW0-911

$6.78

18

PLATE, DIAPHRAGM

45521-GW0-911

$5.34

19

CIRCLIP

46182-MEL-D21

$1.77

20

JOINT, BRAKE ROD

46504-MAL-601

$12.20

21

SCREW, PAN (5X12)

90104-KPP-900

$0.75

22

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.82

23

WASHER, OIL BOLT

90545-300-000

$3.72

24

O-RING (14.8X2.4)

91212-422-006

Unavailable

25

SCREW-WASHER (4X12)

90508-K21-921

$0.23

26

NUT, HEX. (8MM)

94002-08000-0S

$1.19

27

PIN, COTTER (2.0X15)

94201-20150

$0.94

28

PIN D, JOINT

95015-54000

$3.95

29

BOLT, FLANGE (6X14)

96001-06014-07

$1.09

30

BOLT, FLANGE (6X30)

96001-06030-07

$1.64

31

BOLT, SOCKET (6X20)

96600-06020-00

$1.17

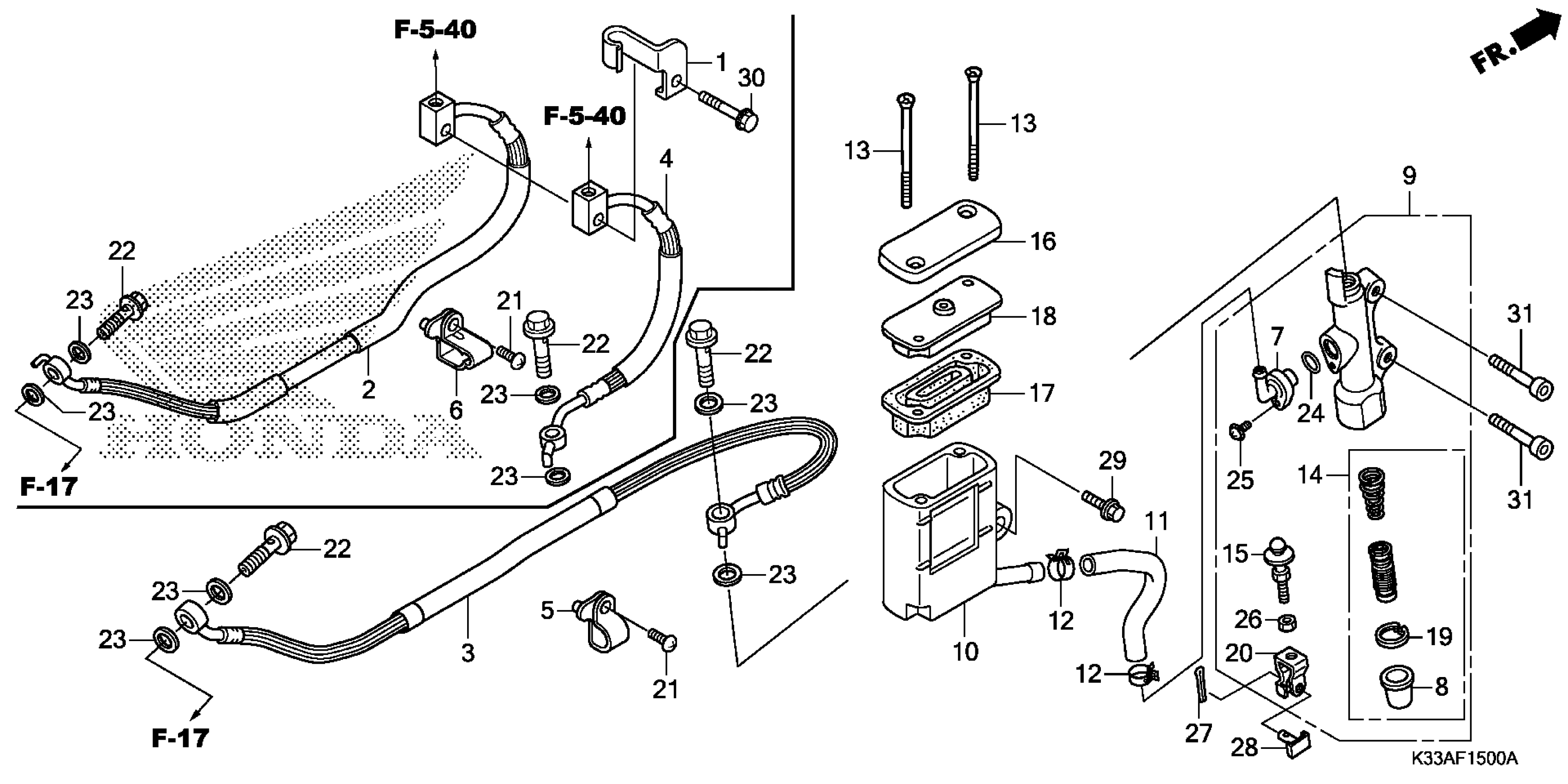

Honda CB300FAAC (18) MOTORCYCLE, THA, VIN# MLHNC525-J5100001 REAR BRAKE MASTER CYLINDER Diagram
