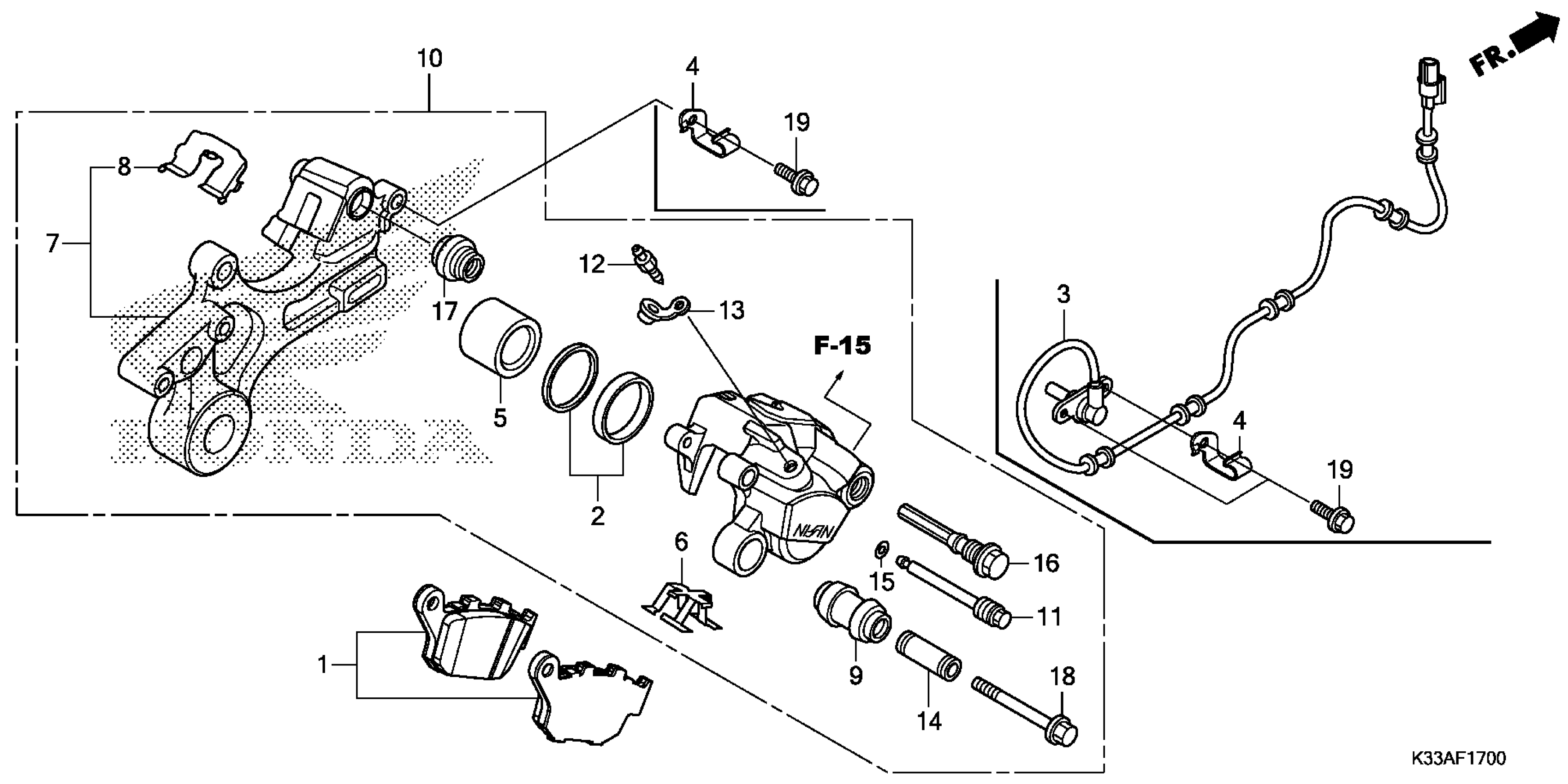

Honda CB300FAAC (18) MOTORCYCLE, THA, VIN# MLHNC525-J5100001 REAR BRAKE CALIPER Diagram

#

Description
Price

1

PAD SET, RR. This part replaces 06435-KYJ-901.

06435-KYJ-902

$33.42

1

PAD SET, RR.

06435-KYJ-902

$33.42

2

SEAL SET, PISTON

06451-443-405

$12.15

3

SENSOR, RR. WHEEL SPEED

38510-KYJ-911

$192.09

4

CLAMP, SPEED SENSOR WIRE

38517-KYJ-910

$3.46

5

PISTON

43107-KT7-761

$34.77

6

SPRING, PAD

43108-MBB-006

$5.90

7

BRACKET, RR.

43110-KFK-631

$125.32

8

RETAINER

43112-KT7-761

$8.68

9

BOOT, SLEEVE

43132-KT7-761

$7.85

10

CALIPER SUB-ASSY., RR. (NISSIN) (MSDS)

43150-K33-D51

$161.72

11

PIN, HANGER

43215-KZ4-J41

Unavailable

12

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

13

CAP, BLEEDER

43353-461-771

Unavailable

14

SLEEVE

45111-MA3-006

$12.28

15

RING, STOPPER

45111-MAJ-G41

$3.63

16

BOLT, PIN

45131-MN9-006

$14.66

17

BOOT B

45133-MA3-006

$5.21

18

BOLT, FLANGE (8X49)

90180-MN8-006

$5.80

19

BOLT, FLANGE (6X10)

96001-06010-07

$1.63
