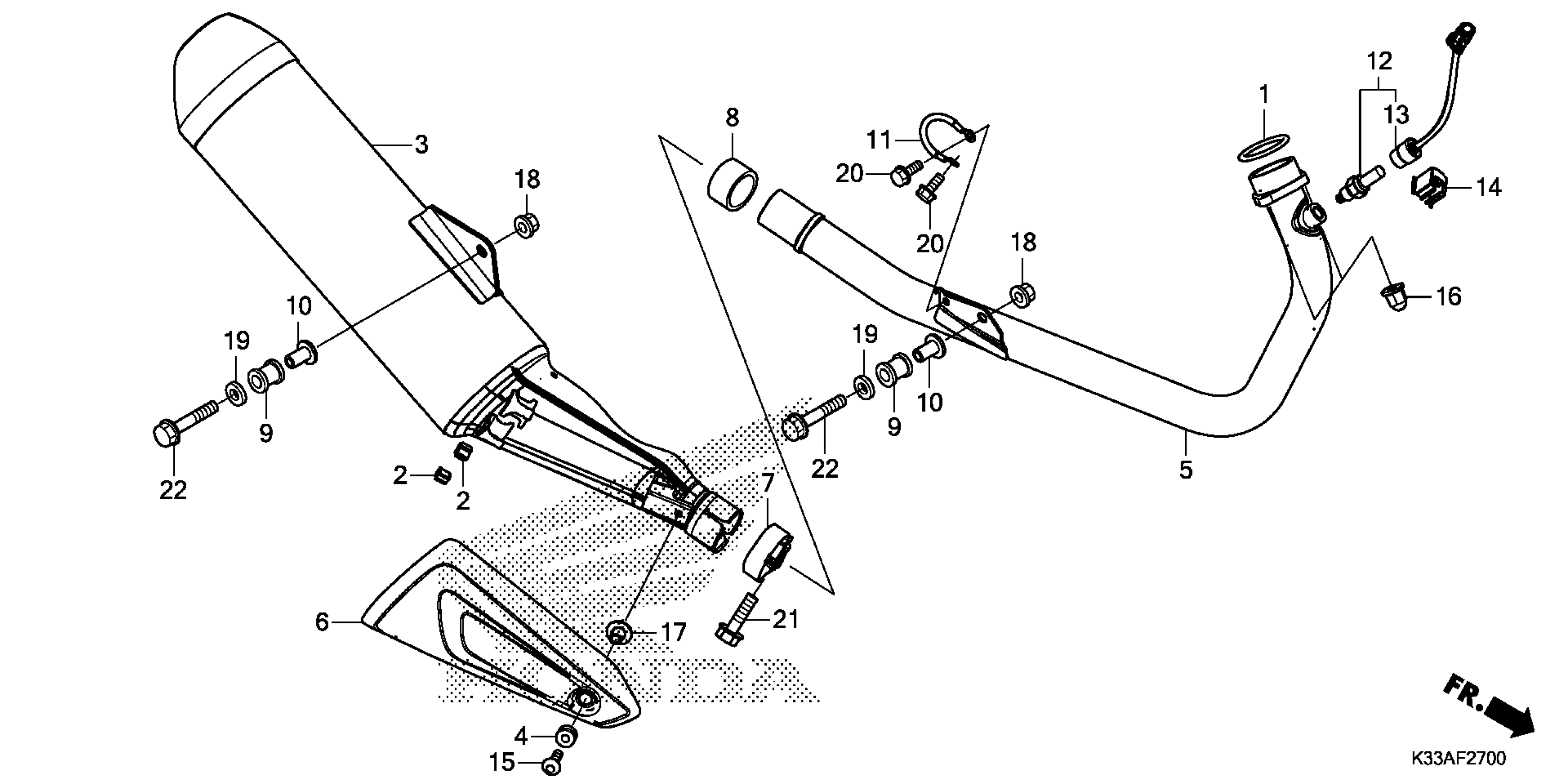

Honda CB300FAAC (18) MOTORCYCLE, THA, VIN# MLHNC525-J5100001 MUFFLER Diagram

#

Description
Price

1

GASKET, EX. PIPE

18291-MEB-670

$4.92

2

RUBBER, PROTECTOR

18293-MN0-000

$2.13

3

MUFFLER (COO)

18310-K75-305

$836.51

3

MUFFLER (COO) This part replaces 18310-K75-A50.

18310-K75-305

$836.51

4

RUBBER A, PROTECTOR

18320-196-000

$2.67

5

PIPE, EX.

18320-K75-A50

$138.02

6

COVER, MUFFLER

18355-K33-D00

$44.93

7

BAND, MUFFLER

18373-K33-D00

$19.75

8

GASKET, MUFFLER

18392-KYJ-901

$7.01

9

RUBBER, MUFFLER MOUNTING

18421-K75-A50

$6.30

10

COLLAR, MUFFLER MOUNTING This part replaces 18422-KAF-700.

18422-MAL-600

$5.92

10

COLLAR, MUFFLER MOUNTING

18422-MAL-600

$5.92

11

SUB-HARNESS, OXYGEN SENSOR GROUND

32200-K33-D00

$2.61

12

SENSOR, OXYGEN

36532-K33-D01

$104.26

13

WIRE, OXYGEN SENSOR

36533-K33-D01

$52.39

14

COVER, SENSOR (O2)

36538-K33-D00

$13.05

15

SCREW, PAN (6X20)

90118-MGZ-J00

$1.49

16

NUT, HEX. CAP (8MM)

90304-KPH-700

$1.75

17

COLLAR, HEAD SIDE COVER

90502-KGB-610

$2.11

18

NUT, FLANGE (8MM) NUT, FLANGE (10MM)

94050-08000

$1.49

19

WASHER, PLAIN (8MM)

94103-08000

$1.49

20

BOLT, FLANGE (6X10) BOLT, FLANGE (6X12)

95701-06010-00

$1.49

21

BOLT, FLANGE (8X38)

95701-08038-02

$4.37

22

BOLT, FLANGE (8X50)

95701-08050-00

$2.28
