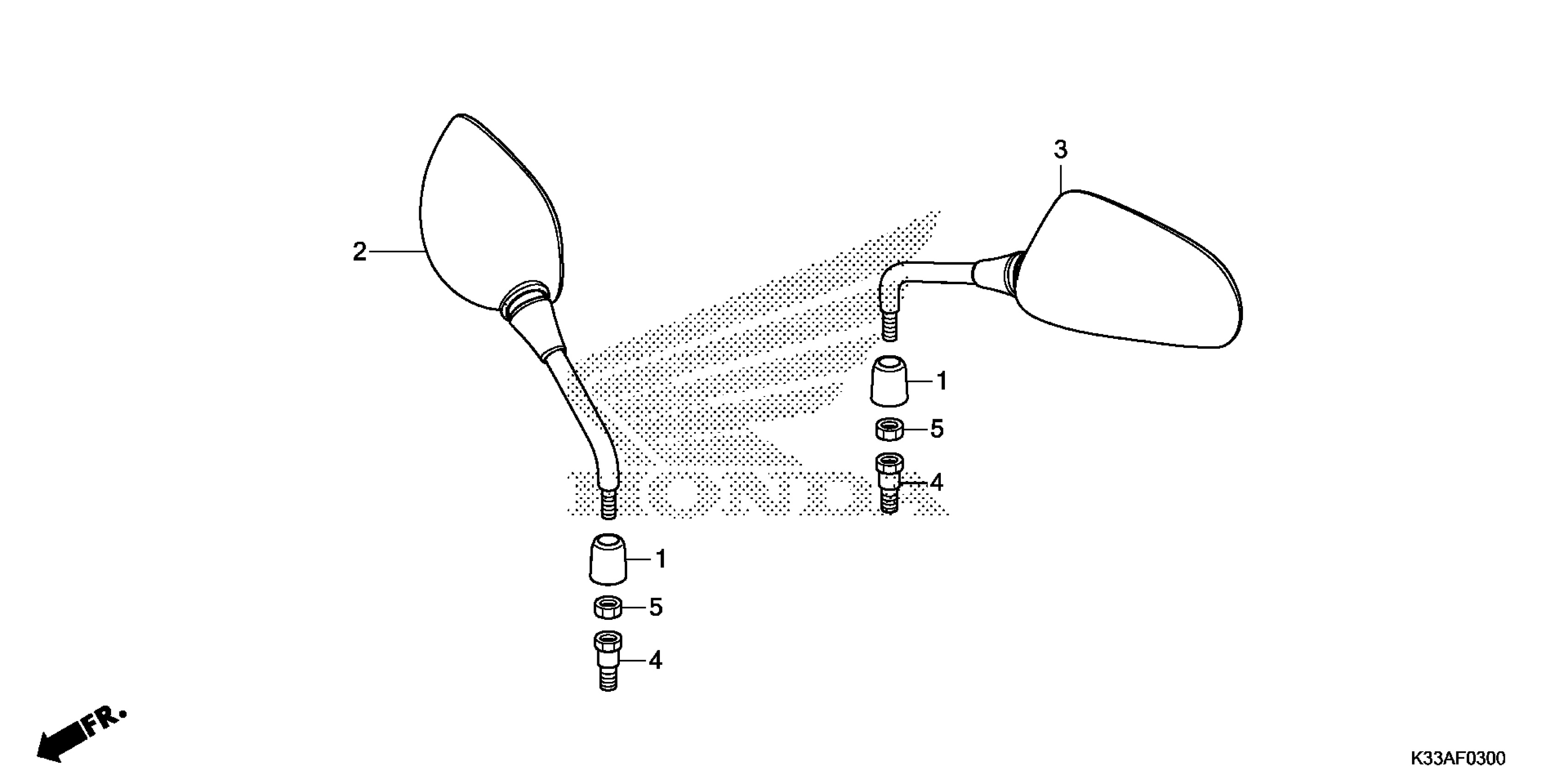

Honda CB300FAAC (18) MOTORCYCLE, THA, VIN# MLHNC525-J5100001 MIRROR Diagram

#

Description

Price

1

COVER, LOCK NUT

88130-MFG-D00

$1.59

2

MIRROR ASSY., R. BACK (COO)

88210-K33-305

$50.74

2

MIRROR ASSY., R. BACK (COO) This part replaces 88210-K33-700.

88210-K33-305

$50.74

3

MIRROR ASSY., L. BACK (COO)

88220-K33-305

$50.74

3

MIRROR ASSY., L. BACK (COO) This part replaces 88220-K33-700.

88220-K33-305

$50.74

4

BOLT, ADAPTER (10MM)

90130-MGS-D31

$7.82

5

NUT, HEX. (10MM) (LEFT HAND THREAD)

90310-MGS-D31

$2.71
