Description

Price

1

FORK ASSY., R. FR. (COO) (SHOWA)

51400-K33-305

$262.21

1

FORK ASSY., R. FR. (COO) (SHOWA) This part replaces 51400-K33-651.

51400-K33-305

$262.21

2

SPRING, FR. FORK

51401-K33-701

$31.21

3

COLLAR, SPRING

51402-K33-701

$1.49

4

PLATE, SPRING JOINT

51403-ME4-003

$7.15

5

PIPE, FR. FORK

51410-K33-701

$98.08

6

SPRING, FR. FORK REBOUND

51411-MG1-003

$6.61

7

RING, BACK-UP

51412-461-003

$7.04

8

BUSH, GUIDE

51414-KFB-901

$6.96

9

BUSH, SLIDER This part replaces 51415-KFB-901.

51415-KSE-A71

$8.89

10

CASE, R. (LOWER)

51420-KYJ-921

$105.95

11

PIECE, OIL LOCK

51432-KAZ-003

$9.33

12

RING, PISTON

51437-ML7-691

$7.90

13

PIPE, SEAT

51440-KYJ-901

$13.61

14

RING, OIL SEAL STOPPER

51447-KR6-003

$3.77

15

BOLT, FR. FORK

51450-KAS-901

$23.48

16

SEAL SET, FR. FORK

51490-KWL-003

$21.62

17

FORK ASSY., L. FR. (COO) (SHOWA)

51500-K33-305

$251.15

17

FORK ASSY., L. FR. (COO) (SHOWA) This part replaces 51500-K33-651.

51500-K33-305

$251.15

18

CASE, L. (LOWER)

51520-KYJ-921

$94.54

19

BOLT, FLANGE (8X45)

90109-MR7-000

$4.94

20

BOLT, SOCKET (8MM) (SHOWA)

90116-KV3-701

$3.89

21

WASHER, SPECIAL (8MM) (SHOWA)

90544-283-000

$2.87

22

DUST SEAL DUST SEAL, FR. FORK

91254-KAZ-003

$17.00

23

O-RING (27.7X3.5)

91357-ME4-003

$3.35

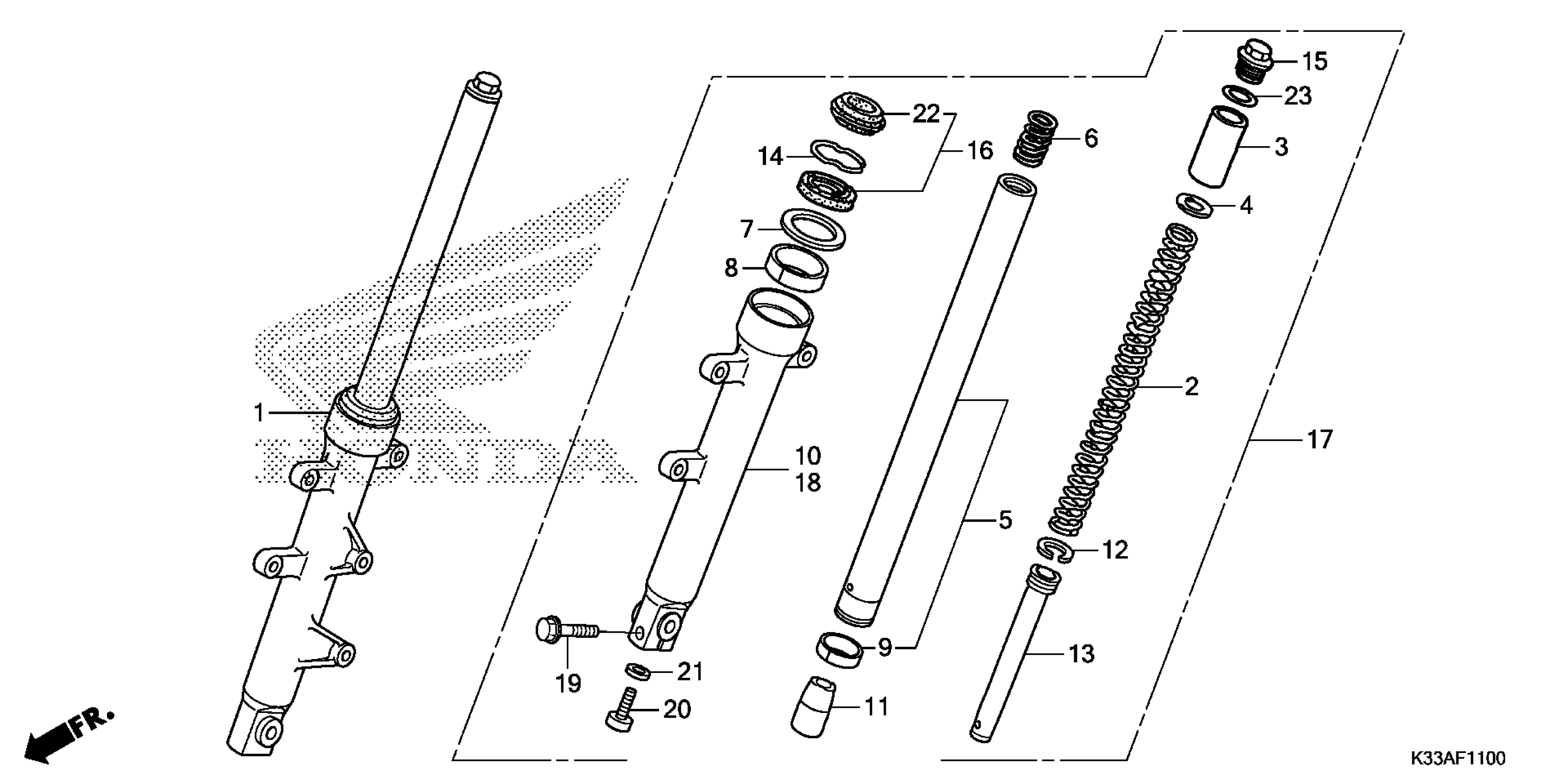

Honda CB300FAAC (18) MOTORCYCLE, THA, VIN# MLHNC525-J5100001 FRONT FORK Diagram
