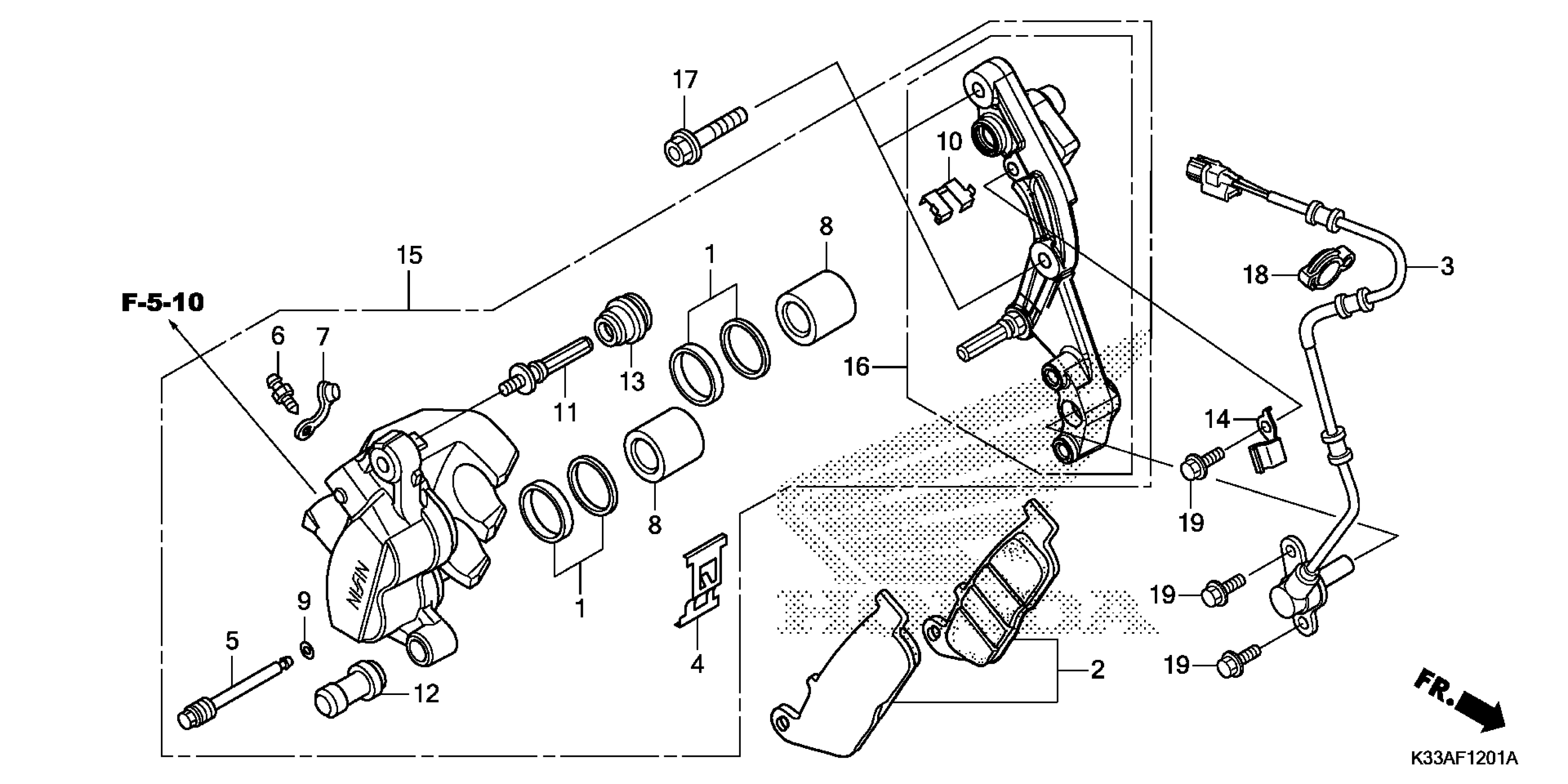

Honda CB300FAAC (18) MOTORCYCLE, THA, VIN# MLHNC525-J5100001 FRONT BRAKE CALIPER (ABS) Diagram

SEAL SET, PISTON (RIGHT SIDE, QTY-1)

06431-MA3-405

$7.33

PAD SET, FR.

06455-K33-D52

$114.97

SENSOR, FR. WHEEL SPEED

38520-K33-D51

$90.69

SPRING, PAD

43108-MCT-006

$4.92

PIN, HANGER

43215-KZ4-J41

$5.25

SCREW, BLEEDER (NISSIN)

43352-568-003

$7.95

CAP, BLEEDER

43353-461-771

$5.05

PISTON (NISSIN)

45107-ML4-006

$37.87

RING, STOPPER

45111-MAJ-G41

$3.80

RETAINER

45112-ML7-921

$5.46

BOLT A, PIN (NISSIN)

45131-ML7-921

$15.44

BOOT, PIN BUSH (NISSIN)

45132-166-016

$5.46

BOOT B

45133-MA3-006

$5.46

CLAMP, SPEED SENSOR CORD

45161-MCW-D10

$4.84

CALIPER SUB-ASSY., R. FR. (NISSIN)

45250-K33-D51

$185.51

BRACKET SUB-ASSY., R. FR.

45290-K33-D51

$46.93

BOLT, FLANGE (8X32)

90131-KYJ-710

$1.82

CLIP, CABLE (14MM)

90690-MCA-003

$1.77

BOLT, FLANGE (6X10)

96001-06010-07

$1.62
