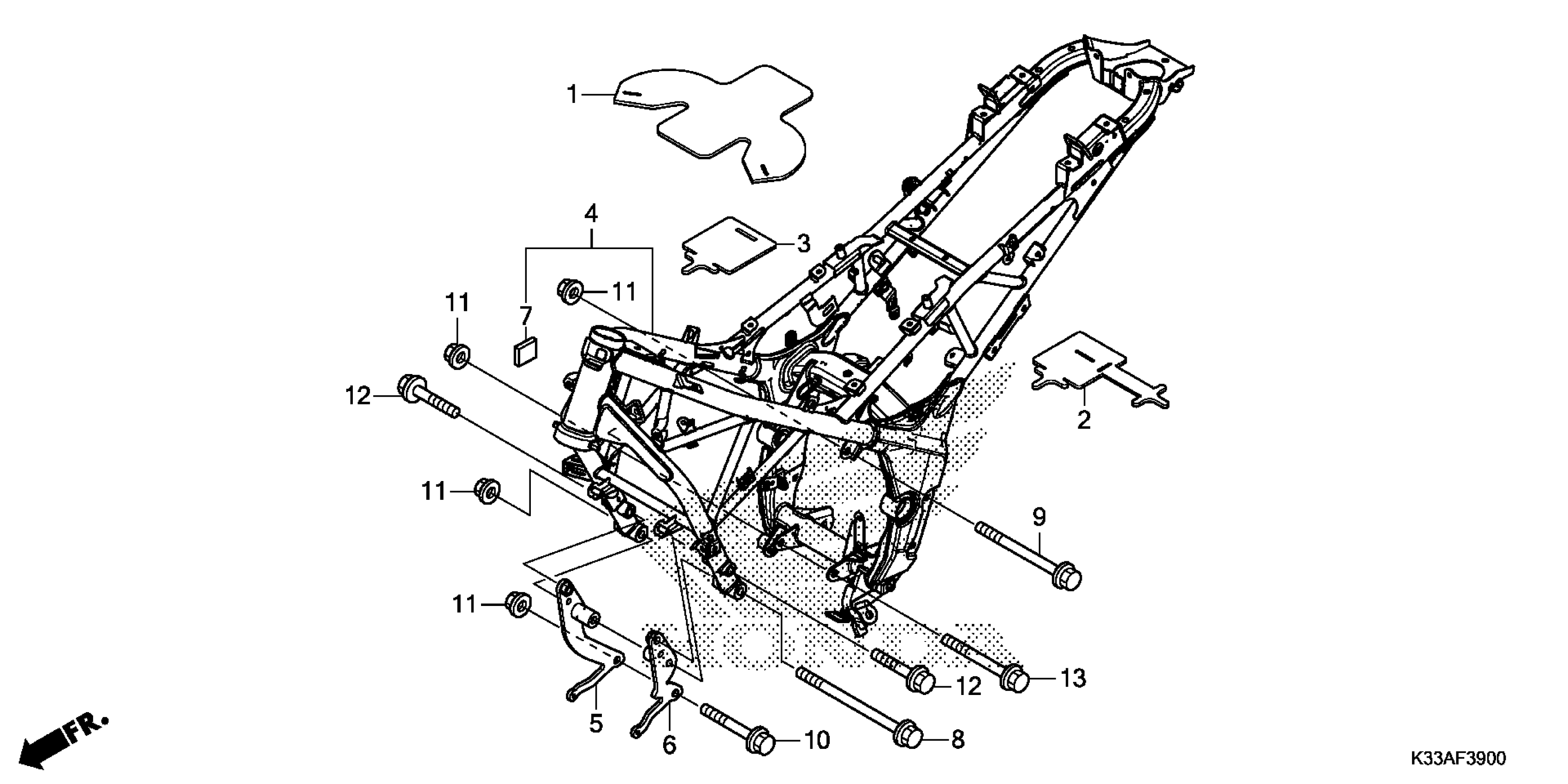

Honda CB300FAAC (18) MOTORCYCLE, THA, VIN# MLHNC525-J5100001 FRAME Diagram

#

Description
Price

1

RUBBER, GUARD

17543-K33-700

$11.87

2

RUBBER SHEET, CABLE GUARD

32800-KYJ-640

$5.94

3

RUBBER SHEET, HARNESS GUARD

32800-KYJ-900

$3.01

4

FRAME SET

50010-K33-750

$502.78

5

PLATE, R. FR. ENGINE HANGER

50351-K33-700

$45.12

6

PLATE, L. FR. ENGINE HANGER

50361-K33-700

$45.12

7

FILM, PROTECTOR

64382-K33-D00

$1.35

8

BOLT, FLANGE (10X273)

90111-KYJ-900

$4.72

9

BOLT, FLANGE (10X145)

90113-KYJ-900

$2.81

10

BOLT, FLANGE (10X103)

90114-KYJ-900

$2.00

11

NUT, FLANGE (10MM)

94050-10000

$1.41

12

BOLT, FLANGE (10X70)

95801-10070-00

$1.64

13

BOLT, FLANGE (10X130)

95801-10130-00

$4.09
