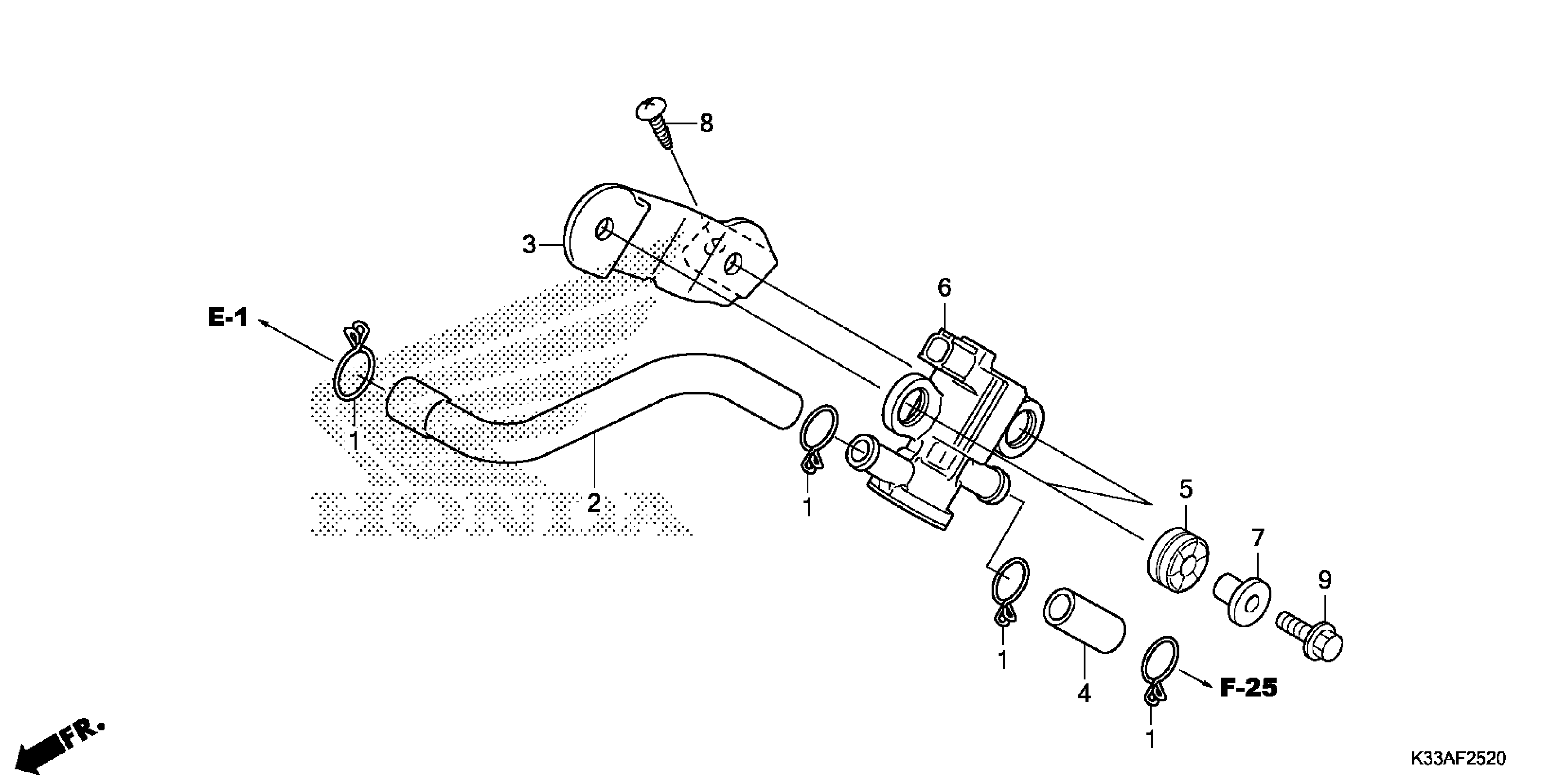

Honda CB300FAAC (18) MOTORCYCLE, THA, VIN# MLHNC525-J5100001 AIR INJECTION SOLENOID VALVE Diagram

#

Description

Price

1

CLIP, BREATHER TUBE

15772-551-000

$2.05

2

HOSE, AIR INJECTION SOLENOID VALVE

18613-KYJ-900

$4.46

3

STAY, AIR INJECTION SOLENOID VALVE

18652-KYJ-900

$3.93

4

TUBE (AISV-AIR CLEANER)

18653-KYJ-900

$1.74

5

RUBBER, HEADLIGHT

33115-KVK-900

$1.49

6

VALVE ASSY., AIR INJECTION SOLENOID

36450-KVK-902

$62.61

7

COLLAR, FR. FENDER (WHITE) This part replaces 61104-428-000.

61104-428-010

$4.42

7

COLLAR, FR. FENDER (WHITE) (FOR RR.)

61104-428-010

$4.42

7

COLLAR, FR. FENDER (BLACK) (FOR RR.)

61104-428-730

$4.21

8

SCREW, TAPPING (5X12)

93903-25280

$1.49

9

BOLT, FLANGE (6X22)

95701-06022-08

$1.72
