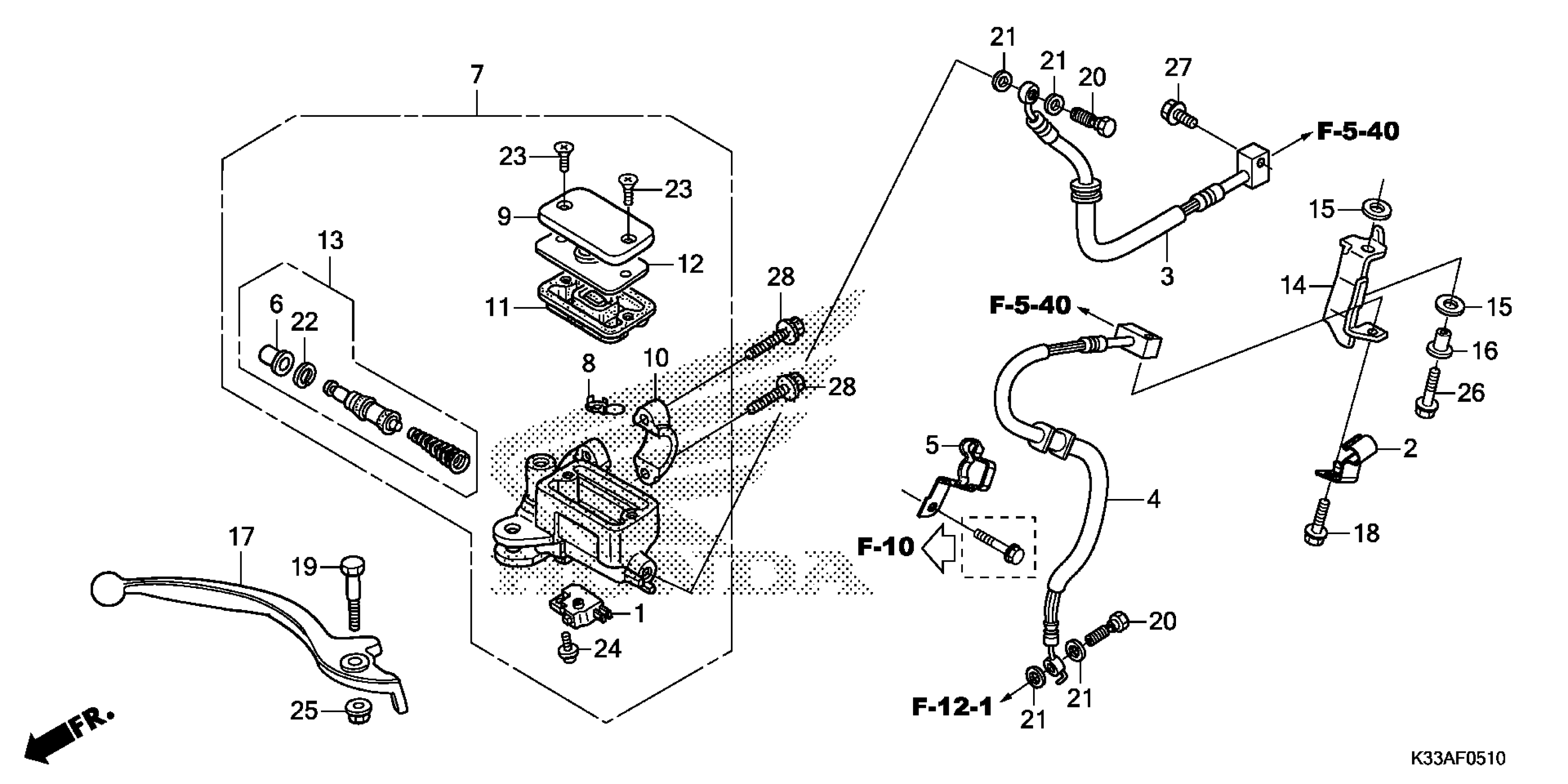

Honda CB300FAAC (17) MOTORCYCLE, THA, VIN# MLHNC525-H5000001 TO MLHNC525-H5099999 FRONT BRAKE MASTER CYLINDER (ABS) Diagram

#

Description
Price

1

SWITCH ASSY., FR. STOP

35340-MGS-D31

$16.62

2

CLAMP, SPEED SENSOR WIRE (FR)

38526-K33-D50

$2.30

3

HOSE B, FR. BRAKE

45125-K33-751

$25.29

4

HOSE A, FR. BRAKE

45126-K33-D51

$32.01

5

CLAMP B, FR. BRAKE HOSE

45156-K33-D50

$5.39

6

BOOT

45504-410-003

$10.93

7

MASTER CYLINDER SUB-ASSY., FR. BRAKE (COO) (NISSIN)

45510-MGZ-315

$111.13

8

PROTECTOR

45512-MA6-006

$3.99

9

CAP, MASTER CYLINDER (COO)

45513-HR0-305

$3.87

9

CAP, MASTER CYLINDER (COO) This part replaces 45513-KK1-771.

45513-HR0-305

$3.87

10

HOLDER, MASTER CYLINDER

45517-166-006

$12.17

11

DIAPHRAGM

45520-GE2-006

$8.35

12

PLATE, DIAPHRAGM

45521-K21-901

$2.07

13

MASTER CYLINDER SET

45530-471-831

Unavailable

14

STAY, FR. BRAKE HOSE

50246-KYJ-910

$24.10

15

WASHER, RUBBER

50248-KYJ-910

$0.65

16

COLLAR, JOINT STAY MOUNTING (TWO-WAY)

50249-KYJ-910

$3.78

17

LEVER, R. HANDLEBAR (COO)

53175-K26-305

Unavailable

18

BOLT, FLANGE (6X18)

90105-MY9-000

$2.67

19

BOLT, HANDLE LEVER PIVOT

90114-166-006

$6.04

20

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$6.82

21

WASHER, OIL BOLT

90545-300-000

$3.72

22

CIRCLIP

90651-MA5-671

$2.38

23

SCREW, FLAT (4X12)

93600-04012-0G

$0.83

23

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.83

24

SCREW-WASHER (4X12)

93893-04012-07

$1.22

24

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.22

25

NUT, FLANGE (6MM)

94050-06000

$0.59

26

BOLT, FLANGE (6X20)

95701-06020-07

$1.48

27

BOLT, FLANGE (6X12) (L. SIDE ONLY)

96001-06012-07

Unavailable

28

BOLT, FLANGE (6X22)

96001-06022-07

$1.68
