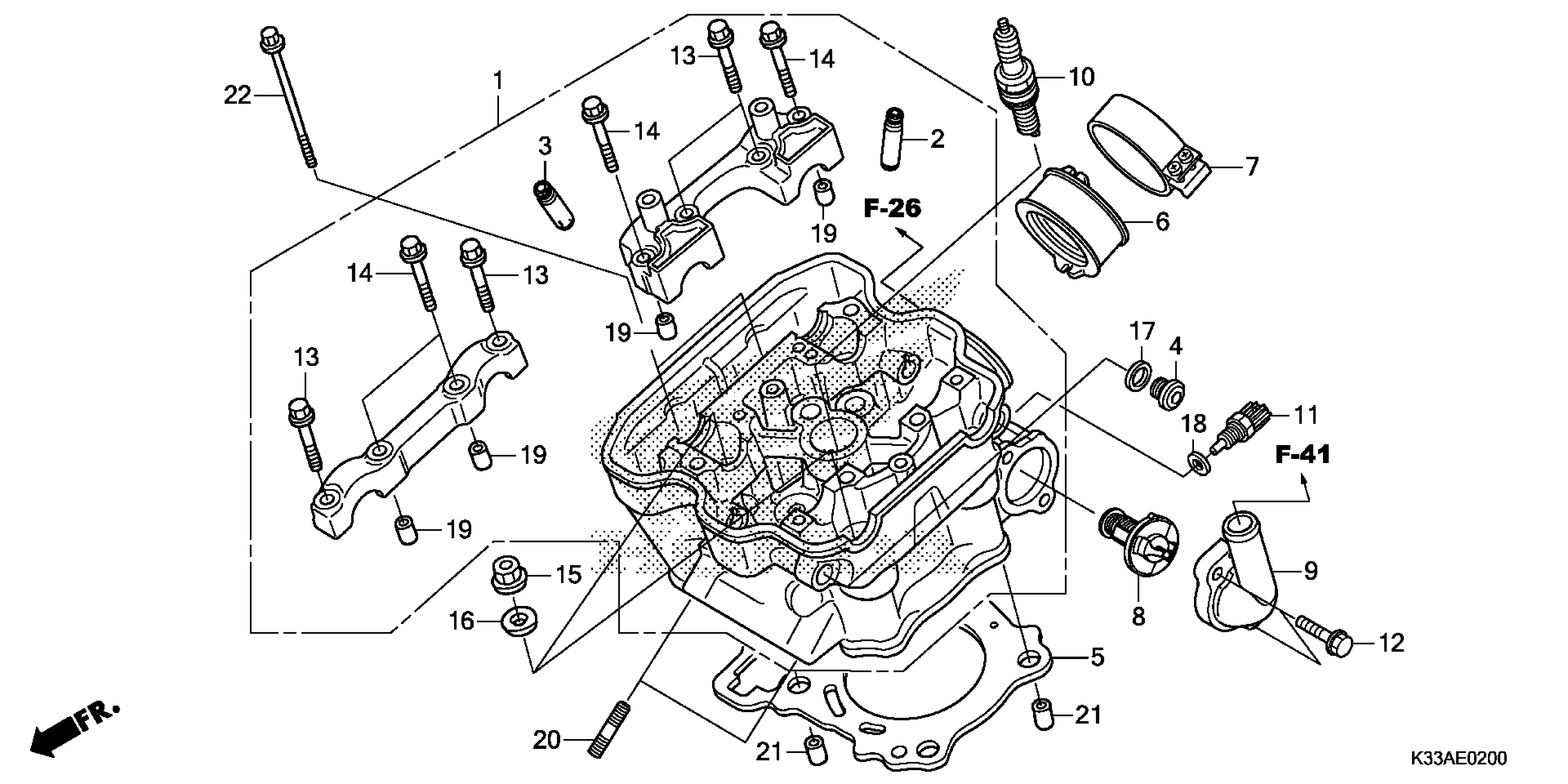

Honda CB300FAAC (17) MOTORCYCLE, THA, VIN# MLHNC525-H5000001 TO MLHNC525-H5099999 CYLINDER HEAD Diagram

CYLINDER HEAD ASSY.

12010-K33-T50

$149.47

GUIDE, VALVE (OVER SIZE) (EXHAUST SIDE)

12204-KYJ-305

$19.81

GUIDE, EX. VALVE (OVER SIZE) (INLET SIDE)

12205-KYJ-305

$19.81

BOLT, SEALING (12MM)

12207-KYJ-900

$1.52

GASKET, CYLINDER HEAD

12251-KYJ-901

$23.12

INSULATOR, THROTTLE BODY

16211-KYJ-901

$9.98

BAND, INSULATOR

16217-KYJ-900

$5.59

THERMOSTAT

19300-KGF-911

$56.38

COVER, THERMOSTAT

19321-KYJ-900

$16.90

SPARK PLUG (SIMR8A9) (NGK)

31916-MEH-003

$18.81

SENSOR ASSY., WATER TEMPERATURE

37870-KRJ-901

$30.74

BOLT, FLANGE (6X22) (NSHF)

90011-KYJ-900

$1.49

BOLT, FLANGE (6X32)

90017-KYJ-900

$1.49

BOLT, FLANGE (6X39.5)

90019-KYJ-900

$1.49

NUT, FLANGE (10MM) This part replaces 90204-634-000.

94050-10000

$1.59

NUT, FLANGE (10MM) This part replaces 94030-10000-07.

94050-10000

$1.59

NUT, FLANGE (10MM)

94050-10000

$1.59

WASHER (10MM)

90410-GCC-000

$2.21

WASHER (12.2X17X1.5)

90418-KYJ-900

$1.49

WASHER, SPECIAL (12MM)

90454-MC7-000

$2.61

PIN, DOWEL (8X14)

90702-KRM-840

$1.49

PIN, DOWEL (8X14) This part replaces 91105-KSP-910.

90702-KRM-840

$1.49

PIN, DOWEL (8X14) (Honda Code 0069310)

94301-08140

$2.25

BOLT, STUD (8X22)

92900-08022-3E

$2.31

PIN A, DOWEL (12X16)

94301-12160

$2.27

BOLT, FLANGE (6X120)

95701-06120-00

$1.49
