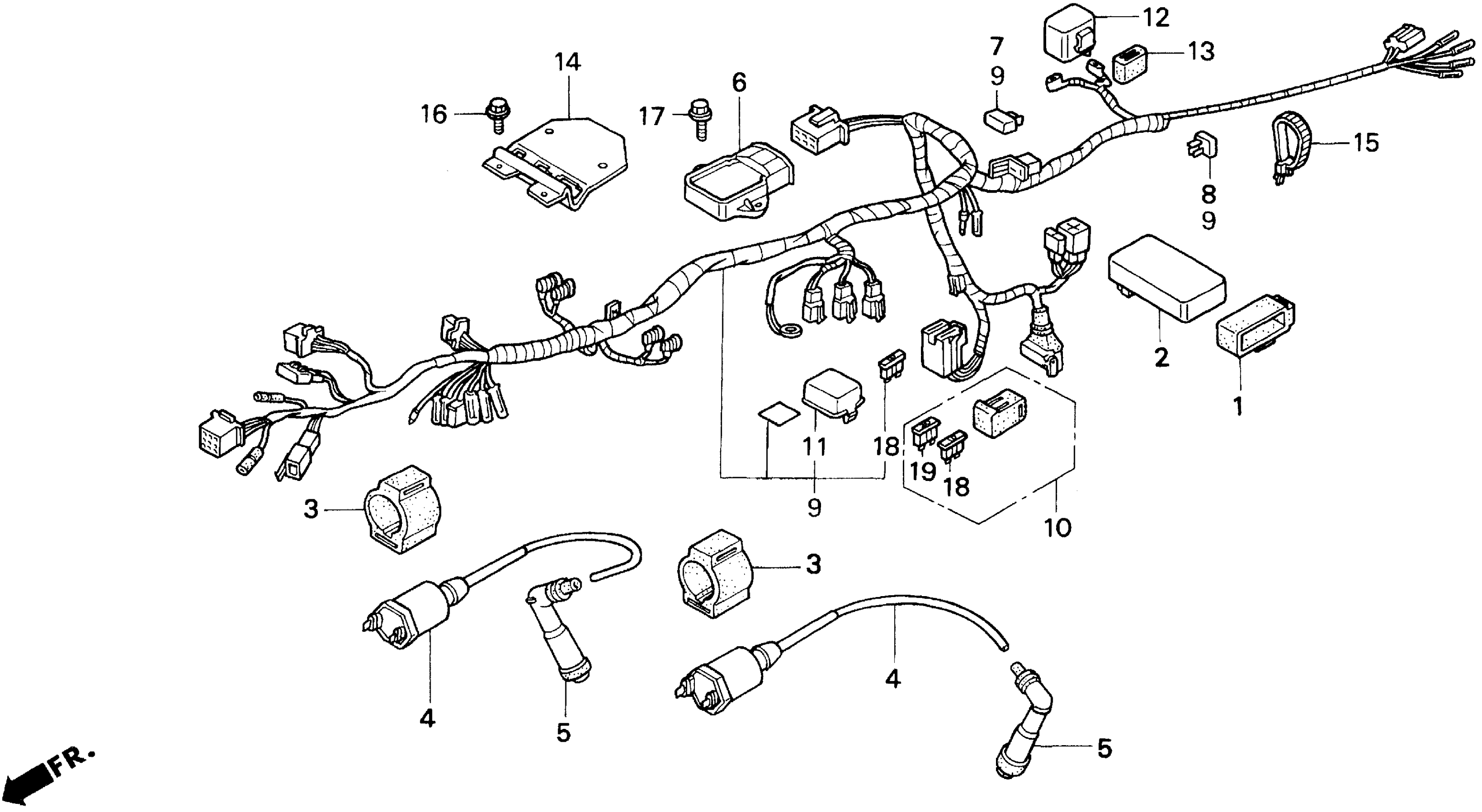

Description

Price

1

CUSHION, IGNITION CONTROL MODULE (CDI) This part replaces 30401-HA0-000.

30401-KYY-900

$4.02

2

MODULE, IGNITION CONTROL (CDI) (SHINDENGEN)

30410-KBG-003

$206.41

3

SUSPENSION, IGNITION COIL

30506-KV3-771

$10.91

4

COIL, IGNITION This part replaces 30510-KBG-000.

30510-MK4-405

$73.78

5

CAP ASSY. This part replaces 30700-KR3-600.

30700-KR3-601

$20.06

6

RECTIFIER ASSY., REGULATE This part replaces 31600-KBG-008.

31600-MV4-010

$257.34

6

RECTIFIER ASSY., REGULATE (SHINDENGEN)

31600-MV4-010

$257.34

7

RECTIFIER ASSY., SILICON (SHINDENGEN)

31700-124-008

$27.27

8

RECTIFIER, SILICON

31700-196-000

$24.24

9

WIRE HARNESS

32100-KBG-000

Unavailable

10

FUSE, SPARE

38210-KBG-005

$16.96

11

CASE, FUSE (2P)

38224-SB2-003

$14.57

12

RELAY, TURN SIGNAL (MITSUBA)

38301-KJ6-743

$59.43

13

SUSPENSION, TURN SIGNAL RELAY (MITSUBA)

38306-KK4-000

$2.87

14

STAY, REGULATOR

50132-KBG-000

$25.21

15

BAND, WIRE HARNESS

90651-MA6-720

$3.63

16

BOLT, FLANGE (6X12)

95701-06012-08

$1.50

17

BOLT, FLANGE (6X16)

96001-06016-00

$0.97

18

FUSE, BLADE (10A)

98200-31000

$1.21

19

FUSE, BLADE (20A)

98200-32000
