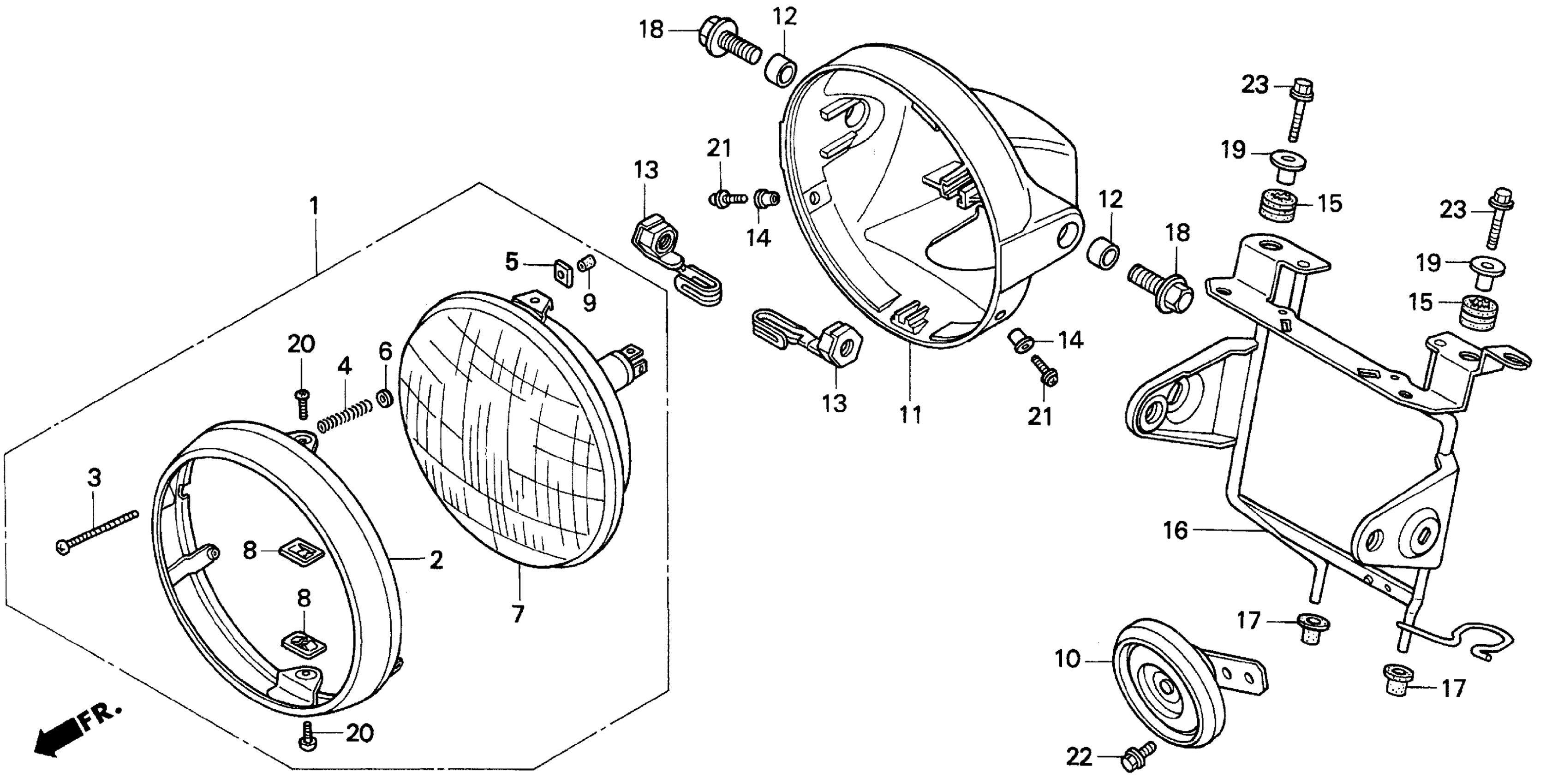

Honda CB250A (99) NIGHTHAWK 250, JPN, VIN# JH2MC240-XK700001 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT ASSY.

33100-KB4-671

Unavailable

2

RIM, HEADLIGHT

33101-443-611

Unavailable

3

SCREW, BEAM ADJUSTING (4MM)

33103-333-000

Unavailable

4

SPRING, HEADLIGHT BEAM ADJUSTING

33107-333-000

$2.20

5

NUT, HEADLIGHT BEAM ADJUSTING

33117-001-023

$2.39

6

WASHER, BEAM ADJUSTING

33119-371-003

$2.84

7

HEADLIGHT UNIT (12V 50/35W)

33120-333-670

$78.71

8

NUT, UNIT HOLDER

33128-292-670

$2.94

9

COVER, SCREW

33136-426-830

$1.89

10

HORN ASSY. (HIGH)

38110-MJ8-672

Unavailable

11

CASE, HEADLIGHT *NH1* (BLACK)

61301-413-000ZA

$92.44

12

COLLAR, HEADLIGHT CASE

61302-465-770

$5.70

13

NUT, L. HEADLIGHT CASE This part replaces 61303-424-770.

61303-424-771

$10.52

14

COLLAR, HEADLIGHT SETTING

61304-379-690

$11.00

15

RUBBER, HEADLIGHT CASE MOUNTING

61304-415-000

$3.47

16

STAY, HEADLIGHT

61311-KBG-010

Unavailable

17

BOOT, HEADLIGHT BRACKET

61312-149-300

$2.56

18

BOLT, SPECIAL FLANGE (12X25)

90125-KW4-000

$26.43

19

COLLAR (6.2X11)

90501-GR2-000

$6.36

20

SCREW, PAN (5X8)

93500-05008-0H

$1.49

21

SCREW-WASHER (5X16)

93892-05016-07

$1.49

22

BOLT, FLANGE (6X12)

95701-06012-07

$1.62

23

BOLT, FLANGE (6X25)

96001-06025-07

$1.49
