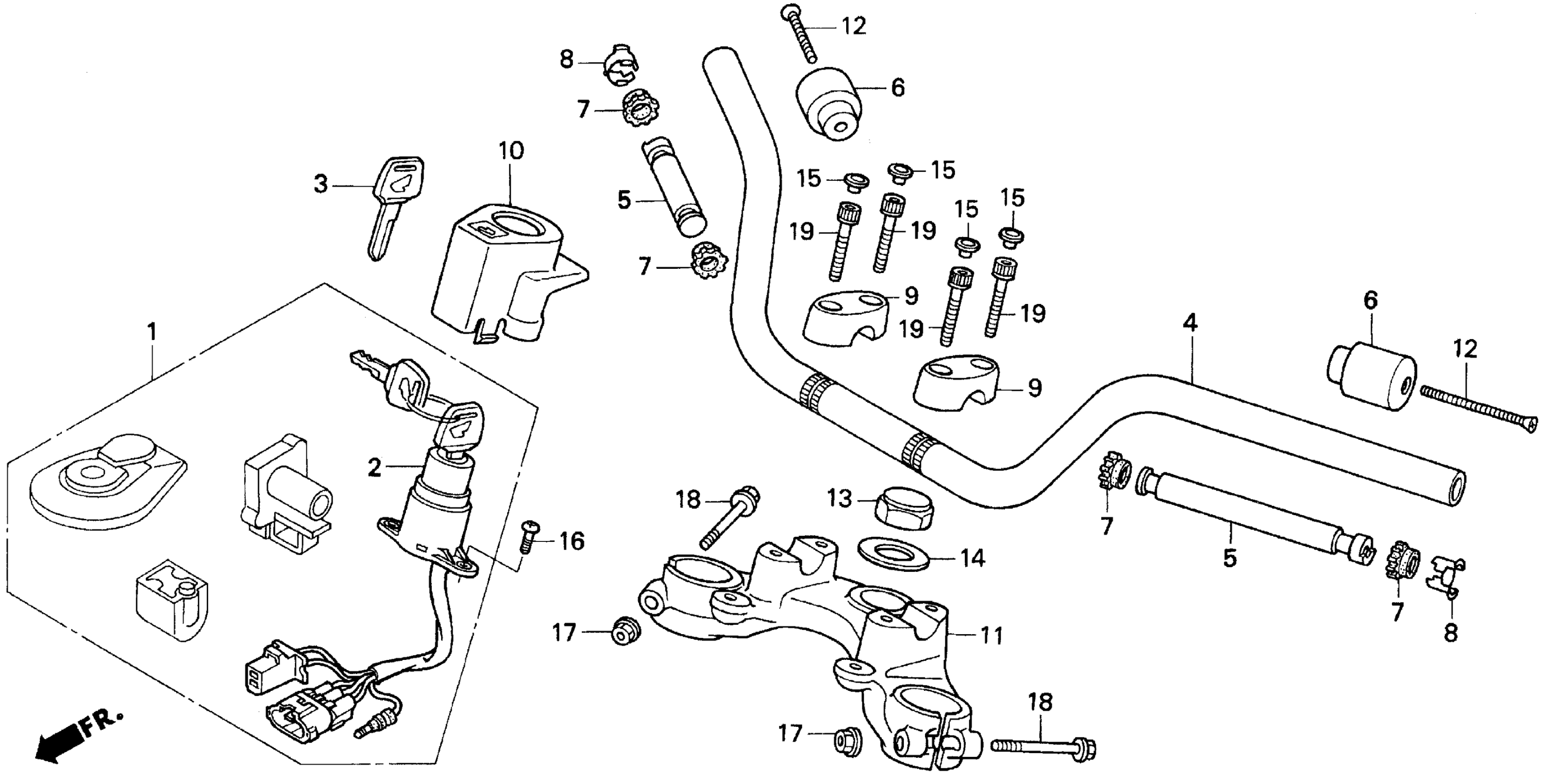

Honda CB250A (99) NIGHTHAWK 250, JPN, VIN# JH2MC240-XK700001 HANDLEBAR Diagram

#

Description
Price

1

LOCK SET

35010-KBG-000

Unavailable

2

SWITCH ASSY., COMBINATION

35100-KBG-007

Unavailable

3

KEY, BLANK (TYPE1) | (Optional). This part replaces 35121-GZ5-003.

35121-GE2-770

$12.34

3

KEY, BLANK (TYPE2) | (Optional). This part replaces 35122-GZ5-003.

35122-GE2-770

$12.34

4

HANDLEBAR

53100-KBG-700

Unavailable

5

WEIGHT B, HANDLEBAR

53105-KV3-000

$15.87

6

WEIGHT, HANDLEBAR

53105-MK4-620

$13.78

7

RUBBER A, HANDLE WEIGHT

53106-KR3-000

$3.74

8

RING, HANDLE WEIGHT SNAP

53108-KR3-770

$5.95

9

HOLDER, HANDLEBAR (UPPER)

53131-371-000

$29.75

10

COVER, IGNITION SWITCH

53133-KBG-000

Unavailable

11

BRIDGE, FORK TOP

53231-KBG-000

$175.50

12

SCREW, OVAL (6X65)

90191-KBG-000

$4.71

13

NUT, STEERING STEM

90304-159-000

$6.71

14

WASHER, STEERING STEM

90503-051-870

$2.62

15

CAP, SOCKET BOLT

91456-371-770

$3.31

16

SCREW, PAN (6X12)

93500-06012-0G

$0.91

17

NUT, FLANGE (8MM)

94050-08000

$0.87

18

BOLT, FLANGE (8X55)

96300-08055-00

$2.21

19

BOLT, SOCKET (8X32)

96600-08032-17

Unavailable
