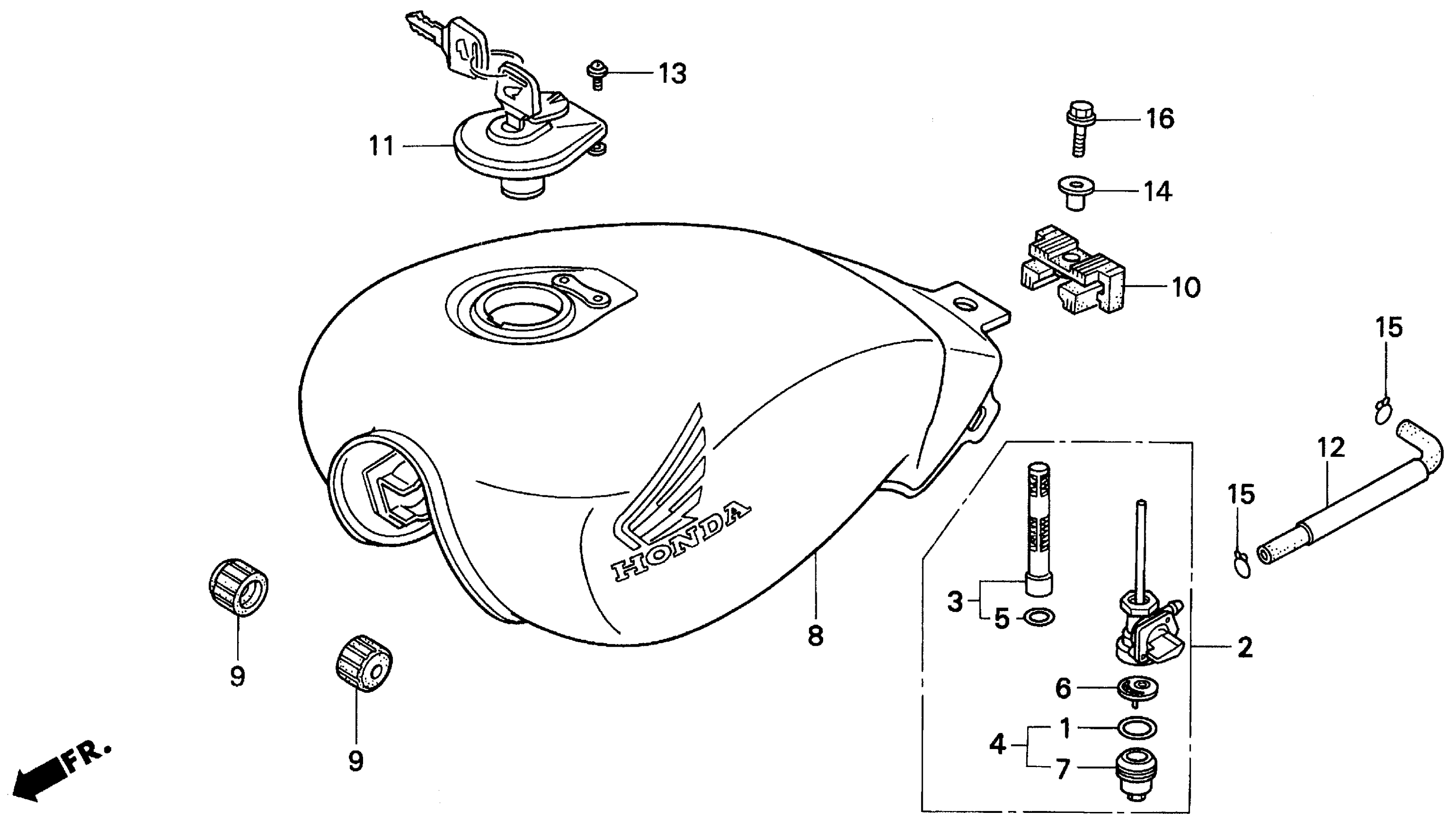

Honda CB250A (99) NIGHTHAWK 250, JPN, VIN# JH2MC240-XK700001 FUEL TANK Diagram

GASKET, FUEL STRAINER CUP

16173-001-004

$5.17

PETCOCK ASSY. This part replaces 16950-KBG-670.

16950-KBG-671

$127.03

PETCOCK ASSY.

16950-KBG-671

$127.03

SCREEN, FUEL STRAINER

16952-KBG-670

Unavailable

CUP SET, FUEL STRAINER

16953-GG2-731

$21.66

O-RING

16075-GHB-720

$2.93

O-RING This part replaces 16195-657-300.

16075-GHB-720

$2.93

O-RING This part replaces 16958-MA1-731.

16075-GHB-720

$2.93

FILTER, CUP

16959-471-831

$9.35

TANK SET, FUEL (TYPE7) (WL) This part replaces 17520-KBG-980ZD.

17520-KBG-981ZD

Unavailable

TANK SET, FUEL (TYPE7) (WL)

17520-KBG-981ZD

Unavailable

CUSHION, FR. FUEL TANK

17611-KE8-000

$4.22

RUBBER, FR. FUEL TANK This part replaces 17611-286-000.

17611-KE8-000

$4.22

CUSHION, RR. FUEL TANK

17613-MV4-000

$21.95

CAP, FUEL FILLER This part replaces 17620-KL8-020.

17620-KL8-030

$106.28

TUBE, FUEL

17681-KBG-000

$9.26

SCREW-WASHER (4X6)

45319-634-003

$2.48

COLLAR, FUEL TANK MOUNTING

90324-MA1-000

$8.20

CLIP, TUBE (B10)

95002-02100

$1.90

BOLT, FLANGE (8X22)

95701-08022-00

$2.16
