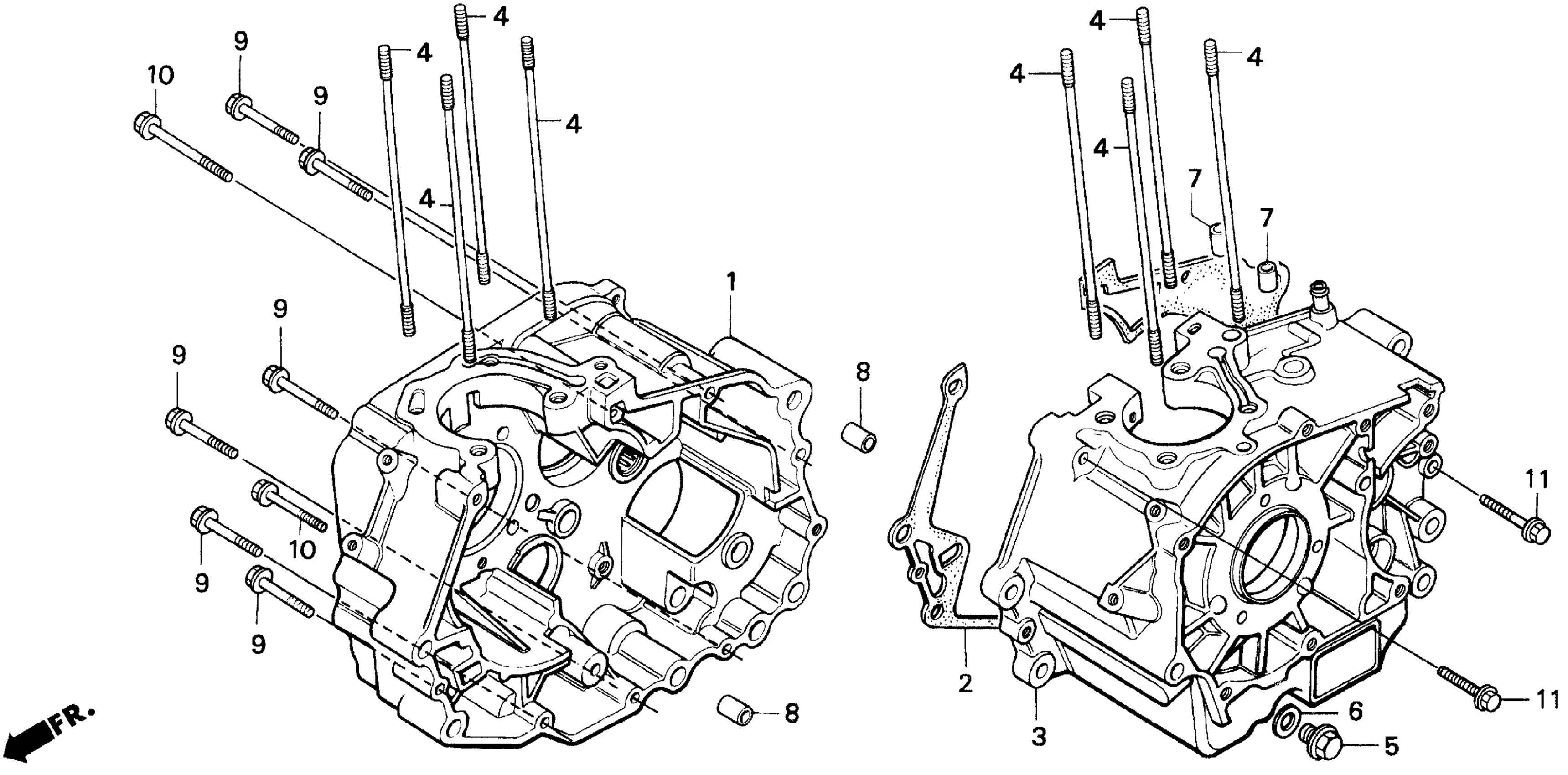

Honda CB250A (99) NIGHTHAWK 250, JPN, VIN# JH2MC240-XK700001 CRANKCASE Diagram

CRANKCASE, R.

11100-KBG-670

$432.04

GASKET, CRANKCASE This part replaces 11191-KBG-771.

11191-KBG-773

$21.32

CRANKCASE, L.

11200-KBG-670

$430.61

BOLT, CYLINDER STUD

90031-KB4-670

$11.86

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.00

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.12

PIN, DOWEL (8X14)

94301-08140

$2.04

PIN, DOWEL (12X20)

94301-12200

$2.25

BOLT, FLANGE (6X40)

95701-06040-00

$1.71

BOLT, FLANGE (6X65)

95701-06065-00

$1.38

BOLT, FLANGE (6X40)

96001-06040-00

$1.97
