Description

Price

1

WASHER, LOCK (16MM)

15451-KR3-601

$4.69

2

CLUTCH OUTER

22100-KB4-670

$277.41

3

GUIDE, CLUTCH (OUTER)

22116-KB4-671

$24.97

4

CENTER, CLUTCH

22121-KR3-601

$93.10

5

SEAT, JUDDER SPRING

22125-KB4-670

$10.33

6

DISK, CLUTCH FRICTION This part replaces 22201-KBG-900.

22201-KBG-A00

$17.70

7

PLATE, CLUTCH

22321-KE8-000

$12.71

8

PLATE, CLUTCH PRESSURE

22350-KR3-600

$44.71

9

PLATE, CLUTCH LIFTER

22361-437-000

$14.82

10

COLLAR, CLUTCH LIFTER

22362-KR3-600

$23.92

11

SPRING, CLUTCH This part replaces 22401-KB4-670.

22401-KT0-000

$5.10

11

SPRING, CLUTCH

22401-KT0-000

$5.10

12

SPRING, JUDDER

22402-KB4-670

$30.75

13

PIN, CLUTCH LIFTER

22820-KK0-000

$5.93

14

BOLT, SPECIAL FLANGE (6X22)

90050-357-000

$3.35

15

NUT, LOCK (16MM)

90231-KB5-720

$4.69

16

WASHER, THRUST (12MM) (TOYO)

90452-147-003

$3.62

17

WASHER, THRUST (20MM)

90459-KB4-670

$4.19

18

WASHER B, SPLINE (20MM)

90461-107-000

$4.58

19

BEARING, NEEDLE (12MM) (NTN)

91001-147-003

$12.58

20

CLIP, NEEDLE THRUST BEARING (12MM)

91012-KF0-000

$2.97

21

DISK, CLUTCH FRICTION

22201-KBW-900

$15.56

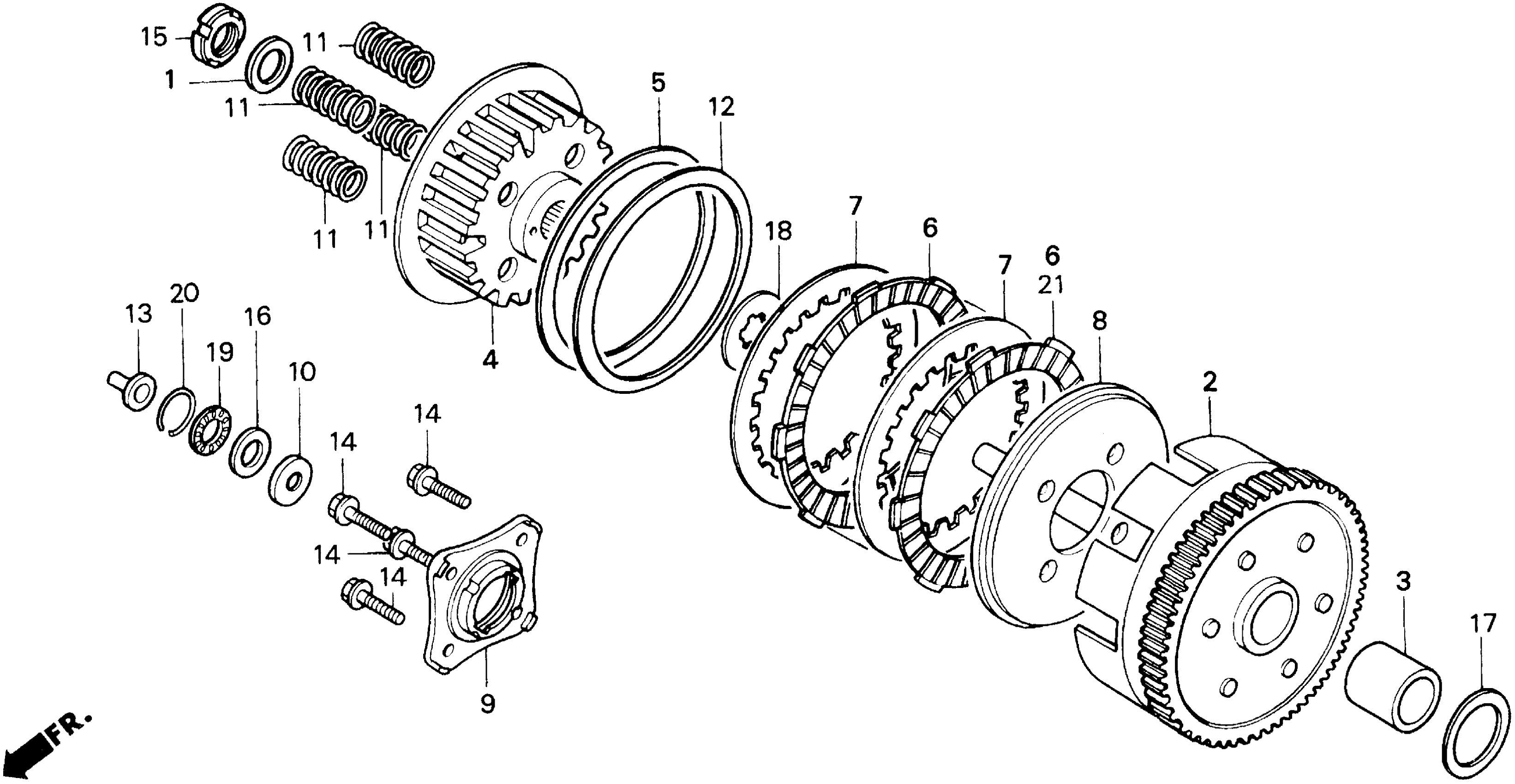

Honda CB250A (99) NIGHTHAWK 250, JPN, VIN# JH2MC240-XK700001 CLUTCH Diagram
