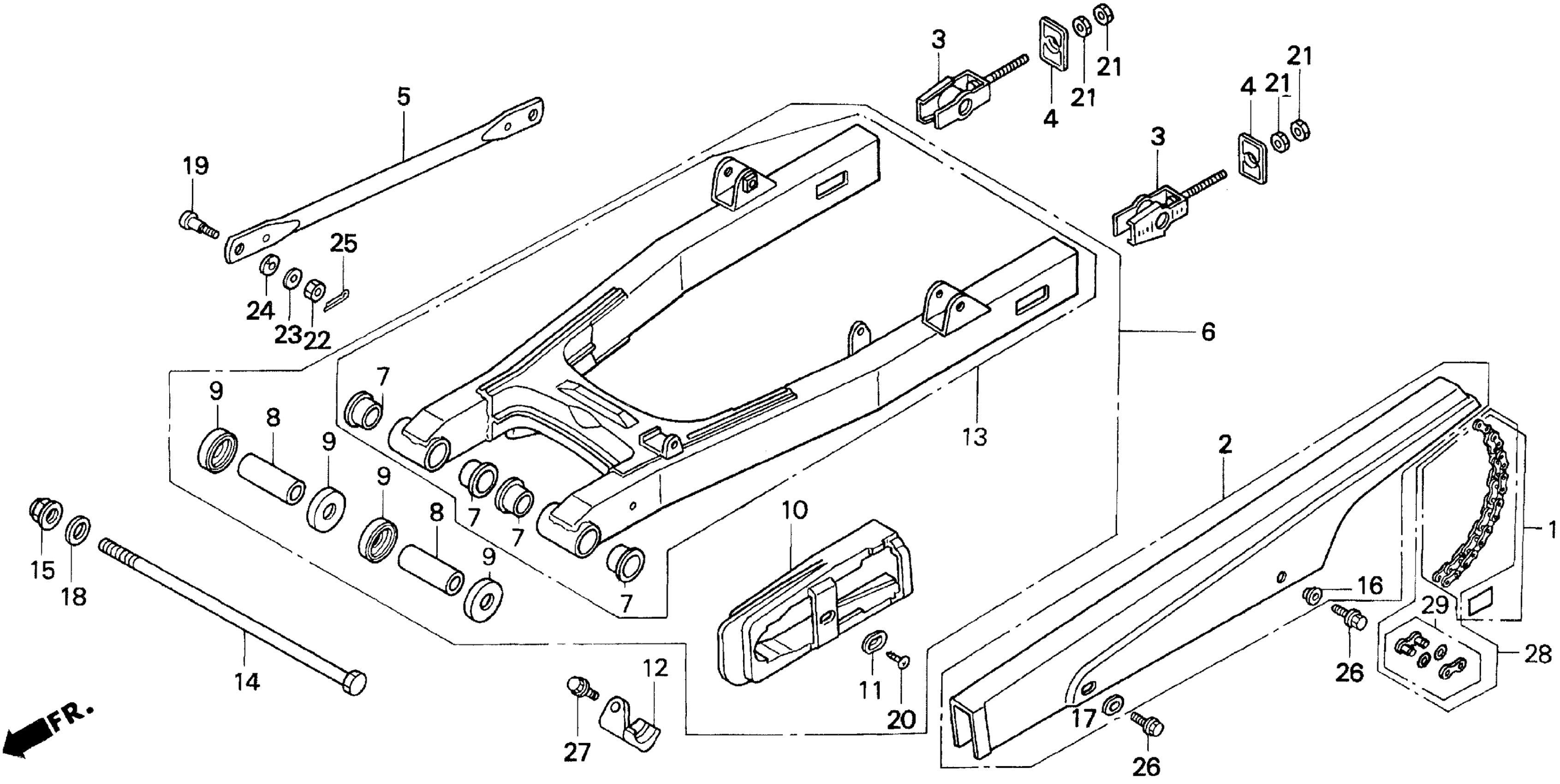

Honda CB250A (96) NIGHTHAWK, JPN, VIN# JH2MC240-TK500001 TO JH2MC240-TK500832 SWINGARM Diagram

#

Description
Price

1

CHAIN SET, DRIVE (RK520MO-Z2-106LE) (RK EXCEL)

40540-KPM-306

$178.90

1

CHAIN SET, DRIVE (RK520MO-Z2-106LE) (RK EXCEL) This part replaces 40550-KBG-406.

40540-KPM-306

$178.90

1

CHAIN SET, DRIVE (DID520VC.6-106LE) (DAIDO) (NOT AVAILABLE)

40550-KBG-405

Unavailable

2

CASE, DRIVE CHAIN

40510-KC1-000

$81.39

3

ADJUSTER, CHAIN

40543-KK4-010

$38.43

4

RETAINER, CHAIN ADJUSTER

40546-GZ4-670

$15.56

5

ARM, RR. BRAKE STOPPER

43431-413-010

$14.98

7

BUSH, SWINGARM This part replaces 52108-356-006.

52109-KC1-003

$19.38

7

BUSH, SWINGARM

52109-KC1-003

$19.38

8

COLLAR, R. SWINGARM

52141-356-010

$86.90

9

DUST SEAL (31X40.5X7.1) (NOK)

52144-GC4-005

$11.16

10

SLIDER, CHAIN

52170-KBG-000

$58.20

11

WASHER, CHAIN SLIDER

52171-KR6-000

$2.57

12

SLIDER, CHAIN (LOWER)

52175-GM7-700

$17.34

13

SWINGARM SUB-ASSY., RR.

52200-KBG-305

Unavailable

14

BOLT, SWINGARM PIVOT

90121-KB4-000

$42.84

15

NUT, U (14MM)

90305-GE8-003

$3.86

16

WASHER (6X20)

90512-KF9-900

$3.06

16

WASHER (6X20) (L. SIDE ONLY) This part replaces 90512-422-000.

90512-KF9-900

$3.06

17

WASHER (6X9)

90513-405-000

$2.09

18

WASHER, SWINGARM PIVOT BOLT

90526-268-000

$3.10

19

BOLT A, BRAKE STOPPER ARM

92812-20000

Unavailable

20

SCREW, TAPPING (5X12)

93901-25280

$1.49

21

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.49

21

NUT, HEX. (6MM)

94001-06200-0S

$1.49

22

NUT, HEX. (8MM)

94001-08000-0S

$1.49

23

WASHER, PLAIN (8MM)

94101-08000

$1.49

24

WASHER, SPRING (10MM)

94111-10000

$1.49

25

PIN, SPLIT (2.0X15)

94201-20150

$1.49

26

BOLT, FLANGE (6X10)

95701-06010-07

$1.62

27

BOLT, FLANGE (6X14)

95701-06014-07

$1.49
