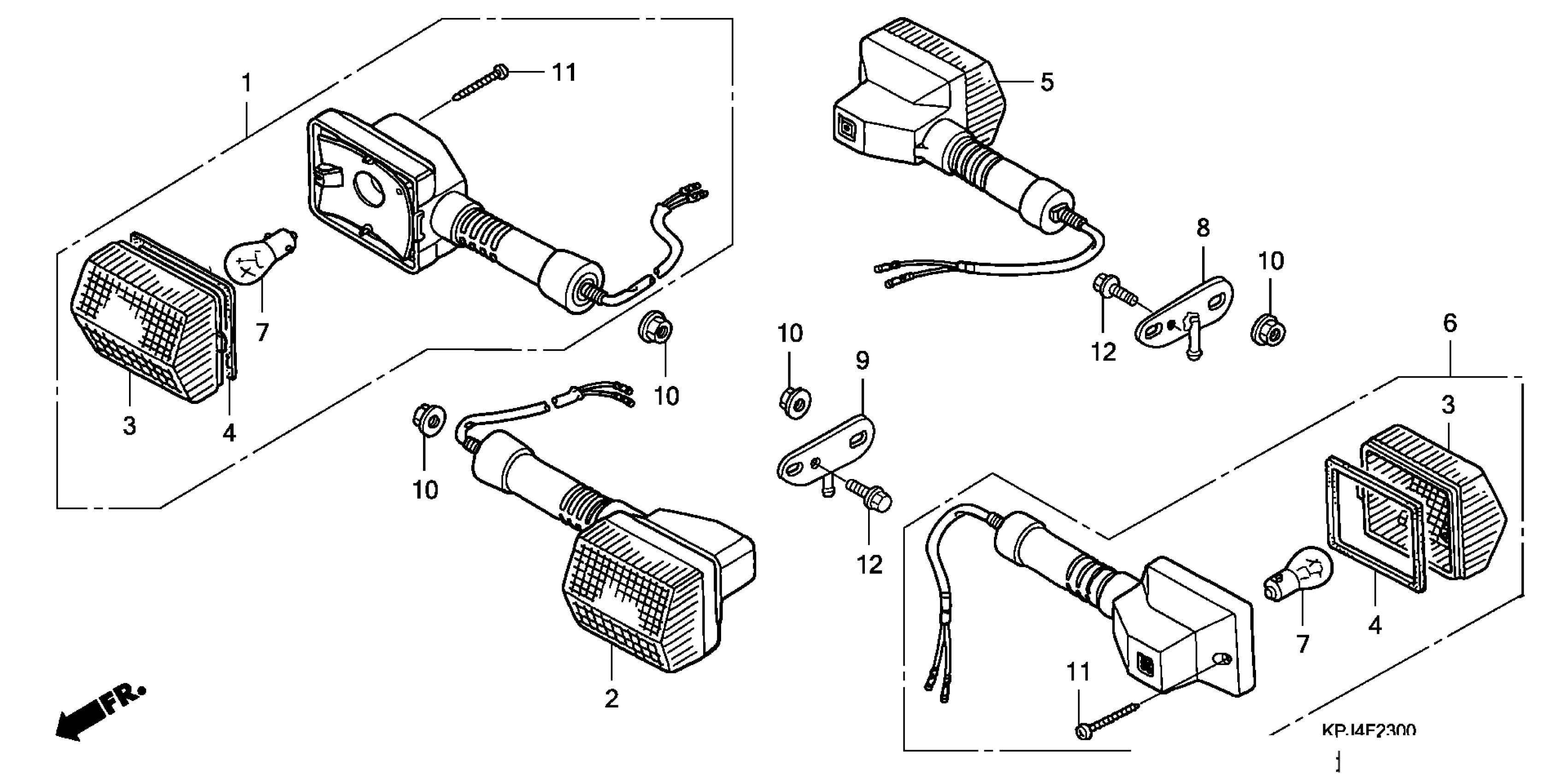

Honda CB250A (08) NIGHTHAWK, JPN, VIN# JH2MC240-8K500001 TURN SIGNAL Diagram

TURN SIGNAL ASSY., R. FR. (12V 23W)

33300-KC1-920

Unavailable

TURN SIGNAL ASSY., L. FR. (12V 23W)

33350-KC1-920

Unavailable

LENS, TURN SIGNAL (COO) This part replaces 33402-MG2-003.

33402-MGW-305

$10.52

GASKET, LENS

33407-MG2-003

$5.94

TURN SIGNAL ASSY., R. RR. (12V 23W)

33500-KBG-671

Unavailable

TURN SIGNAL ASSY., L. RR. (12V 23W)

33550-KBG-671

Unavailable

BULB, TURN SIGNAL (12V 23W) (STANLEY)

34905-268-671

$2.79

STAY, R. RR. TURN SIGNAL

50186-KBG-000

$19.04

STAY, L. RR. TURN SIGNAL

50187-KBG-000

Unavailable

NUT, FLANGE (10MM)

90308-KE1-000

$5.52

SCREW, TAPPING (3X25)

91901-MG2-003

$2.70

BOLT, FLANGE (8X14)

95701-08014-07

$1.49
