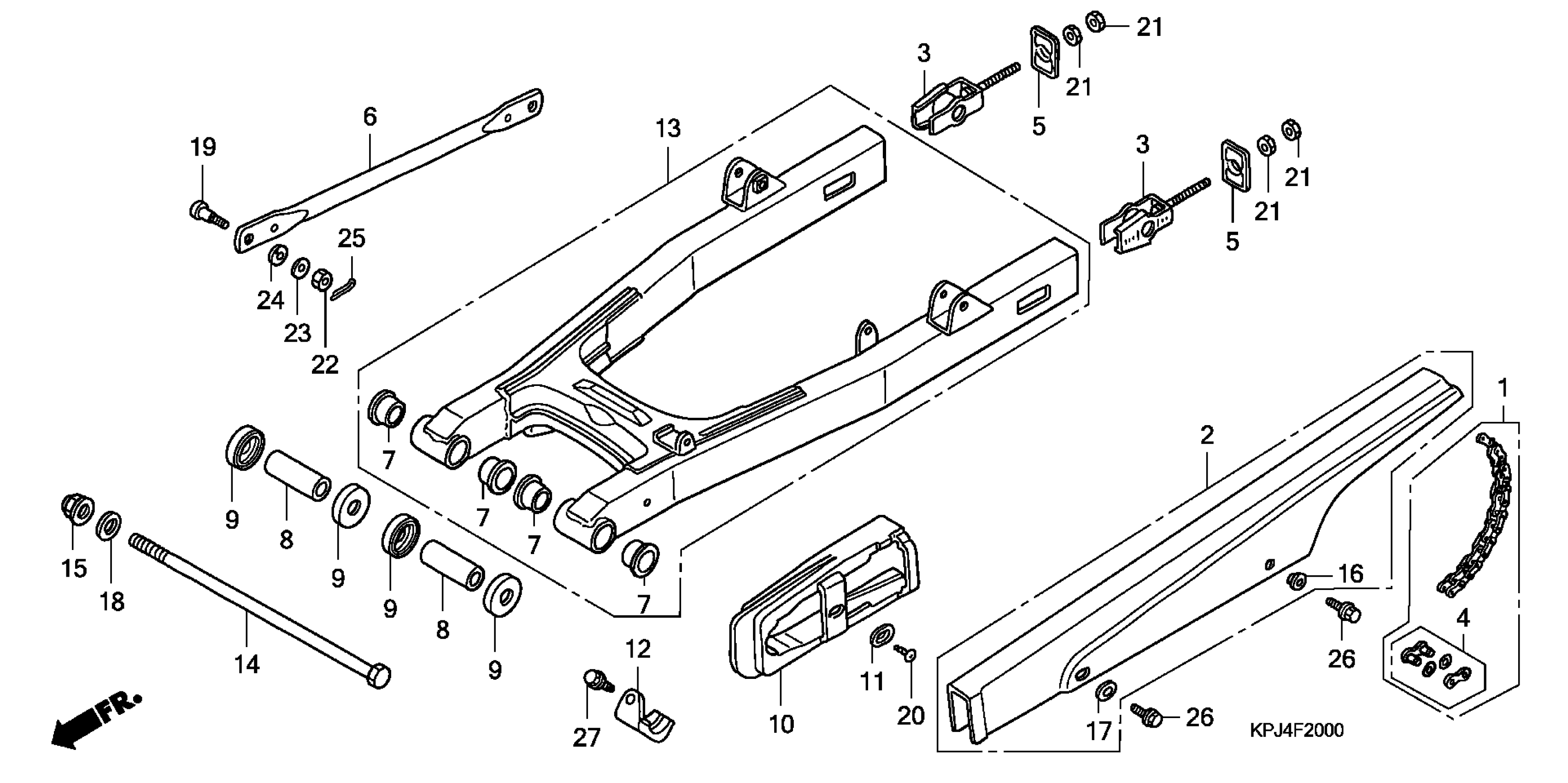

Honda CB250A (08) NIGHTHAWK, JPN, VIN# JH2MC240-8K500001 SWINGARM Diagram

#

Description
Price

1

*40540-KPM-305 This part replaces 06405-KCN-P00.

06405-KPM-P00

Unavailable

1

CHAIN SET, DRIVE (RK520 112L-120L) (RK EXCEL) (STANDARD LINK 106L) (NOT AVAILABLE)

06405-KCN-P10

Unavailable

2

CASE, DRIVE CHAIN

40510-KC1-000

$74.12

3

ADJUSTER, CHAIN

40543-KK4-010

$34.99

4

MASTER LINK (DAIDO)

40545-KCN-305

$9.61

4

MASTER LINK (RK EXCEL)

40545-KCN-306

$9.26

5

RETAINER, CHAIN ADJUSTER

40546-GZ4-670

$14.16

6

ARM, RR. BRAKE STOPPER

43431-413-010

$13.64

7

BUSH, SWINGARM This part replaces 52108-356-006.

52109-KC1-003

$17.64

7

BUSH, SWINGARM

52109-KC1-003

$17.64

8

COLLAR, R. SWINGARM

52141-356-010

$79.12

9

DUST SEAL (31X40.5X7.1) (NOK)

52144-GC4-005

$10.16

10

SLIDER, CHAIN

52170-KBG-000

$52.99

11

WASHER, CHAIN SLIDER

52171-KR6-000

$2.35

12

SLIDER, CHAIN (LOWER)

52175-GM7-700

$15.80

13

SWINGARM SUB-ASSY., RR.

52200-KBG-305

Unavailable

14

BOLT, SWINGARM PIVOT

90121-KB4-000

$39.01

15

NUT, U (14MM)

90305-GE8-003

$3.59

16

WASHER (6X20)

90512-KF9-900

$2.85

16

WASHER (6X20) (L. SIDE ONLY) This part replaces 90512-422-000.

90512-KF9-900

$2.85

17

WASHER (6X9)

90513-405-000

$2.00

18

WASHER, SWINGARM PIVOT BOLT

90526-268-000

$2.88

19

BOLT A, BRAKE STOPPER ARM

92812-20000

Unavailable

20

SCREW, TAPPING (5X12)

93901-25280

$0.83

21

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.19

21

NUT, HEX. (6MM)

94001-06200-0S

$1.19

22

NUT, HEX. (8MM)

94001-08000-0S

$1.19

23

WASHER, PLAIN (8MM)

94101-08000

$0.75

24

WASHER, SPRING (10MM)

94111-10000

$1.22

25

PIN, SPLIT (2.0X15)

94201-20150

$0.94

26

BOLT, FLANGE (6X10)

95701-06010-07

$1.48

27

BOLT, FLANGE (6X14)

95701-06014-07

$1.32
