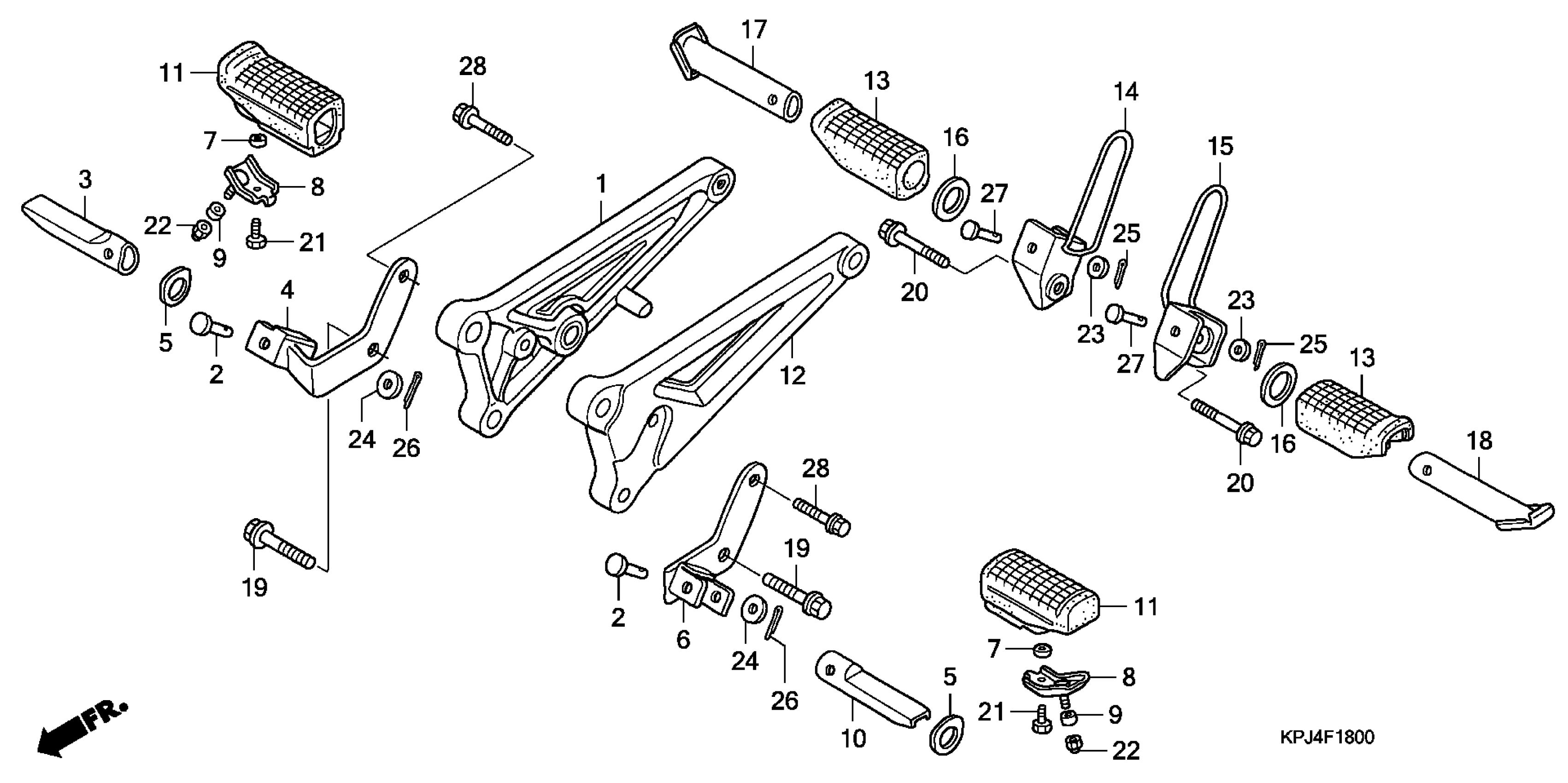

Honda CB250A (08) NIGHTHAWK, JPN, VIN# JH2MC240-8K500001 STEP Diagram

#

Description
Price

1

HOLDER, R. STEP

50600-KC1-000

$143.12

2

PIN, MAIN STEP BAR JOINT

50603-KR0-010

$4.12

3

BAR, R. MAIN STEP

50612-KBG-000

$22.57

4

BRACKET, R. STEP

50614-KBG-000

$32.17

5

PLATE, MAIN STEP SIDE

50614-KE8-000

$4.00

6

BRACKET, L. STEP

50615-KBG-000

$32.17

7

COLLAR (6.5X11X3)

50618-KE8-000

$2.62

8

PLATE, MAIN STEP (LOWER)

50619-KE5-000

$8.77

9

COLLAR (6.4X10X7)

50631-KC1-730

$2.00

10

BAR, L. MAIN STEP

50643-KBG-000

$22.57

11

RUBBER, MAIN STEP

50661-MF2-000

$10.24

12

HOLDER, L. STEP

50700-KC1-000

$143.12

13

RUBBER, PILLION STEP

50710-KE8-000

$11.31

14

BRACKET, R. PILLION STEP

50711-KBG-000

$23.28

15

BRACKET, L. PILLION STEP

50712-KBG-000

$24.32

16

PLATE, PILLION STEP SIDE

50713-KC1-700

$2.83

17

BAR, R. PILLION STEP

50715-KBG-000

$22.97

18

BAR, L. PILLION STEP

50718-KBG-000

$22.97

19

BOLT, FLANGE (10X40)

90105-KBG-000

$5.09

20

BOLT, FLANGE (10X50)

90106-KBG-000

Unavailable

21

BOLT, FLANGE (6X12) This part replaces 92101-06012-0G.

96001-06012-07

Unavailable

21

BOLT, FLANGE (6X12) This part replaces 92201-06012-0G.

96001-06012-07

Unavailable

21

BOLT, FLANGE (6X12)

96001-06012-07

Unavailable

22

NUT, CAP (6MM)

94021-06070-0S

$1.48

23

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

23

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

23

WASHER, PLAIN (6MM)

94101-06800

Unavailable

24

WASHER, PLAIN (8MM)

94101-08000

$0.75

25

PIN, COTTER (1.6X25) This part replaces 94201-16150.

94201-16250

$0.94

25

PIN, COTTER (1.6X25)

94201-16250

$0.94

26

PIN, SPLIT (2.0X15)

94201-20150

$0.94

27

PIN B, PILLION STEP

95015-82000

$2.19

28

BOLT, FLANGE (8X38)

95801-08038-07

Unavailable
