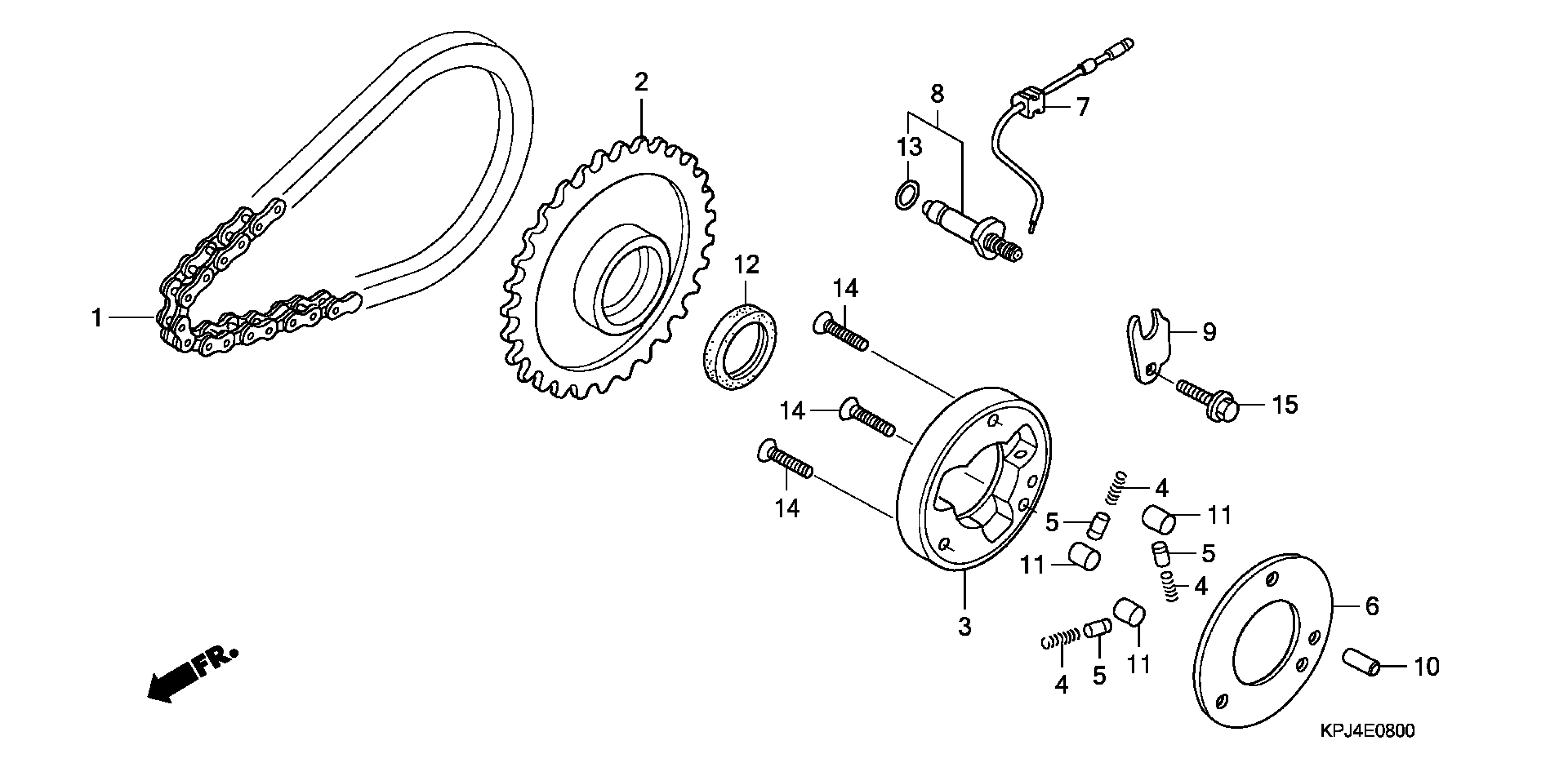

Honda CB250A (08) NIGHTHAWK, JPN, VIN# JH2MC240-8K500001 STARTING CLUTCH Diagram

CHAIN, STARTING (56L)

28101-KB4-671

$38.46

SPROCKET, STARTING (38T)

28110-KB4-671

$103.64

CLUTCH OUTER, STARTING

28120-201-040

$87.06

SPRING, STARTING CLUTCH ROLLER

28125-253-020

$5.57

CAP, STARTING CLUTCH ROLLER SPRING

28126-253-030

$4.53

PLATE, STARTING CLUTCH SIDE

28128-253-030

$6.08

SUB-WIRE, NEUTRAL SWITCH

32975-KC2-960

$5.80

CONTACT, NEUTRAL SWITCH

35750-GS3-003

$8.50

PLATE, NEUTRAL SWITCH SETTING

35752-KEN-620

$5.64

PIN, KNOCK (6X13.5)

90701-250-000

$2.70

ROLLER (10.2X9.5)

91101-253-020

$3.98

OIL SEAL (22X31X5) (ARAI)

91205-965-003

$5.80

O-RING (7X1.7)

91312-107-000

$3.18

SCREW, FLAT (6X20)

93600-06020-0A

$1.49

BOLT, FLANGE (6X12)

95701-06012-00

$1.62
