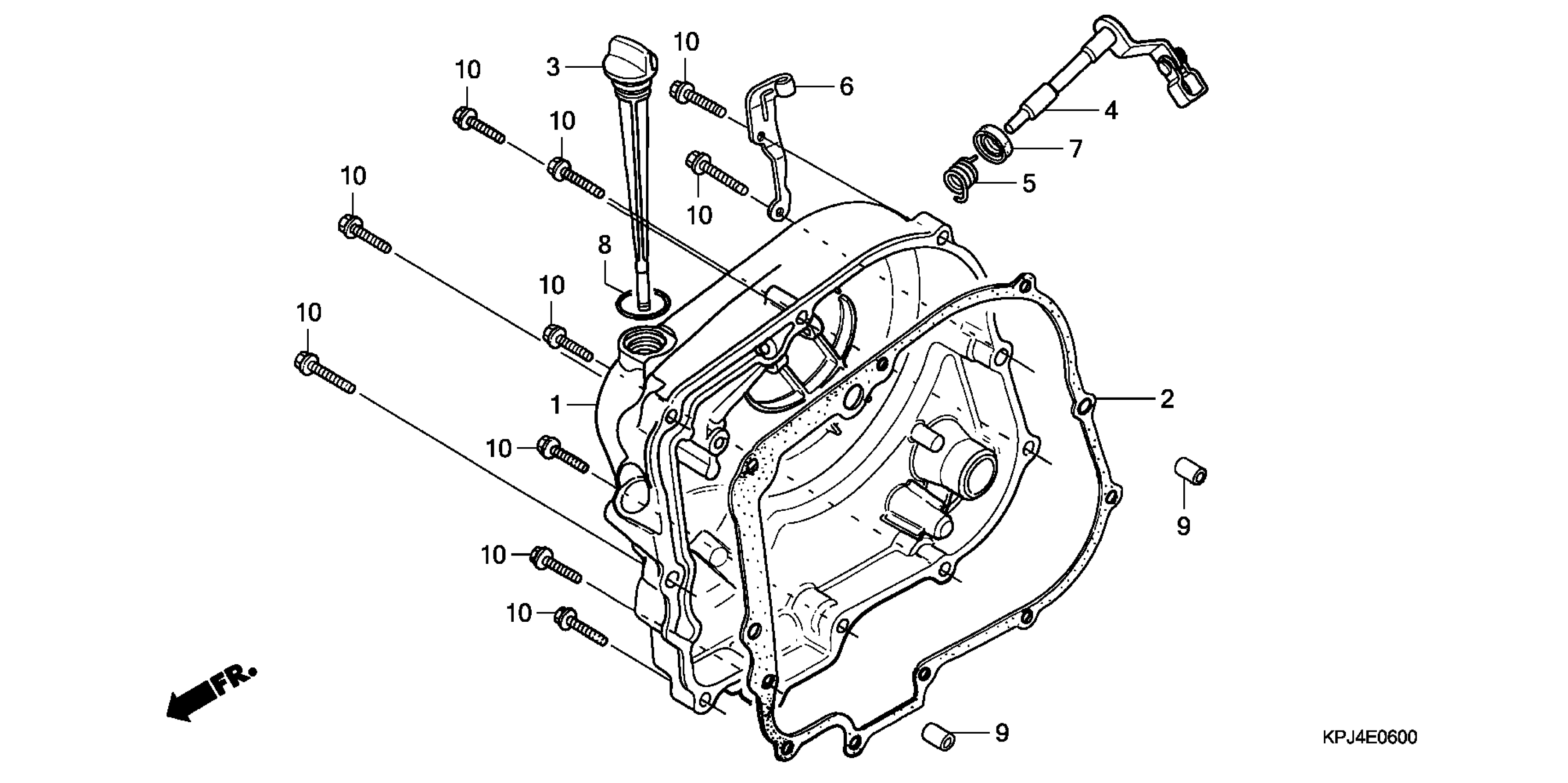

Honda CB250A (08) NIGHTHAWK, JPN, VIN# JH2MC240-8K500001 RIGHT CRANKCASE COVER Diagram

COVER, R. CRANKCASE

11330-KR3-600

$224.56

GASKET, R. This part replaces 11393-KBG-771.

11393-KBG-773

$19.07

DIPSTICK, OIL

15650-KB4-670

$12.83

LEVER, CLUTCH

22810-KR3-600

$44.34

SPRING, CLUTCH LEVER

22815-KE1-000

$4.21

RECEIVER, CLUTCH CABLE

22838-KR3-600

$22.28

OIL SEAL (12X18X5) (ARAI)

91204-KK0-003

$4.83

O-RING (18X3)

91307-035-000

$2.75

PIN, DOWEL (8X14)

94301-08140

$2.76

BOLT, FLANGE (6X40)

96001-06040-00

$2.75
