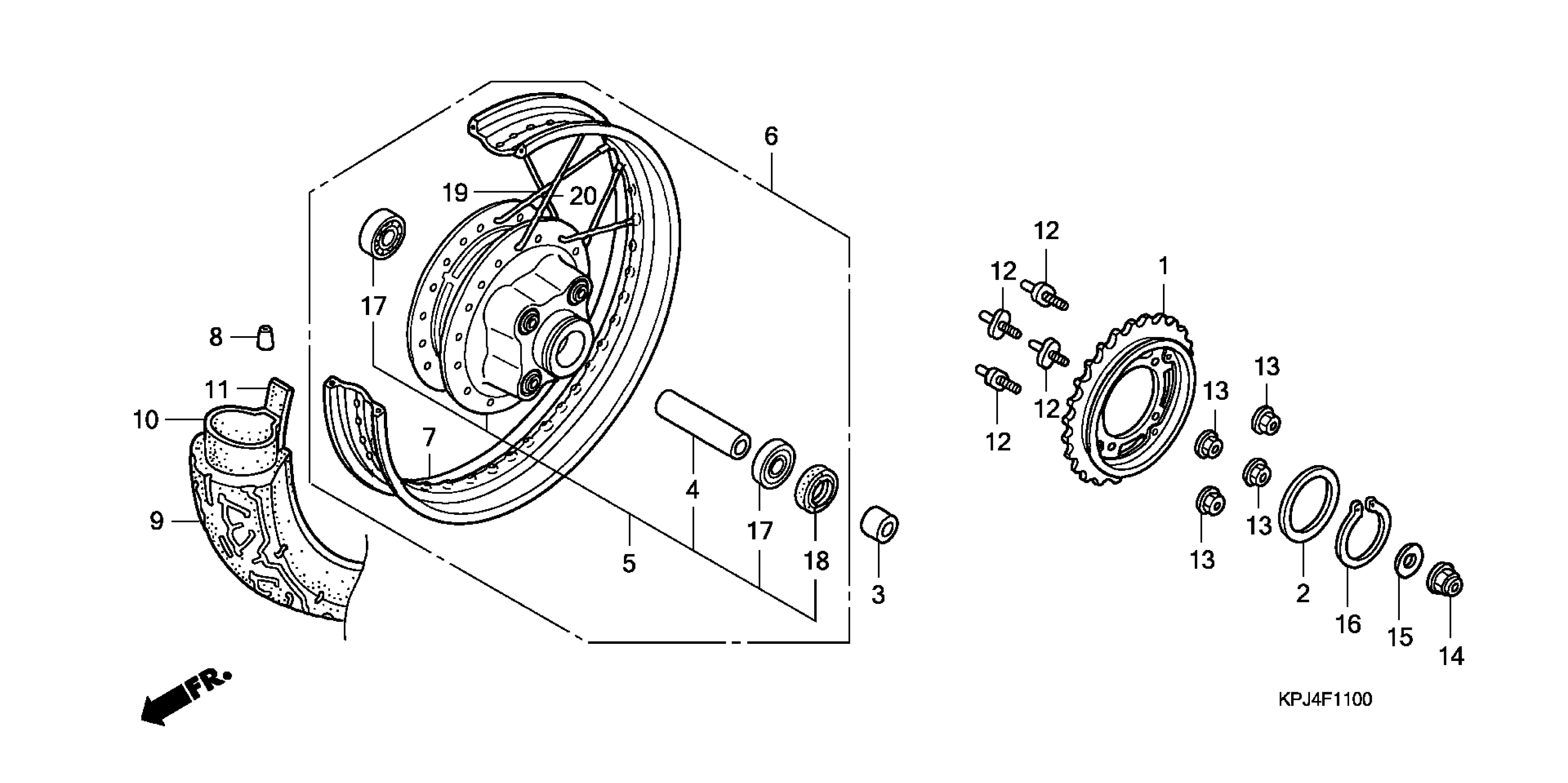

Honda CB250A (08) NIGHTHAWK, JPN, VIN# JH2MC240-8K500001 REAR WHEEL Diagram

#

Description
Price

1

SPROCKET, FINAL DRIVEN (33T)

41200-KBG-000

$121.75

2

WASHER (58X67X2)

41202-KB4-000

$5.85

3

COLLAR, RR. WHEEL SIDE

42312-KK4-000

Unavailable

4

COLLAR, RR. WHEEL DISTANCE

42620-KB4-000

$16.62

5

HUB SUB-ASSY., RR.

42635-KPJ-670

Unavailable

6

WHEEL SUB-ASSY., RR.

42650-KPJ-672

$690.11

7

RIM, RR. WHEEL

42701-KBG-023

Unavailable

8

WEIGHT, BALANCE (15G)

42704-MEG-003

$8.08

8

WEIGHT, BALANCE (20G)

42705-MEG-003

$8.08

9

TIRE (120/90-16) This part replaces 42711-KBG-024.

42711-KBG-034

$144.87

10

TUBE, TIRE (120/90-16) (DUNLOP)

42712-KW3-004

$41.08

10

TUBE, TIRE (120/90-16) (DUNLOP) This part replaces 42712-447-772.

42712-KW3-004

$41.08

11

FLAP, FR. TIRE (BS) This part replaces 42713-447-672.

44713-118-003

$7.20

11

FLAP, TIRE (1.85 X16) (BS)

44713-118-003

$7.20

12

BOLT, DRIVEN SPROCKET FIXING

90128-KK4-000

$7.80

13

NUT, U (10MM) (FUSE RASHI)

90304-GE8-003

$3.67

14

NUT, U (14MM)

90305-GE8-003

$3.86

15

WASHER, RR. AXLE

90504-KR3-000

$5.62

16

CIRCLIP (58MM)

90664-216-000

$5.55

17

BEARING, RADIAL BALL (6302U)

91051-KC2-881

$15.21

18

OIL SEAL (28X42X7) (ARAI) This part replaces 91257-230-000.

91257-230-003

$11.31

18

OIL SEAL (28X42X7) (ARAI)

91257-230-003

$11.31

18

OIL SEAL (28X42X7) (ARAI) This part replaces 91257-230-005.

91257-230-003

$11.31

19

SPOKE SET B (9X131.5) (INSIDE)

97396-52103-P0

$6.44

20

SPOKE SET B (9X131.0) (OUTSIDE)

97716-52102-P0

$6.25
