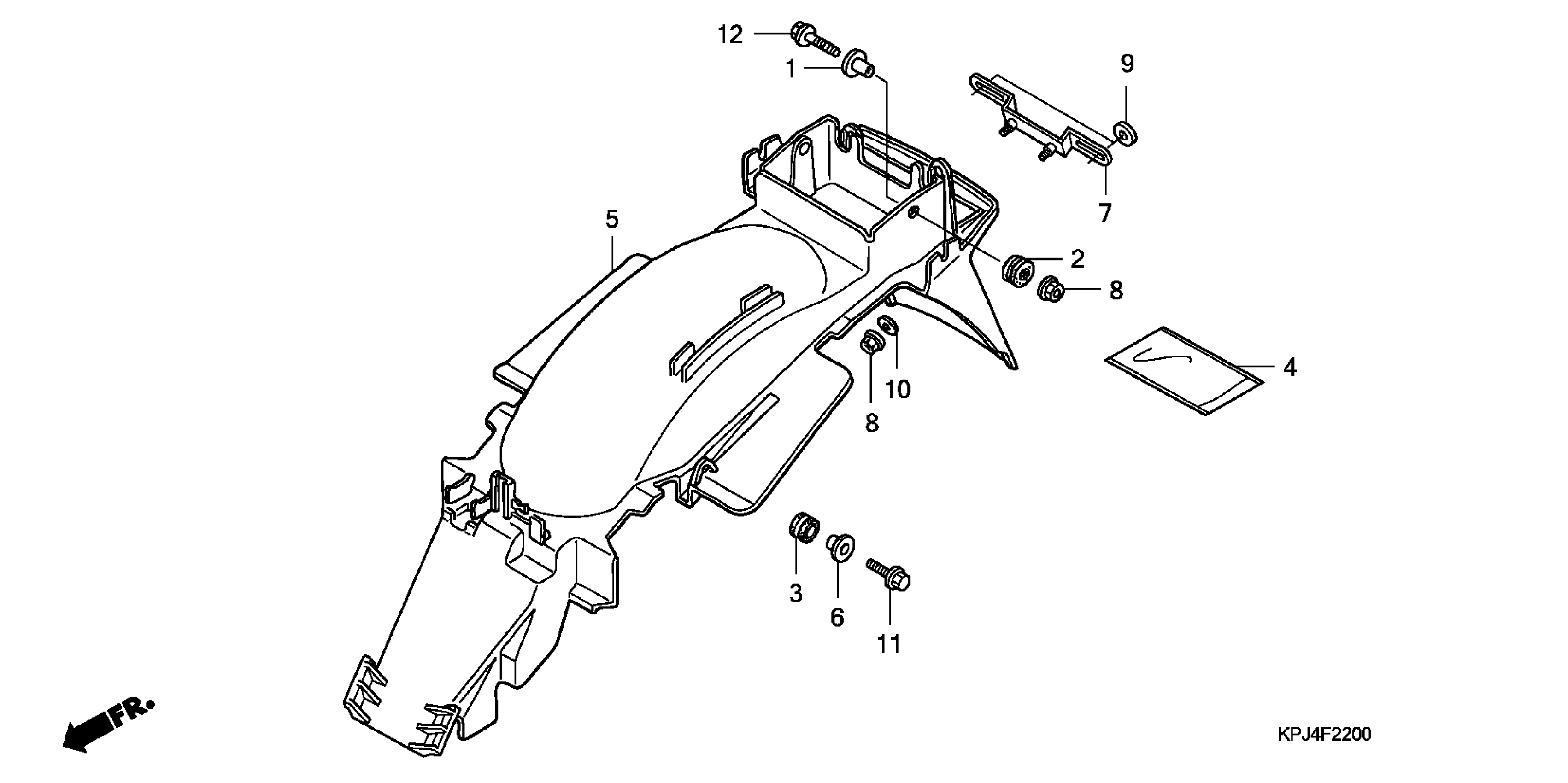

Honda CB250A (08) NIGHTHAWK, JPN, VIN# JH2MC240-8K500001 REAR FENDER Diagram

#

Description

Price

1

COLLAR, SETTING

61104-422-000

$6.44

2

RUBBER B, SIDE SHELTER

64122-KV0-000

$4.20

3

GROMMET, SEAT COWL

77219-MJ6-000

$2.85

4

BAG, SERVICE BOOK This part replaces 77251-342-000.

77251-GR1-000

$4.00

5

FENDER, RR.

80100-KBG-670

Unavailable

6

COLLAR, COVER SETTING

83601-357-000

$5.06

7

BRACKET, NUMBER PLATE

84701-KBG-670

$19.77

8

NUT, FLANGE (6MM)

94050-06000

$0.59

9

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

9

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

9

WASHER, PLAIN (6MM)

94101-06800

Unavailable

10

WASHER, PLAIN (6MM)

94103-06800

$0.71

11

BOLT, FLANGE (6X22)

95701-06022-00

Unavailable

12

BOLT, FLANGE (6X25)

95701-06025-00

$1.64
