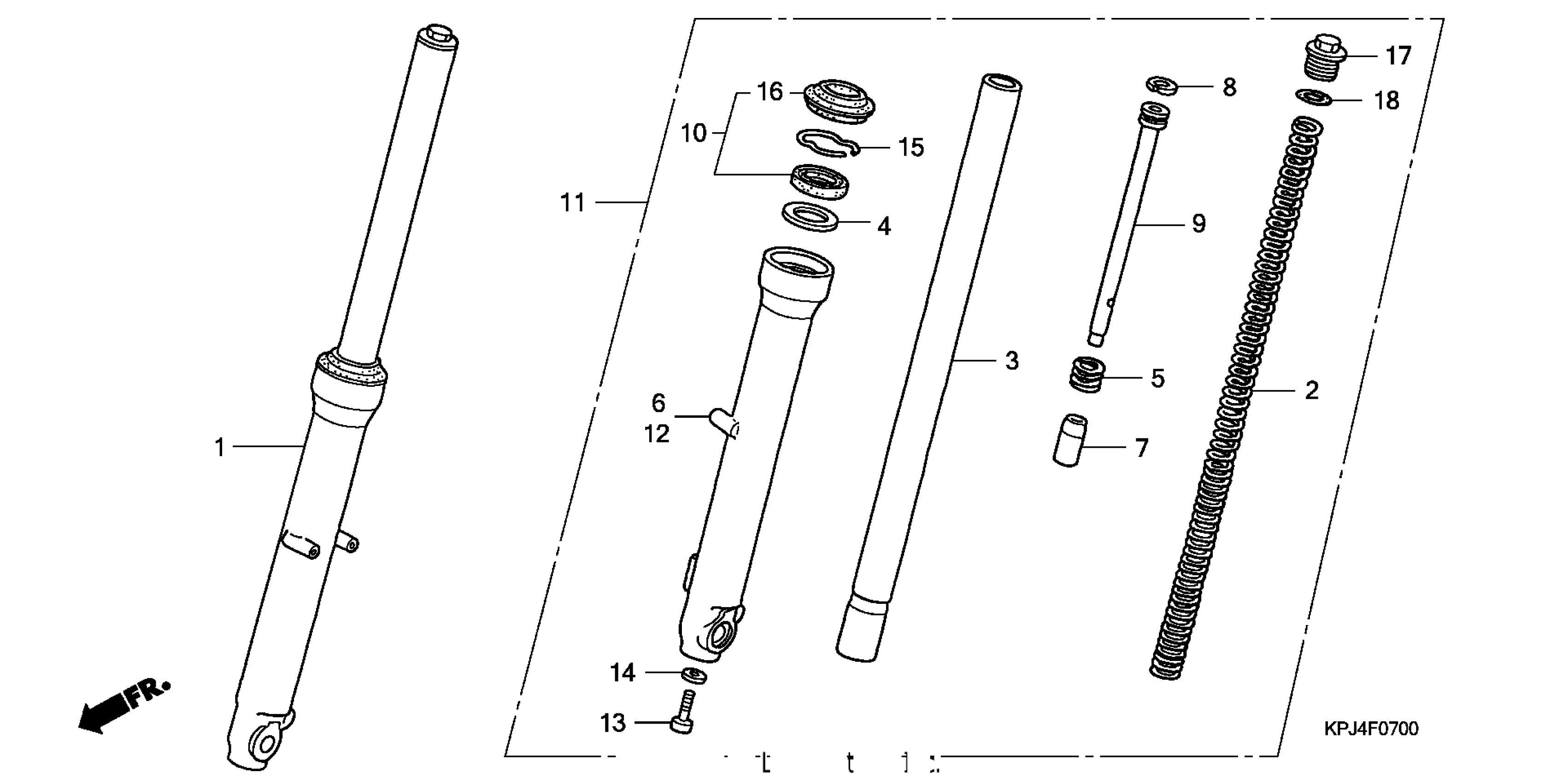

Honda CB250A (08) NIGHTHAWK, JPN, VIN# JH2MC240-8K500001 FRONT FORK Diagram

FORK ASSY., R. FR. (SHOWA) (N/A: SEE COMPONENTS)

51400-KBG-023

Unavailable

SPRING, FR. FORK (SHOWA)

51401-KBG-003

Unavailable

PIPE, FR. FORK (SHOWA)

51410-KBG-003

Unavailable

RING, BACK-UP

51412-KK4-003

$6.60

SPRING, FR. FORK REBOUND

51412-331-770

$4.51

CASE, R. (LOWER) (SHOWA)

51421-KBG-023

Unavailable

PIECE, OIL LOCK

51432-447-731

$27.42

RING, PISTON (SHOWA)

51437-KBG-003

$8.98

PIPE, SEAT (SHOWA)

51470-KBG-003

$63.62

SEAL SET, FR. FORK

51490-GAA-305

$28.76

FORK ASSY., L. FR. (SHOWA)

51500-KBG-023

Unavailable

CASE, L. (LOWER) (SHOWA)

51521-KBG-023

Unavailable

BOLT, SOCKET (8X27)

90116-383-721

$5.13

WASHER, SPECIAL (8MM)

90544-283-000

$2.87

RING, OIL SEAL STOP

90601-354-000

$5.13

DUST SEAL

91254-GAA-003

$17.00

BOLT D1, FORK

94605-27101

$8.00

O-RING (23X2.8)

94608-50000

$1.49
