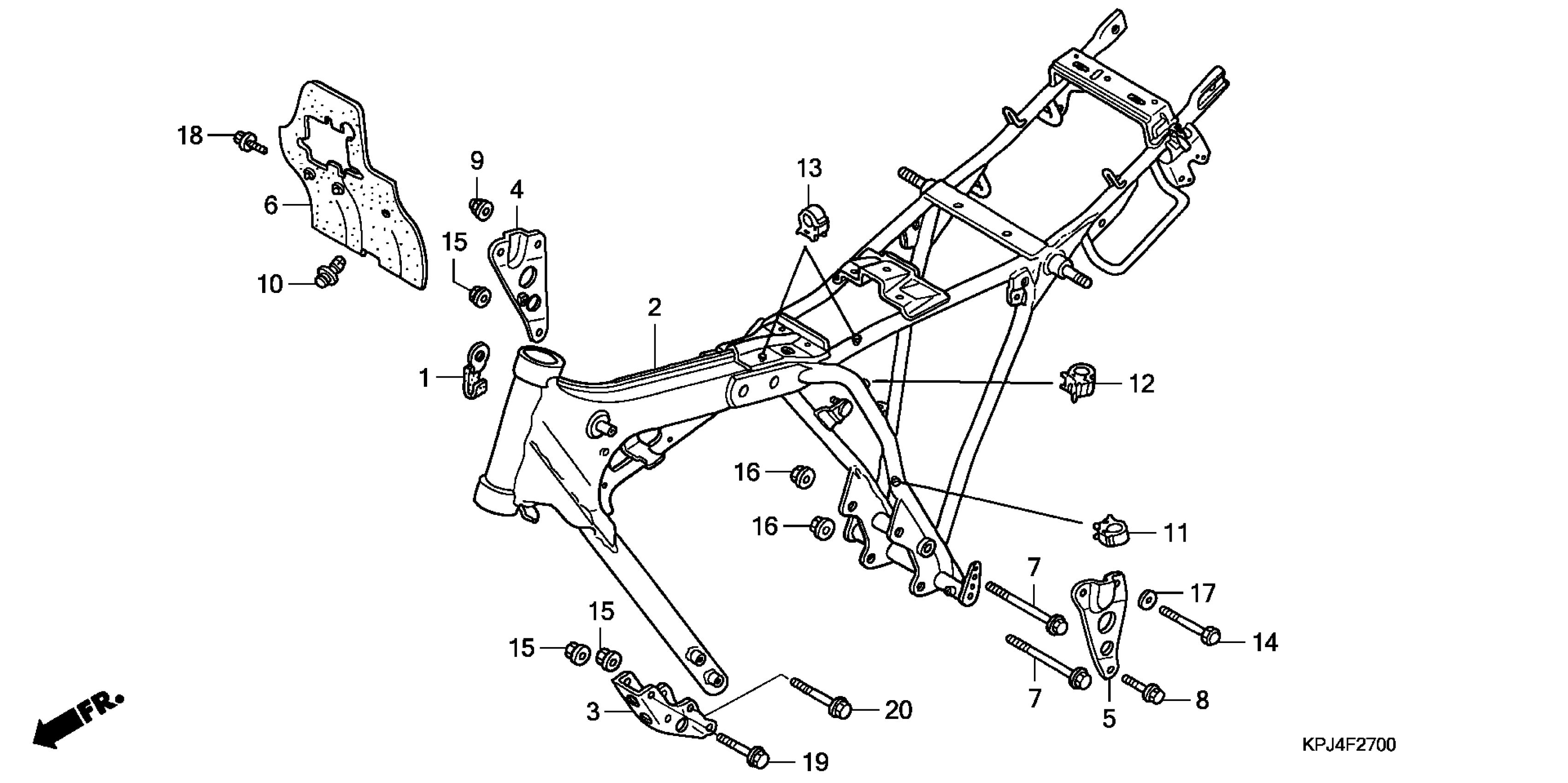

Honda CB250A (08) NIGHTHAWK, JPN, VIN# JH2MC240-8K500001 FRAME Diagram

CLIP, CABLE

45469-KBG-000

$7.05

FRAME *NH1* (BLACK) | Graphite black NHB01;

50100-KBG-000ZA

$1,673.39

PLATE, FR. ENGINE HANGER *NH1* (BLACK) | Graphite black NHB01;

50351-KB4-000ZA

Unavailable

PLATE, R. ENGINE HANGER (UPPER)

50353-KBG-000

$25.10

PLATE, L. ENGINE HANGER (UPPER)

50354-KB4-000

$15.75

GUARD, WIND

50360-KBG-000

$26.69

BOLT, FLANGE (10X110)

90019-399-010

$7.04

BOLT, FLANGE (8X37)

90118-471-000

$3.19

NUT, CAP (8MM)

90443-107-000

$2.89

CLIP, SPLASH SHIELD

90657-SB0-003

$5.26

CLIP, CABLE (10MM)

90690-GHB-641

$2.18

CLIP, CABLE (15MM)

90690-GHB-651

$2.08

CLIP, CABLE (20MM)

90690-GHB-661

$2.08

BOLT, CAP (8X75)

92501-08075-0A

Unavailable

NUT, FLANGE (8MM)

94050-08000

$1.49

NUT, FLANGE (10MM)

94050-10000

$1.59

WASHER, PLAIN (8MM)

94101-08000

$1.49

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (8X60)

95701-08060-00

$1.49

BOLT, FLANGE (8X65)

95801-08065-00

$2.75
