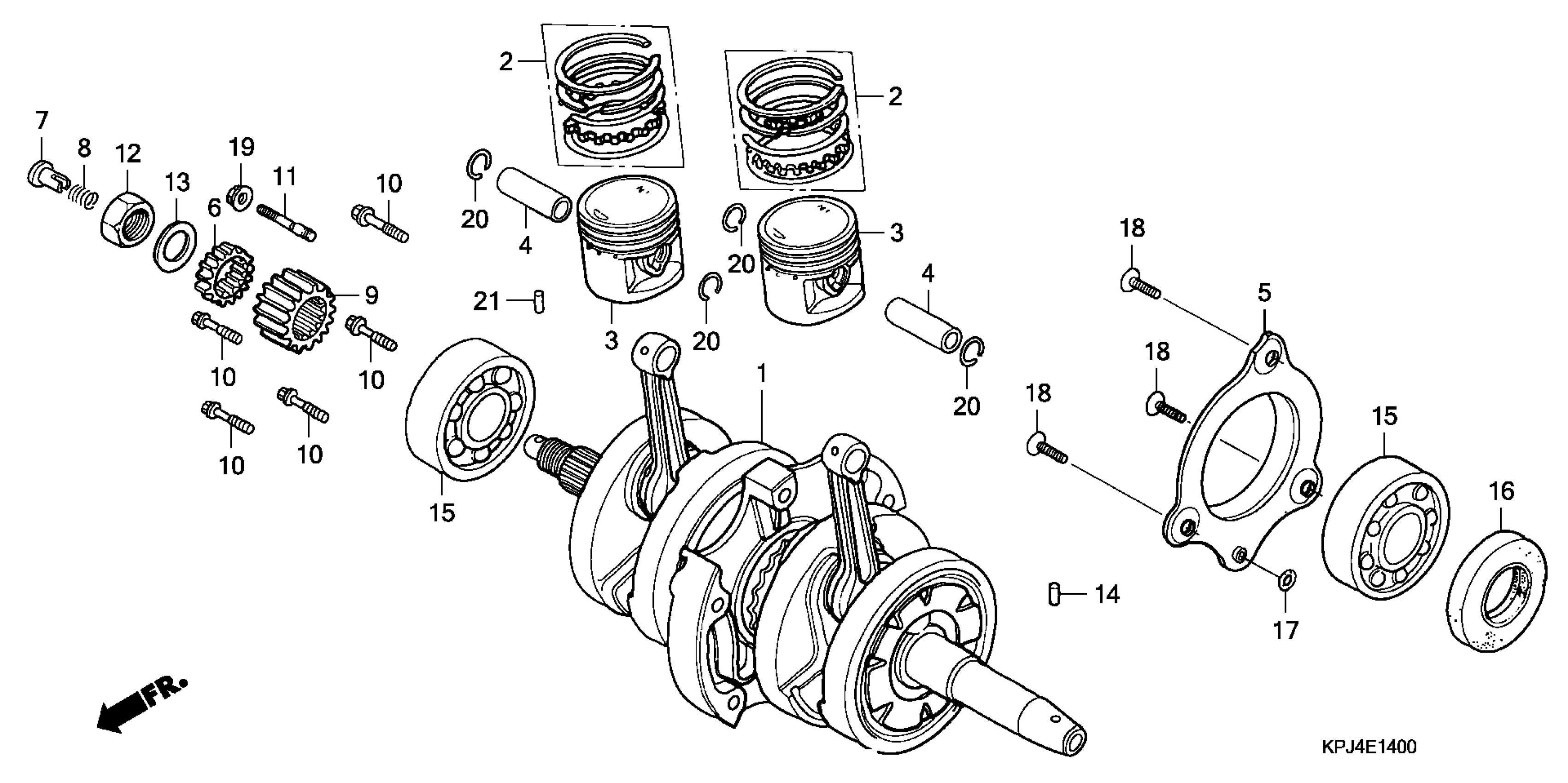

Honda CB250A (08) NIGHTHAWK, JPN, VIN# JH2MC240-8K500001 CRANKSHAFT + PISTON Diagram

CRANKSHAFT

13000-KR3-603

$828.66

RING SET, PISTON (STD)

13011-KBG-305

$47.07

RING SET, PISTON (0.25) | (Optional).

13021-KBG-305

$49.93

RING SET, PISTON (0.50) | (Optional).

13031-KBG-305

$49.93

PISTON (STD)

13101-KR3-013

$63.70

PISTON (0.25) | (Optional).

13102-KR3-315

$63.07

PISTON (0.50) | (Optional).

13103-KR3-315

$63.07

PIN, PISTON

13111-384-000

$19.77

PLATE, OIL THROUGH

13385-KB4-670

$32.30

GEAR B, OIL PUMP DRIVE (20T)

15335-KB4-670

$53.02

THROUGH, OIL

15441-149-000

$10.12

SPRING, OIL THROUGH

15447-149-000

$2.92

GEAR, PRIMARY DRIVE (19T)

23121-464-010

$69.31

BOLT, FLANGE (8X35)

90001-KBG-670

$3.16

BOLT, STUD (7X32)

90035-399-000

$2.92

NUT, HUB (16MM)

90202-567-000

$4.07

WASHER, LOCK

90401-399-000

$5.13

PIN, DOWEL (4X4.4)

90703-399-000

$4.36

BEARING, RADIAL BALL (6305) (NACHI) This part replaces 91001-KB4-671.

91001-071-003

$46.05

BEARING, RADIAL BALL (6305) (NACHI)

91001-071-003

$46.05

OIL SEAL (35X52X7) (NOK)

91201-402-015

$13.79

O-RING (6X3)

91319-323-000

$2.84

SCREW, FLAT (6X16)

93600-06016-0A

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

CLIP, PISTON PIN (15MM)

94601-15000

$1.49

ROLLER (2X13.8)

96220-20138

$1.49
