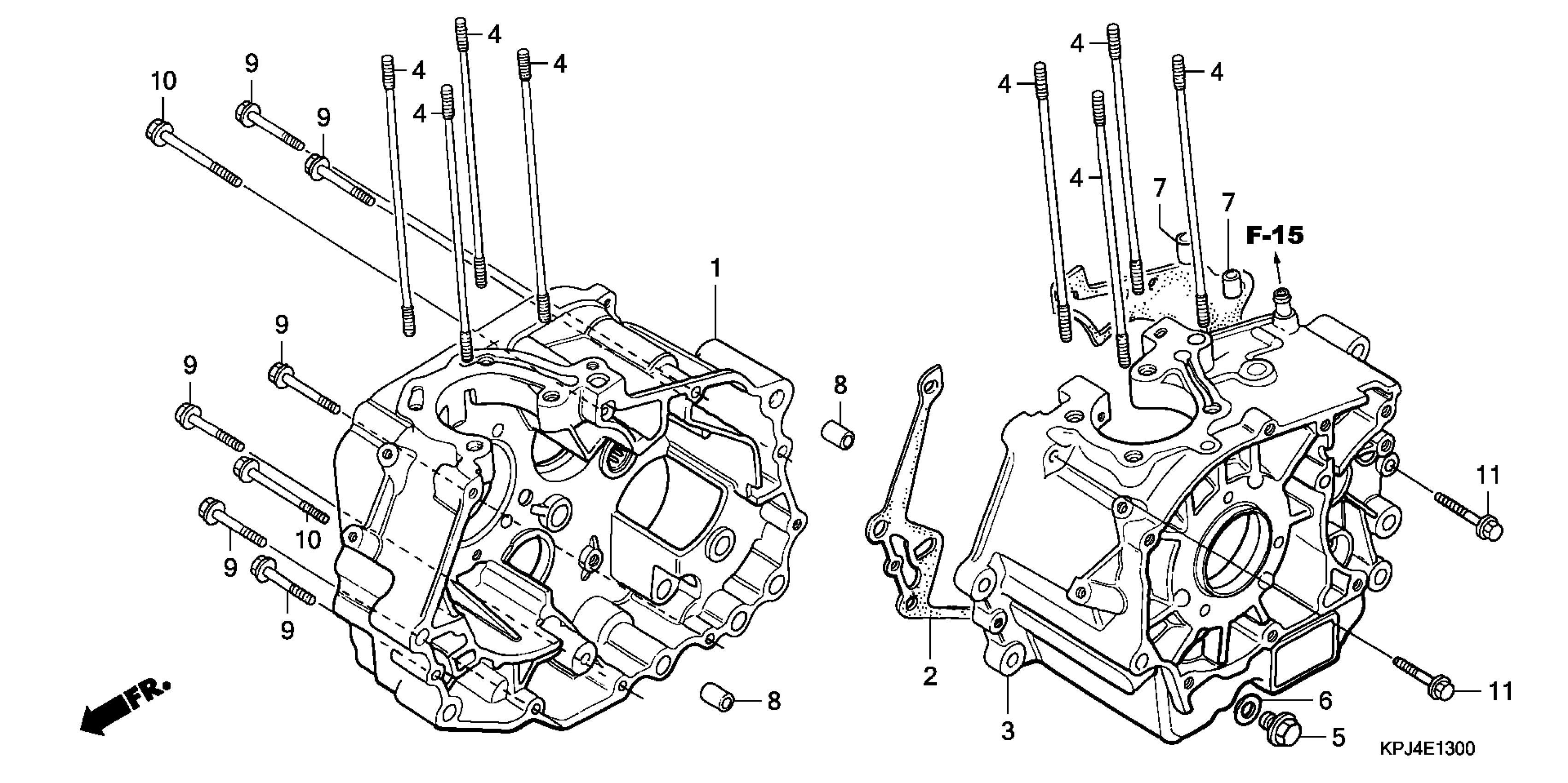

Honda CB250A (08) NIGHTHAWK, JPN, VIN# JH2MC240-8K500001 CRANKCASE Diagram

#

Description

Price

1

CRANKCASE, R.

11100-KBG-670

$488.70

2

GASKET, CRANKCASE This part replaces 11191-KBG-771.

11191-KBG-773

$23.41

3

CRANKCASE, L.

11200-KBG-670

$472.85

4

BOLT, CYLINDER STUD

90031-KB4-670

$13.19

5

BOLT, DRAIN PLUG (12MM)

92800-12000

$3.23

6

WASHER, DRAIN PLUG (12MM)

94109-12000

$1.49

7

PIN, DOWEL (8X14)

94301-08140

$2.25

8

PIN, DOWEL (12X20)

94301-12200

$2.29

9

BOLT, FLANGE (6X40)

95701-06040-00

$1.80

10

BOLT, FLANGE (6X65)

95701-06065-00

$1.51

11

BOLT, FLANGE (6X40)

96001-06040-00

$2.16
