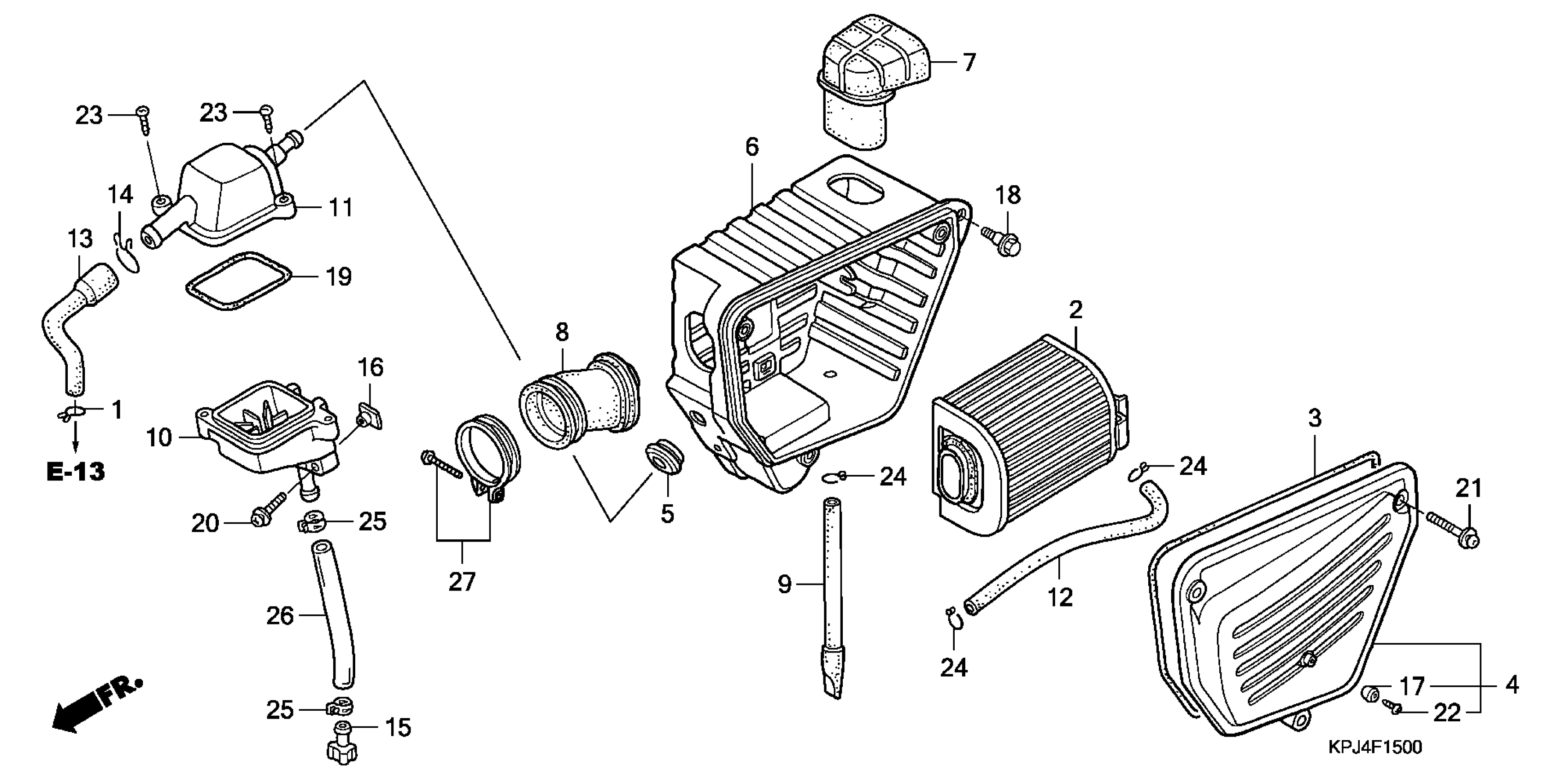

Honda CB250A (08) NIGHTHAWK, JPN, VIN# JH2MC240-8K500001 AIR CLEANER Diagram

#

Description
Price

1

CLIP, BREATHER TUBE

15772-500-010

$3.90

1

CLIP, BREATHER TUBE This part replaces 15772-500-013.

15772-500-010

$3.90

2

HOLDER, ELEMENT

17210-KBG-770

$65.44

3

SEAL, AIR CLEANER HOUSING COVER

17219-KB4-000

$9.77

4

COVER, AIR CLEANER HOUSING

17220-KBG-000

$54.43

4

COVER, AIR CLEANER HOUSING This part replaces 17220-KB4-000.

17220-KBG-000

$54.43

5

GROMMET, TUBE

17225-415-300

$4.75

6

HOUSING, AIR CLEANER

17230-KB4-000

$158.57

7

DUCT, AIR CLEANER

17240-KB4-000

$32.52

8

TUBE, AIR CLEANER CONNECTING

17253-KBG-300

$29.13

9

TUBE, DRAIN

17336-KB4-000

$10.82

10

CHAMBER, BREATHER

17361-471-760

$15.31

11

COVER, BREATHER CHAMBER

17362-KC2-650

$12.95

12

TUBE, BREATHER JOINT

17365-KBG-000

$13.23

13

TUBE, BREATHER

17368-KC2-650

$4.76

14

CLIP, BREATHER TUBE

17369-KB4-670

$5.41

15

PLUG, BREATHER TUBE

17370-419-700

$3.74

16

NUT, SPECIAL (6X7)

61304-958-003

$3.24

17

BOSS, SIDE COVER

83601-ML7-000

$4.56

18

BOLT, FLANGE (6MM)

90111-162-000

$2.89

19

SEAL, BREATHER CHAMBER

91305-KB4-670

$5.33

20

SCREW-WASHER (6X28)

93891-06028-07

$1.49

21

SCREW-WASHER (6X35)

93891-06035-07

$1.49

22

SCREW, TAPPING (4X10)

93901-24210

$1.49

23

SCREW, TAPPING (5X20)

93901-35480

$1.49

24

CLIP, TUBE (B12.5)

95002-02130

$1.49

25

CLAMP, TUBE (D10.5)

95002-41050-08

$2.34

26

BULK HOSE, VINYL (8X12X8000) (8X12X290)

95003-23008-60M

Unavailable

27

BAND, AIR CLEANER CONNECTING TUBE (56)

95018-56250

$5.42
