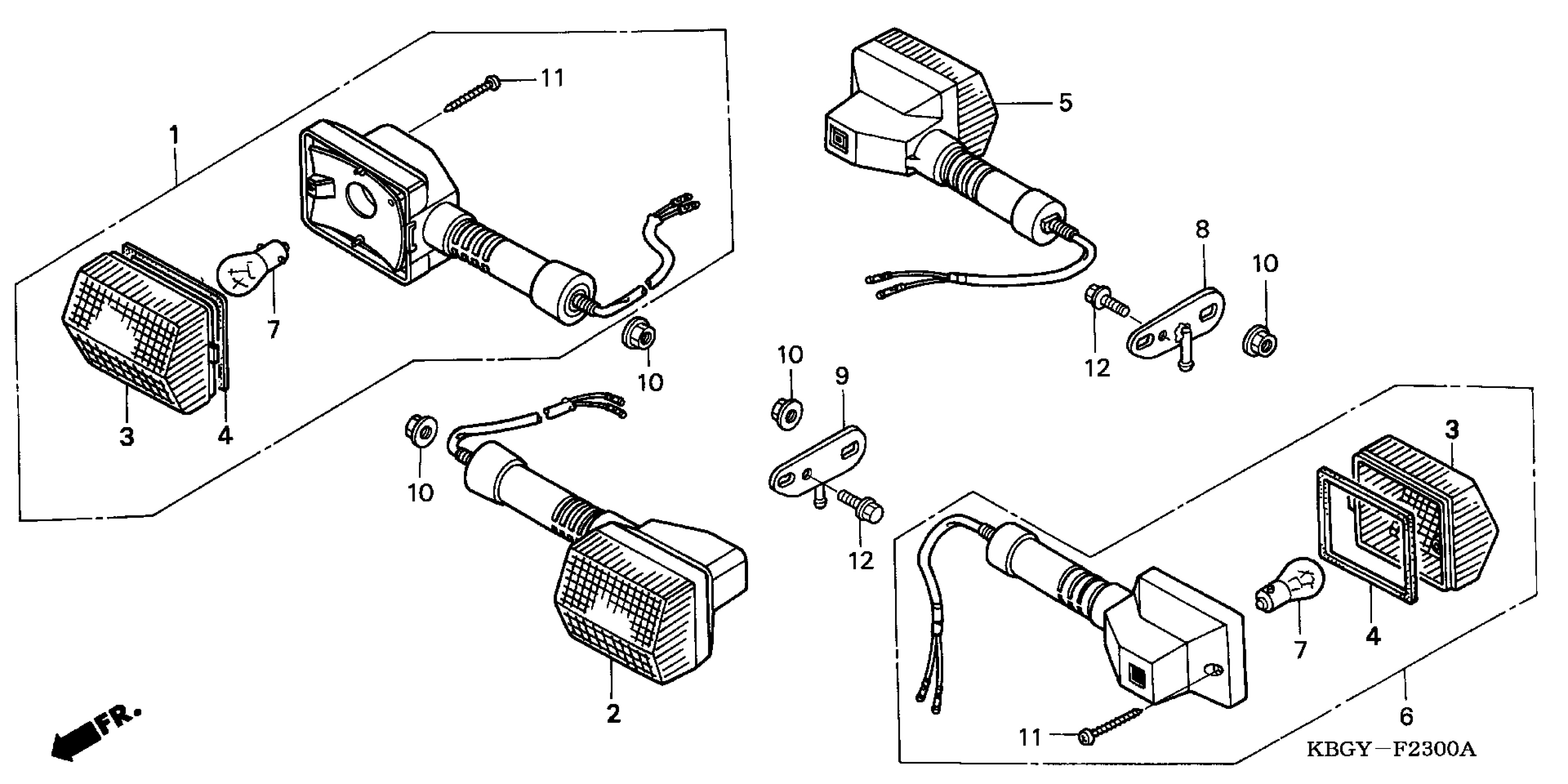

Honda CB250A (07) NIGHTHAWK, JPN, VIN# JH2MC240-7K400001 TURN SIGNAL Diagram

#

Description

Price

1

TURN SIGNAL ASSY., R. FR. (12V 23W)

33300-KC1-920

Unavailable

2

TURN SIGNAL ASSY., L. FR. (12V 23W)

33350-KC1-920

Unavailable

3

LENS, TURN SIGNAL (COO) This part replaces 33402-MG2-003.

33402-MGW-305

$9.44

4

GASKET, LENS

33407-MG2-003

$5.54

5

TURN SIGNAL ASSY., R. RR. (12V 23W)

33500-KBG-671

Unavailable

6

TURN SIGNAL ASSY., L. RR. (12V 23W)

33550-KBG-671

Unavailable

7

BULB, TURN SIGNAL (12V 23W) (STANLEY)

34905-268-671

$2.72

8

STAY, R. RR. TURN SIGNAL

50186-KBG-000

Unavailable

9

STAY, L. RR. TURN SIGNAL

50187-KBG-000

Unavailable

10

NUT, FLANGE (10MM)

90308-KE1-000

$5.03

11

SCREW, TAPPING (3X25)

91901-MG2-003

$2.46

12

BOLT, FLANGE (8X14)

95701-08014-07

$0.91
