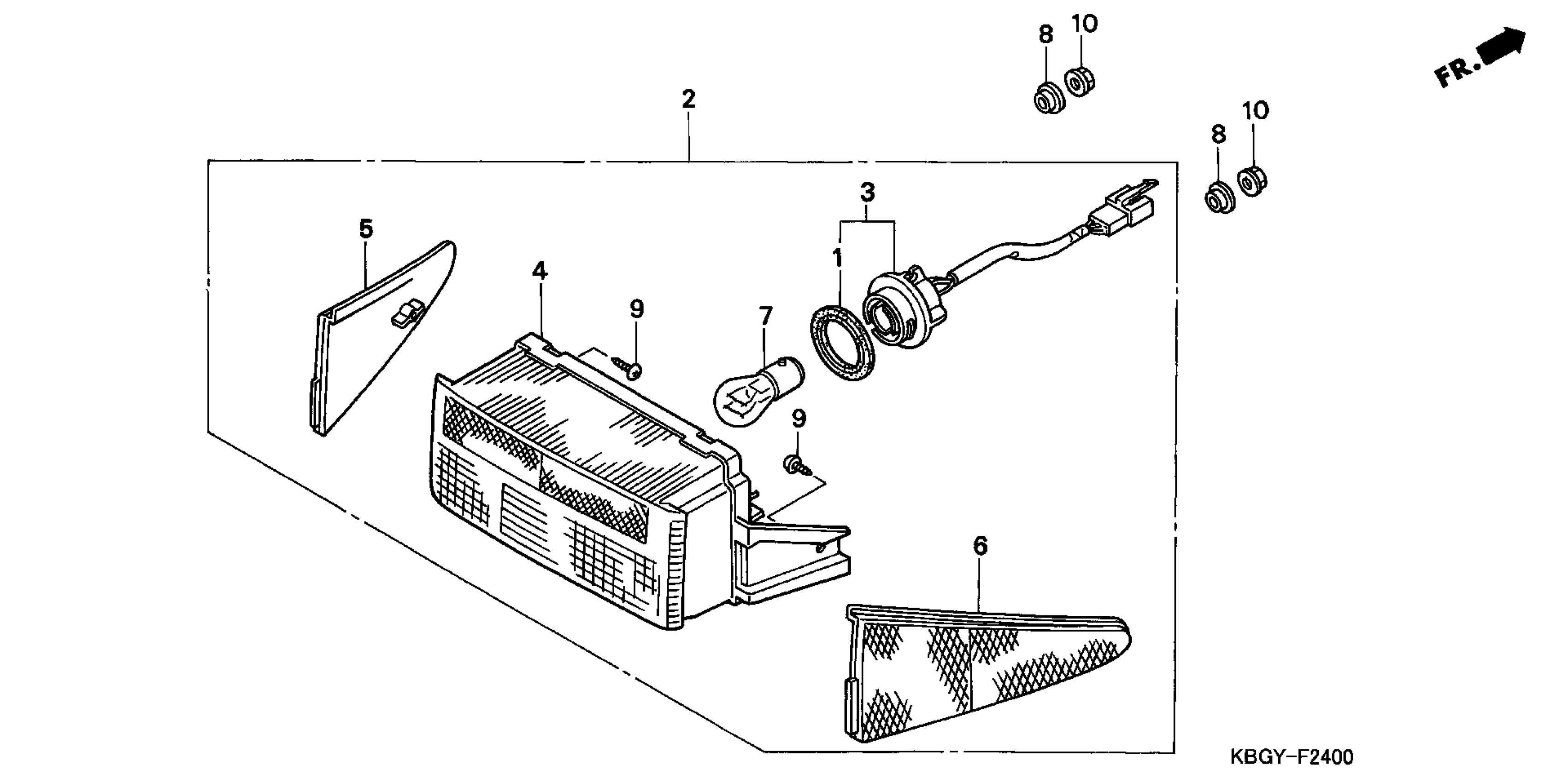

Honda CB250A (07) NIGHTHAWK, JPN, VIN# JH2MC240-7K400001 TAILLIGHT Diagram

GASKET, SEAL

33518-SA2-003

$4.38

TAILLIGHT UNIT (12V 32/3CP)

33701-KBG-672

Unavailable

WIRE, TAILLIGHT

33705-KBG-671

Unavailable

TAILLIGHT SUB-ASSY.

33706-ME5-671

$189.25

REFLECTOR, L. RR. REFLEX

33743-ME5-671

Unavailable

REFLECTOR, R. RR. REFLEX

33742-ME5-671

$22.31

BULB, TAILLIGHT (12V 32/3CP) (STANLEY)

34906-425-771

$4.40

COLLAR, FR. FENDER

61105-MA3-000

$3.80

SCREW, TAPPING (5X12)

93903-35280

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49
