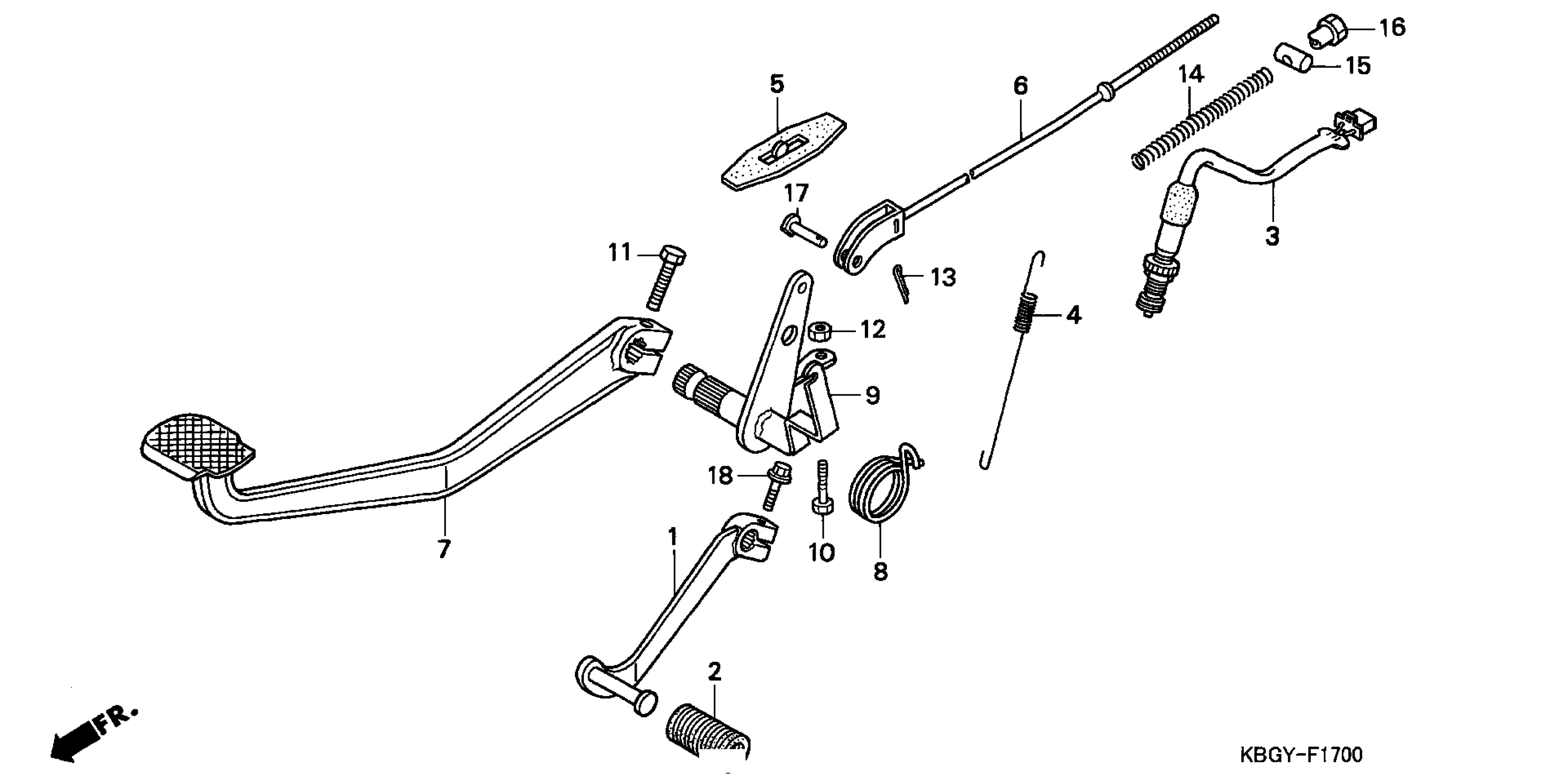

Honda CB250A (07) NIGHTHAWK, JPN, VIN# JH2MC240-7K400001 PEDAL Diagram

PEDAL, GEARSHIFT

24701-KBG-000

$42.04

RUBBER, GEARSHIFT PEDAL

24781-KR3-770

$3.39

SWITCH ASSY., RR. STOP This part replaces 35350-GW6-000.

35350-GW6-003

$21.75

SWITCH ASSY., RR. STOP

35350-GW6-003

$21.75

SPRING, STOP SWITCH This part replaces 35357-MF8-770.

35357-MF8-000

$5.51

COVER, RR. BRAKE MIDDLE ARM

43411-KC1-000

$6.90

ROD, RR. BRAKE

43451-KBG-000

Unavailable

PEDAL, RR. BRAKE

46500-KBG-000

$86.89

SPRING, BRAKE PEDAL

46514-KBG-000

$10.59

SHAFT, RR. BRAKE PIVOT

46515-KBG-000

$77.33

BOLT, HEX. (6X25)

90151-KR8-000

$3.74

BOLT, HEX. (8X28)

92201-08028-0G

Unavailable

NUT, HEX. (6MM)

94002-06000-0S

$1.49

PIN, SPLIT (2.0X12)

94201-20120

$1.49

SPRING A, BRAKE ROD

95014-73100

$1.49

SPRING A, BRAKE ROD This part replaces 95014-73300.

95014-73100

$1.49

JOINT B, BRAKE ARM

95015-32001

$1.49

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.83

PIN C, JOINT

95015-53000

$3.06

BOLT, FLANGE (6X20)

95701-06020-07

$1.62
