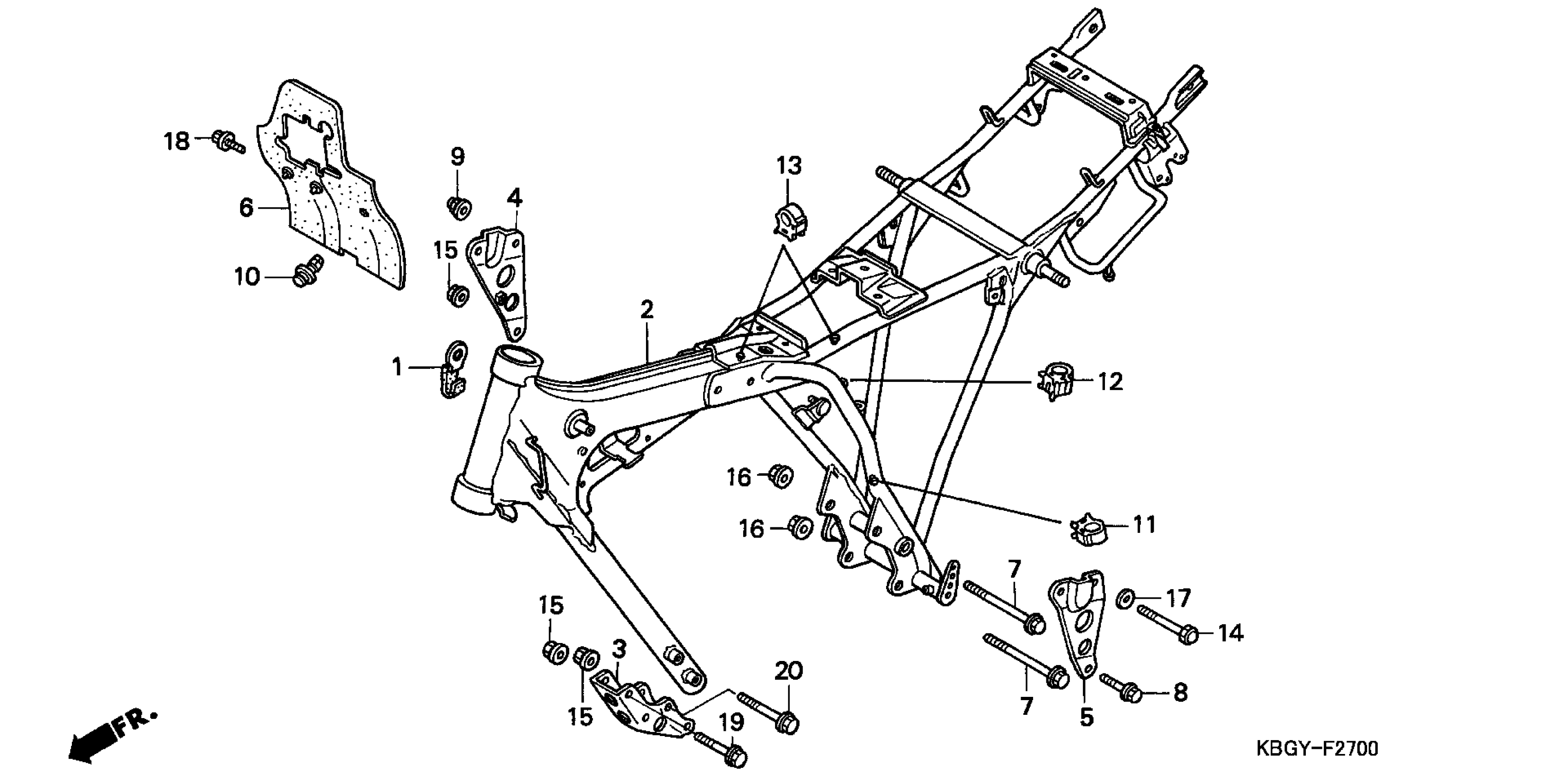

Honda CB250A (07) NIGHTHAWK, JPN, VIN# JH2MC240-7K400001 FRAME Diagram

#

Description
Price

1

CLIP, CABLE

45469-KBG-000

$6.51

2

FRAME *NH1* (BLACK)

50100-KBG-000ZA

$1,501.13

3

PLATE, FR. ENGINE HANGER *NH1* (BLACK)

50351-KB4-000ZA

$39.53

4

PLATE, R. ENGINE HANGER (UPPER)

50353-KBG-000

$23.19

5

PLATE, L. ENGINE HANGER (UPPER)

50354-KB4-000

$14.56

6

GUARD, WIND

50360-KBG-000

$24.66

7

BOLT, FLANGE (10X110)

90019-399-010

$6.72

8

BOLT, FLANGE (8X37)

90118-471-000

$3.04

9

NUT, CAP (8MM)

90443-107-000

$2.66

10

CLIP, SPLASH SHIELD

90657-SB0-003

$5.04

11

CLIP, CABLE (10MM)

90690-GHB-641

$2.01

12

CLIP, CABLE (15MM)

90690-GHB-651

$2.01

13

CLIP, CABLE (20MM)

90690-GHB-661

$2.01

14

BOLT, CAP (8X75)

92501-08075-0A

Unavailable

15

NUT, FLANGE (8MM)

94050-08000

$0.87

16

NUT, FLANGE (10MM)

94050-10000

$1.66

17

WASHER, PLAIN (8MM)

94101-08000

Unavailable

18

BOLT, FLANGE (6X12)

95701-06012-00

$2.03

19

BOLT, FLANGE (8X60)

95701-08060-00

$1.40

20

BOLT, FLANGE (8X65)

95801-08065-00

$3.91
