Description

Price

1

WASHER, LOCK (16MM)

15451-KR3-601

$4.70

2

CLUTCH OUTER

22100-KB4-670

$245.25

3

GUIDE, CLUTCH (OUTER)

22116-KB4-671

$22.74

4

CENTER, CLUTCH

22121-KR3-601

$84.78

5

SEAT, JUDDER SPRING

22125-KB4-670

$9.41

6

DISK, CLUTCH FRICTION This part replaces 22201-KBG-900.

22201-KBG-A00

$15.88

7

DISK, CLUTCH FRICTION

22201-KBW-900

$13.87

8

PLATE, CLUTCH

22321-KE8-000

$11.41

9

PLATE, CLUTCH PRESSURE

22350-KR3-600

$43.17

10

PLATE, CLUTCH LIFTER

22361-437-000

$13.31

11

COLLAR, CLUTCH LIFTER

22362-KR3-600

$21.78

12

SPRING, CLUTCH This part replaces 22401-KB4-670.

22401-KT0-000

$4.74

12

SPRING, CLUTCH

22401-KT0-000

$4.74

13

SPRING, JUDDER

22402-KB4-670

$28.01

14

PIN, CLUTCH LIFTER

22820-KK0-000

$5.41

15

BOLT, SPECIAL FLANGE (6X22)

90050-357-000

$4.20

16

NUT, LOCK (16MM)

90231-KB5-720

$4.36

17

WASHER, THRUST (12MM) (TOYO)

90452-147-003

$3.37

18

WASHER, THRUST (20MM)

90459-KB4-670

$3.90

19

WASHER B, SPLINE (20MM)

90461-107-000

$4.38

20

BEARING, NEEDLE (12MM) (NTN)

91001-147-003

$11.31

21

CLIP, NEEDLE THRUST BEARING (12MM)

91012-KF0-000

$2.80

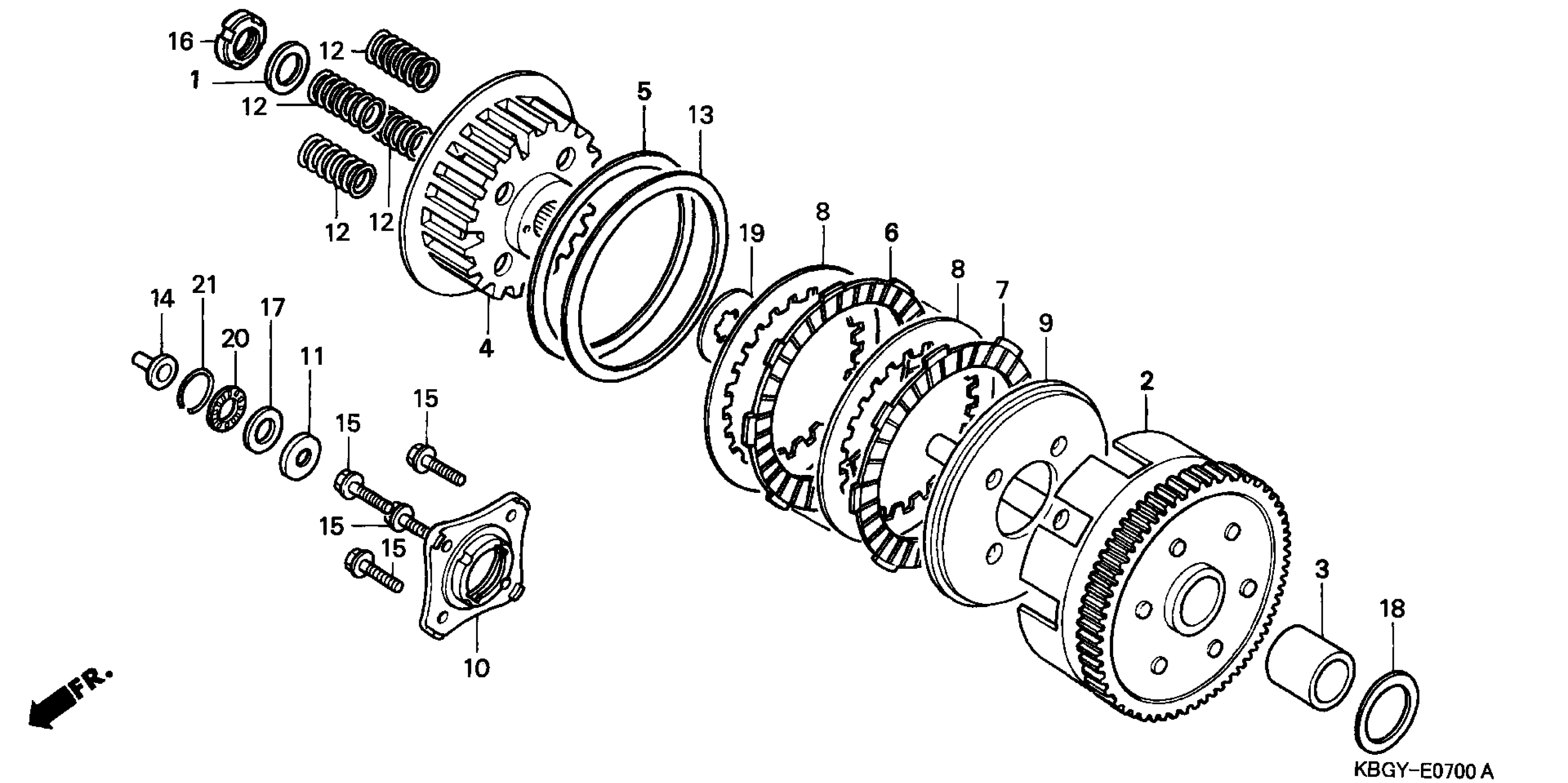

Honda CB250A (07) NIGHTHAWK, JPN, VIN# JH2MC240-7K400001 CLUTCH Diagram
