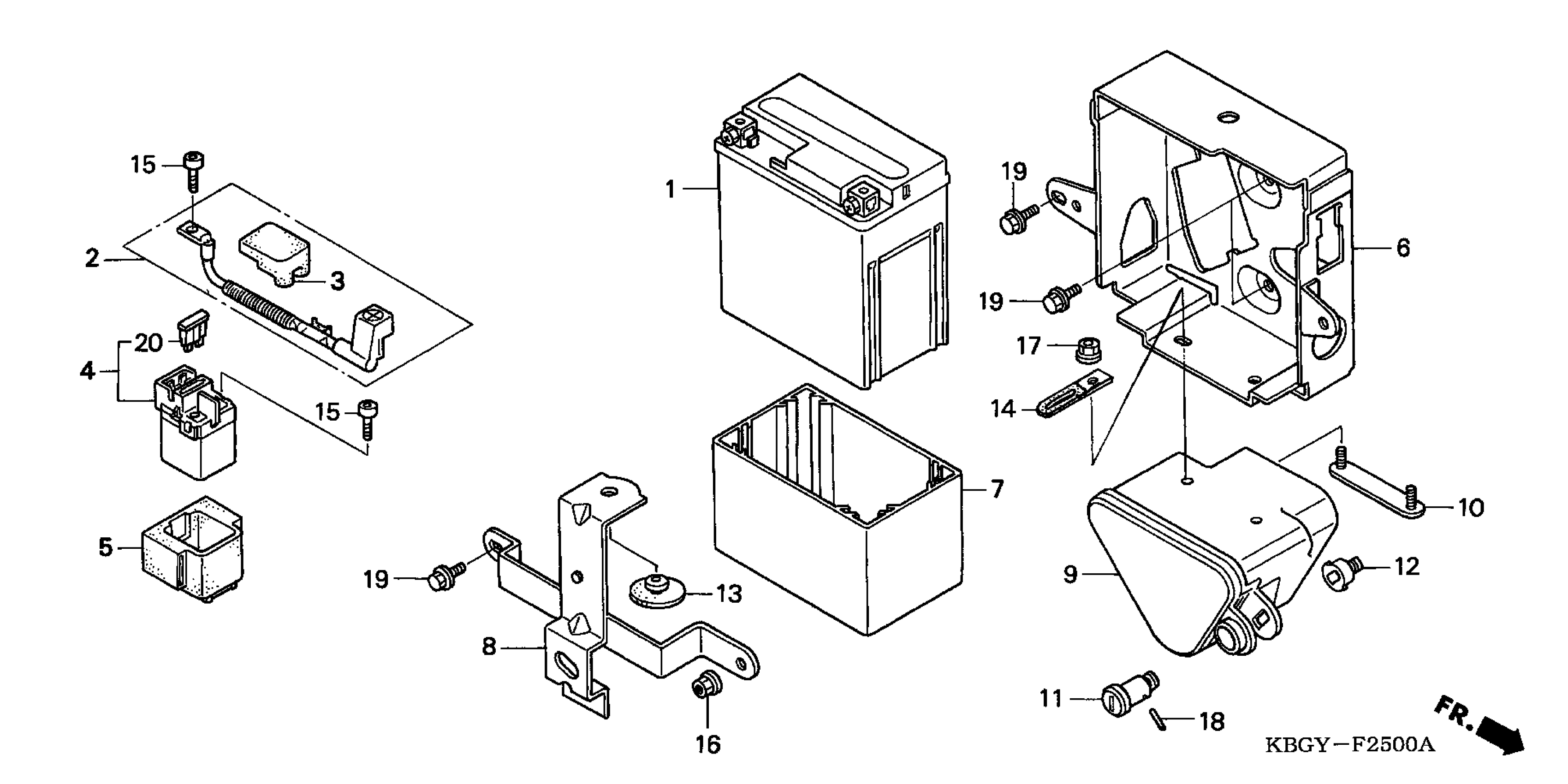

Honda CB250A (07) NIGHTHAWK, JPN, VIN# JH2MC240-7K400001 BATTERY Diagram

#

Description
Price

1

BATTERY (YTX7L-BS) (YUASA) (MSDS) This part replaces 31500-KW3-676.

31500-KW3-676AH

$84.92

1

BATTERY (YTX7L-BS) (YUASA) (MSDS)

31500-KW3-676AH

$84.92

2

CABLE This part replaces 32401-KBG-000.

32401-KBG-010

$30.67

3

COVER, STARTER MAGNETIC TERMINAL This part replaces 32406-KAZ-000.

32406-KAZ-010

$6.56

3

COVER, STARTER MAGNETIC TERMINAL

32406-KAZ-010

$6.56

4

SWITCH ASSY., STARTER MAGNETIC This part replaces 35850-KR3-870.

35850-KR3-871

$107.02

4

SWITCH ASSY., STARTER MAGNETIC

35850-KR3-871

$107.02

5

RUBBER, SHOCK

35856-KBG-007

$10.43

6

TRAY, BATTERY

50325-KBG-000

$155.23

7

CUSHION, BATTERY

50326-KR3-870

$31.36

8

BAND, BATTERY TRAY

50327-KBG-000

$26.20

9

BOX, TOOL

83501-KB4-000

$38.66

10

PLATE, TOOL BOX SETTING

83503-471-000

$7.39

11

BODY, KEY

83507-438-000

Unavailable

12

STOPPER, KEY BODY

83508-KBG-000

$2.90

12

STOPPER, KEY BODY This part replaces 83508-438-000.

83508-KBG-000

$2.90

13

RUBBER, BATTERY BOX

83618-323-000

$2.47

14

CLIP, TUBE

90010-GE0-710

$2.08

15

BOLT, SOCKET (5X9)

90111-MR5-000

$2.61

16

NUT, FLANGE (6MM)

94050-06070

$1.49

17

NUT, FLANGE (6MM)

94050-06080

$1.49

18

PIN, SPRING (2X14)

94305-20141

$1.49

19

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

20

FUSE, BLADE (20A)

98200-32000

$1.49
